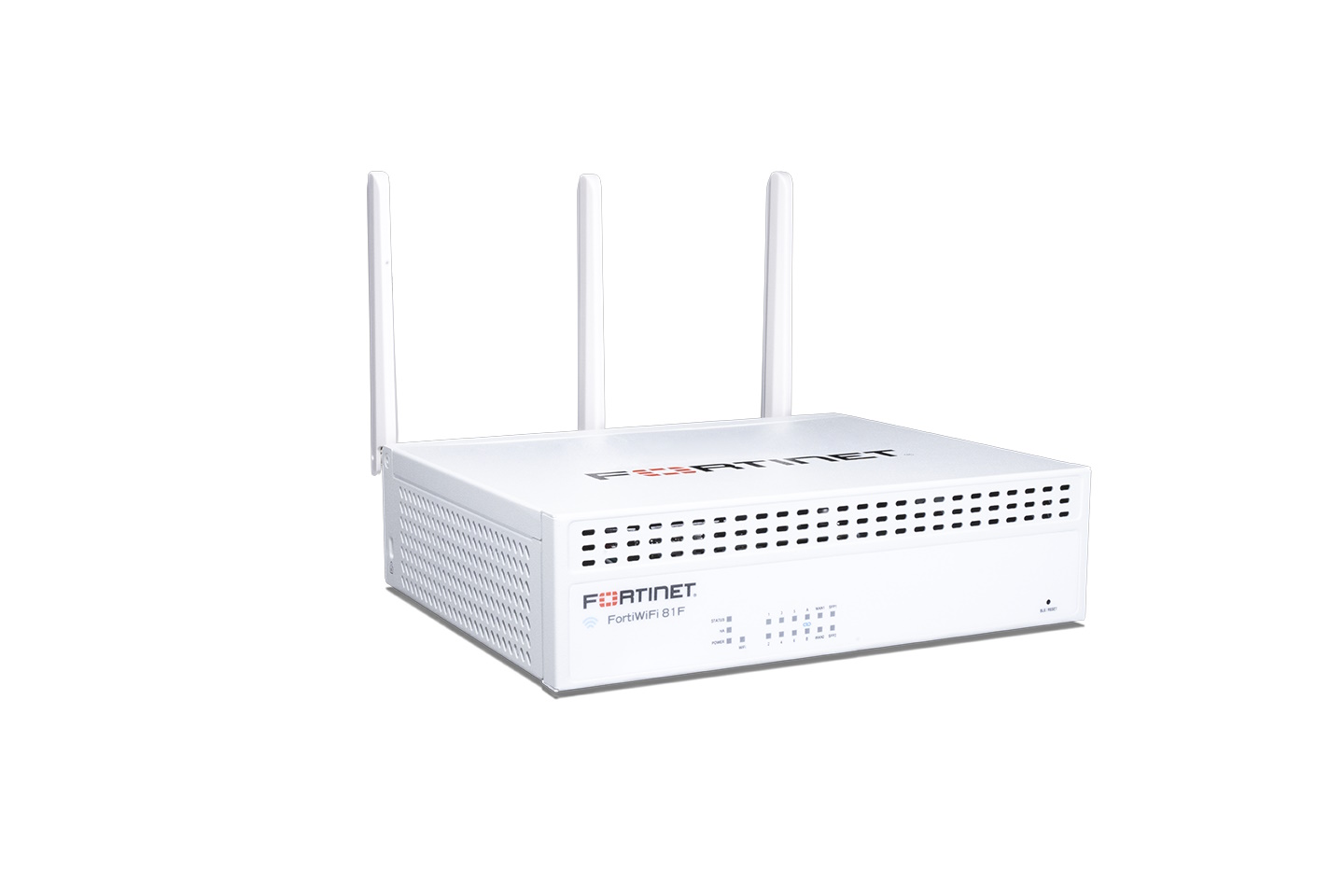

FortiWiFi-80F-2R Hardware plus 5 Year Hardware plus FortiCare Premium and FortiGuard Enterprise Protection

Tilgjengelighet: Ikke på lager
Sku: FWF-80F-2R-S-BDL-809-60
98 132,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The FortiGate FortiWiFi 80F series provides an application-centric, scalable, and secure SDWAN solution in a compact, fanless, desktop form factor for enterprise branch offices and midsized businesses with integrated WiFi-6 (802.11ax). It protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple and easy-to-deploy solution. Fortinet's Security-Driven Networking approach provides tight integration of the network to the new generation of security.

High capacity for virtual domains

The FortiWiFi 80F-2R supports up to 500 virtual domains, allowing for segmented network configurations suitable for varying operational requirements.

Efficient concurrent session management

With the ability to handle up to 1500000 concurrent TCP sessions, the device ensures high volume data processing without compromising network stability.

Versatile environmental adaptability

The device operates efficiently from 0°C to 40°C and supports humidity levels of 10 to 90%, making it suitable for a wide range of environments.

Advanced SSL inspection capabilities

This model provides SSL inspection concurrent sessions, ensuring encrypted traffic is monitored effectively while maintaining security.

Robust power efficiency

With an operational power consumption of 22.9 watts, the FortiWiFi 80F-2R offers a power-efficient solution without compromising performance.

Generelt
EnhetstypeSikkerhetsapparat
Tjenestebundter5 år FortiCare Premium Support + 5 år FortiGuard Enterprise Protection
Bredde21.6 cm
Dybde17.8 cm
Høyde6 cm
Vekt1.5 kg
Prosessor / Minne / Lager
Installerte prosessorer1 x Fortinet FortiASIC SOC4
Nettverkstilknytning
ProduktformfaktorStasjonær / vegg / stativmonterbar
OverføringsteknologiTrådløs, kablet
DatakjedeprotokollEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth LE, IEEE 802.11ax (Wi-Fi 6)
Nettverks-/transportprotokollTCP/IP, UDP/IP, IPSec, DNS, HTTP, HTTPs, IPv4, IPv6
Protokoll for fjernstyrt administrasjonHTTP, HTTPS
Frekvensbånd2.4 GHz, 5 GHz
YtelseIPS-gjennomløp (firmatraffikkblanding): 1,4 Gbps
NGFW-gjennomløp (bedriftstrafikkmiks): 1 Gbps
Trusselbeskyttelsesgjennomløp (bedriftstrafikkmiks): 900 Mbps
Brannveggjennomløp (1518-byte UDP): 10 Gbps
Brannveggjennomløp (512-byte UDP): 10 Gbps
Brannveggjennomløp (64-byte UDP): 7 Gbps
Brannvegglatens (64-byte UDP): 3.23 µs
Brannmurgjennomløp: 10.5 Mpps
VPN-gjennomstrømning (512-bit IPSec): 6,5 Gbps
VPN-gjennomløp (SSL): 950 Mbps
SSL inspeksjonsprosessering: 715 Mbps
Applikasjonskontroll-gjennomløp: 1,8 Gbps
CAPWAP-gjennomløp: 9 Gbps
Maks. datahastighet (2,4 GHz): 574 Mbps
Maks. datahastighet (5 GHz): 1201 Mbps
KapasitetSamtidige TCP-økter: 1500000
Nye TCP-økter per sekund: 45000
Brannmurspolitikk: 5000
Gateway-til-gateway IPSec VPN-tunneller: 200
Klient-til-gateway IPSec VPN-tunneller: 2500
Samtidige SSL VPN-brukere: 200
SSL inspeksjons-CPS: 700
SSL-inspeksjon av samtidige økter: 100000
Virtuelle domener: 10
Maksimum virtuelle domener: 10
Antall FortiSwitches: 24
Antall FortiAP-enheter: 96
Antall FortiAP-enheter (tunnelmodus): 48
Antall FortiToken-enheter: 500
StatusindikatorerStrøm, status, WAN, SFP, HA, Wi-Fi, 3G/4G
EgenskaperVPN-støtte, Trusted Platform Module (TPM), CAPWAP-støtte, Intrusion Detection and Prevention (IDP), SSL-kontroll, 2x2 MIMO-teknologi, støtte for SD-WAN, Zero Trust Network Access (ZTNA), AI-drevet
KrypteringsalgoritmeSSL, 256-bit AES, 256-bits SHA, TLS 1.3
Tilpassede standarderIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
Ekspansjon / Tilkoplinger
Grensesnitt2 x 1000Base-T - RJ-45/SFP (mini-GBIC)
2 x 1000Base-T - RJ-45 (WAN)
6 x 1000Base-T - RJ-45
2 x 1000Base-T (FortiLink) - RJ-45
1 x USB 3.0 - Type A
1 x konsoll - RJ-45
3 x antenne - SMA
Diverse
Tilpassede standarderUL, VCCI, BSMI, cUL, CB, FCC, ICES, RCM, USGv6
Strømforsyning
StrømenhetEkstern strømadapter
Installert antall1
Max støttet Ant2
StrømforsyningsredundansValgfritt (opsjon)
Påkrevd nettspenningAC 115/230 V (50/60 Hz)
Strømforbruk ved drift22.9 watt
Programvare / Systemkrav
OS MedfølgerFortiOS
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur40 °C
Driftsfuktighet10 - 90% (ikke-kondenserende)
