Sorry-dette produktet er ikke lenger tilgjengelig

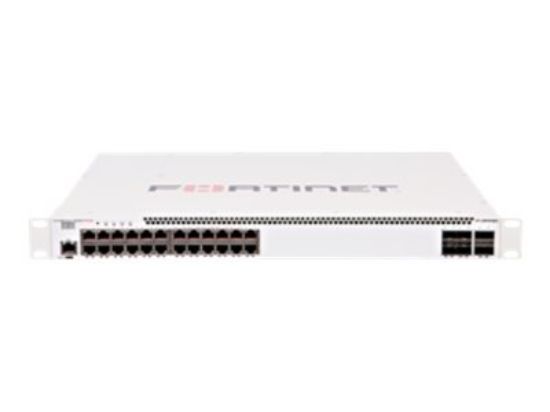

Fortinet FortiSwitch 524D-FPOE - Switch - Styrt - 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ - rackmonterbar - PoE+ (400 W)

Tilgjengelighet: Ikke på lager
Sku: FS-524D-FPOE
53 404,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

FortiSwitch Secure Access switches deliver outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices. Tightly integrated into the FortiGate Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.

When a device connects to a Secure Access Switch Ethernet port, it is first identified, and then the user is authenticated. Once authenticated, access to the network is granted based on pre-defined security policy from the FortiGate, ensuring secure network access across the enterprise, without impacting the user experience.

  • Secure Access switches suitable for wire closet and desktop installations
  • Devices are identified and users authenticated prior to being granted access to the network
  • Centralized security management and reporting from FortiGate interface
  • Multiple ports in a compact 1RU form factor
  • Power over Ethernet capable, including PoE+
  • Ideal for converged network environments, enabling voice, data and wireless traffic to be delivered across a single network
Generelt
EnhetstypeSwitch - 24 porter - Styrt
UtførelseRackmonterbar 1U
UndertypeGigabit Ethernet
Porter24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
Strøm via Ethernet (PoE)PoE+
PoE-budsjett400 W
YtelseGjennomløpssvitsjing: 288 Gbps
Videresendingsytelse: 428 Mpps
Latens: 2 µs
KapasitetVirtuelle grensesnitt (VLAN-er): 4000
Maks aggregeringsgrupper: 15
Mac Adress Tabellstørrelse96 K oppføringer
JumborammestøtteJa
RutingprotokollOSPF, BGP
Protokoll for fjernstyrt administrasjonSNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Autentifikasjons MetodeRADIUS
EgenskaperFlytkontroll, strøm via Ethernet (PoE), portspeiling, SNTP-støtte, Spanning Tree Protocol (STP)-støtte, Rapid Spanning Tree Protocol (RSTP)-støtte, Multiple Spanning Tree Protocol (MSTP)-støtte, Jumbo Frames-støtte, LLDP-støtte, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), merket VLAN, 4 MB-pakkebuffer
Tilpassede standarderIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
RAM2 GB
Flash-minne128 MB
StatusindikatorerStrøm, PoE, lenke/aktivitet
Ekspansjon / Tilkoplinger
Grensesnitt24 x 1000Base-T RJ-45 PoE+
4 x 10 Gbit-LAN SFP+
1 x konsoll RJ-45
1 x styring (Gigabit LAN) RJ-45
2 x 40 Gbit-LAN QSFP+
Strømforsyning
StrømenhetIntern strømforsyning
Påkrevd nettspenningAC 120/230 V (50/60 Hz)
Strømforbruk ved drift579 watt
Diverse
MTBF10 år
Tilpassede standarderUL, VCCI, C-Tick, cUL, CB, RoHS, FCC Part 15 A
Mål og vekt
Bredde44 cm
Dybde31 cm
Høyde4.4 cm
Vekt7.14 kg
Fabrikantgaranti
Service og støtteBegrenset garanti - levetid
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur50 °C
Driftsfuktighet10 - 90% (ikke-kondenserende)
Min. oppbevaringstemperatur-20 °C
Maks. oppbevaringstemperatur70 °C
