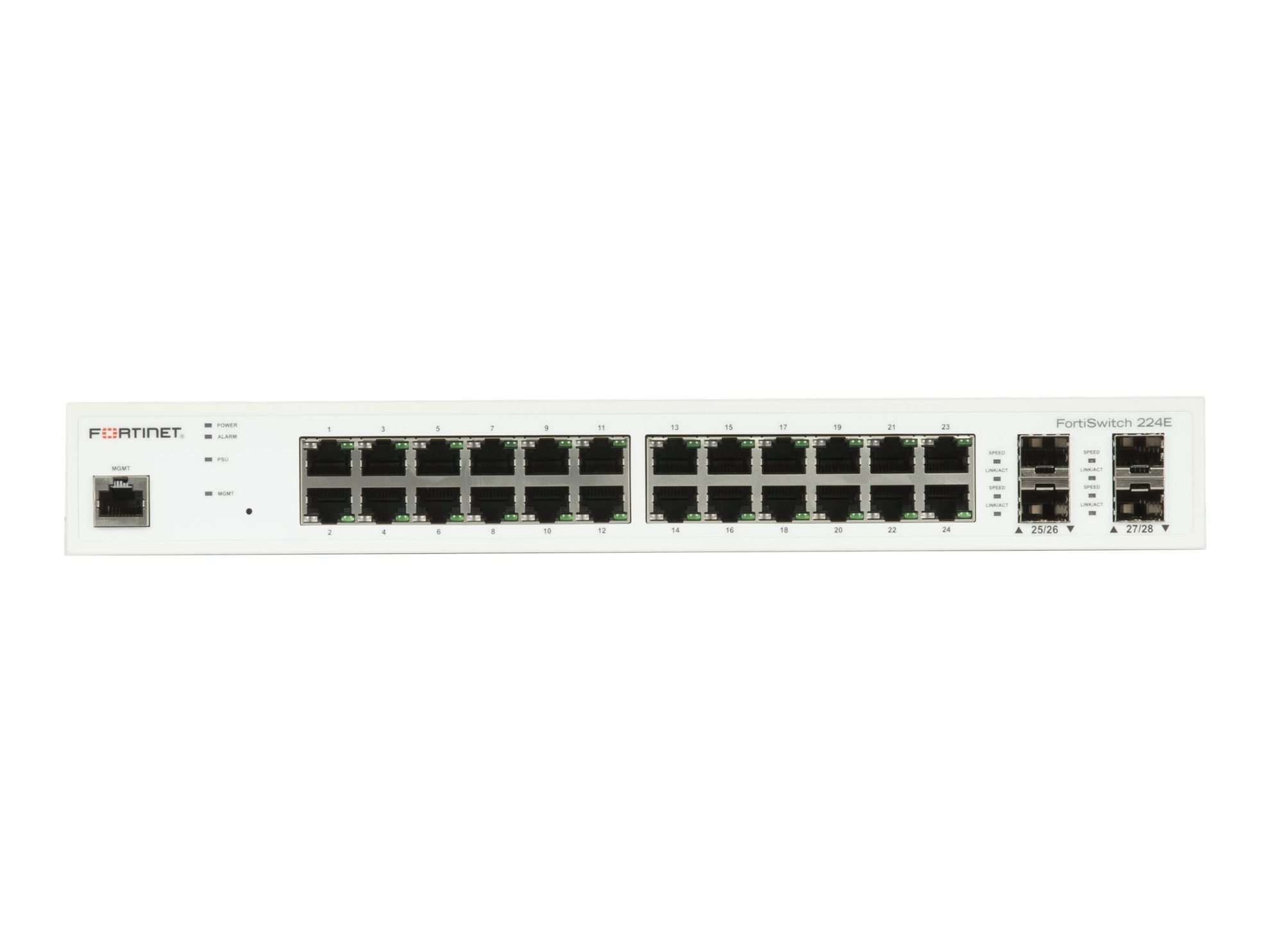

Fortinet FortiSwitch 224E - Switch - L3 - Styrt - 24 x 10/100/1000 + 4 x Gigabit SFP - rackmonterbar

Tilgjengelighet: 1 på lager
Sku: FS-224E
12 544,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

Mid-range layer 3 capable "Secure Simple Scalable" Ethernet switch designed for desktop to wiring closet. FortiLink enabled, the 200 series integrates with the FortiGate NGFW to offer the most secure Ethernet solution in the market.

Security fabric integration

Reduces complexity and decreases management cost with network security functions managed through a single console via FortiGate. This integration allows all users to be authenticated against the same user database, regardless of whether they connect to the wired or wireless network, including temporary guest users. In addition, same security policy can apply to a user or device regardless of how or where they connect to the network.

Simplify network deployment

The Power over Ethernet (PoE) capability in some models, enables simple installation of wireless access points and IP phones in the network.

FortiLink mode

The FortiSwitch Secure Access Switch series integrates directly into the FortiGate Connected UTM, with switch administration and access port security managed from the familiar FortiGate interface. Regardless of how users and devices connect to the network, you have complete visibility and control over your network security and access through this single pane of glass, perfectly suited to threat conscious organizations of any size.

Standalone mode

Virtualization and cloud computing have created dense high-bandwidth Ethernet networking requirements in the data center, pushing the limits of existing data center switching. FortiSwitch Data Center switches meet these challenges by providing a high performance 10 or 40 GE capable switching platform, with a low total cost of ownership. Ideal for Top of Rack server or firewall aggregation applications, aswell as enterprise network core or distribution deployments, these switches are purpose-built to meet the needs of today's bandwidth intensive environments.

Generelt
EnhetstypeSwitch - 24 porter - L3 - Styrt
UtførelseRackmonterbar 1U
UndertypeGigabit Ethernet
Porter24 x 10/100/1000 + 4 x Gigabit SFP
YtelseKoblingskapasitet: 48 Gbps
Pakkeoverføringsmulighet: 83 Mpps
Latens: 1 µs
KapasitetVirtuelle grensesnitt (VLAN-er): 4000
Linkaggregeringsgrupper: 14
Linkaggregeringsgrupper: 8
Bufferkapasitet (MB): 1,5 MB
MSTP-forekomster: 15
Ruteoppføringer: 64
Vertsoppføringer: 4000
ACL-oppføringer: 512
Mac Adress Tabellstørrelse16000 innføringer
JumborammestøtteJa
RutingprotokollRIP-2, VRRP, OSPFv2
Protokoll for fjernstyrt administrasjonSNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Autentifikasjons MetodeRADIUS
EgenskaperFlytkontroll, Auto-negotiation, IGMP-snusing, portspeiling, SNTP-støtte, sFlow, Spanning Tree Protocol (STP)-støtte, Rapid Spanning Tree Protocol (RSTP)-støtte, Multiple Spanning Tree Protocol (MSTP)-støtte, DHCP-snusing, Jumbo Frames-støtte, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR), Bidirectional Forwarding Detection (BFD), LLDP-støtte, DHCP-overføring, Link Aggregation Control Protocol (LACP), IP-MAC-binding, Management Information Base (MIB), statisk ruting, merket VLAN, Type of Service (ToS), støtte for DiffServ Code Point (DSCP), Storm Control, Root Guard, Multi-Chassis Link Aggregation (MLAG), Private VLAN
Tilpassede standarderIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX
Ekspansjon / Tilkoplinger
Grensesnitt24 x 1000Base-T RJ-45
4 x Gigabit LAN SFP
1 x konsoll RJ-45
1 x styring RJ-45

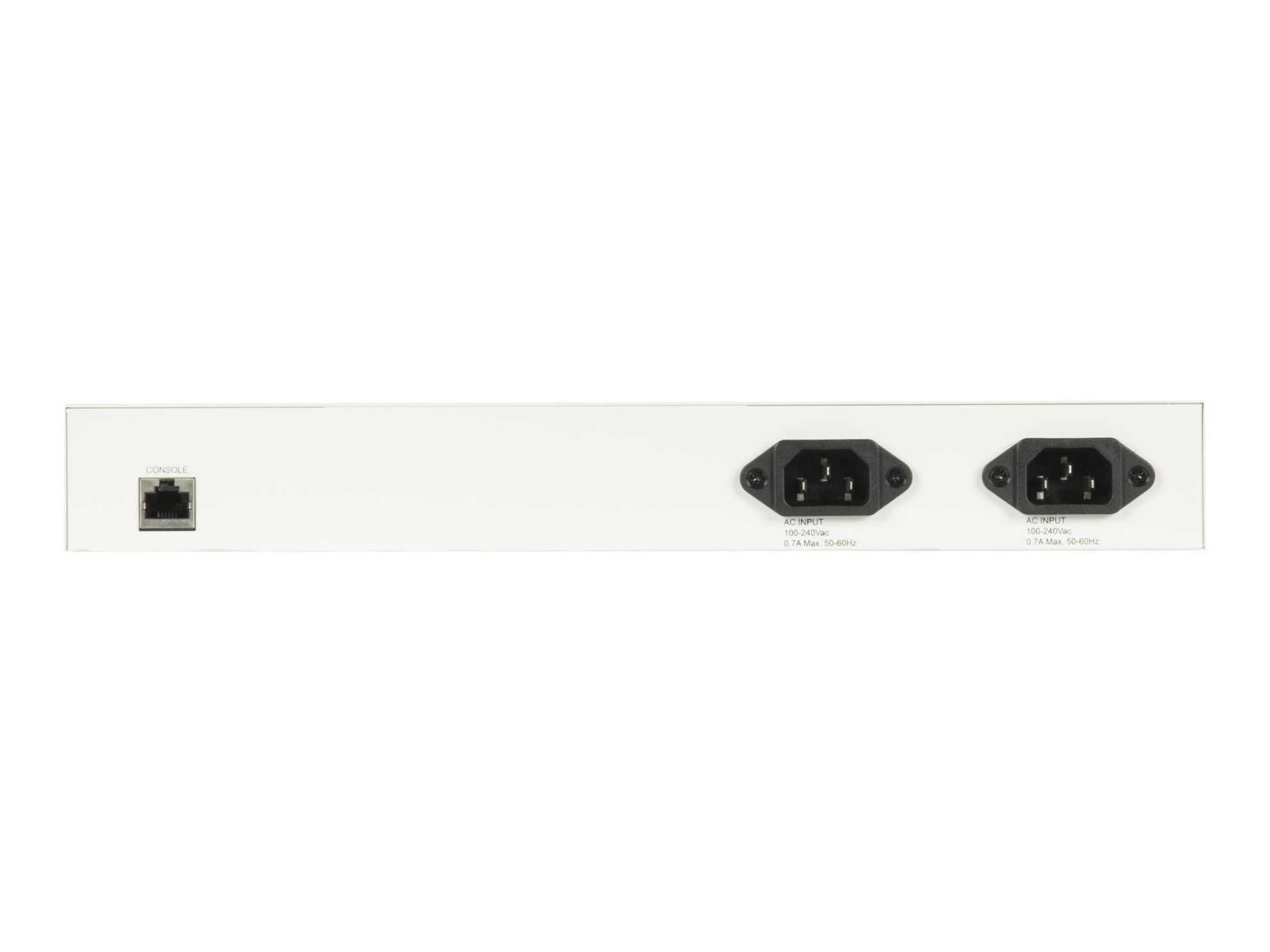

Strømforsyning
StrømenhetIntern strømforsyning
StrømforsyningsredundansJa
Påkrevd nettspenningAC 120/230 V (50 - 60 Hz)
Strømforbruk ved drift17.3 watt
Diverse
Tilpassede standarderUL, VCCI, BSMI, CB, FCC, RoHS2, RCM
Mål og vekt
Bredde33 cm
Dybde23 cm
Høyde4.4 cm
Vekt2.17 kg
Fabrikantgaranti
Service og støtteBegrenset garanti - levetid
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur50 °C
Driftsfuktighet10 - 90%
Min. oppbevaringstemperatur-20 °C
Maks. oppbevaringstemperatur70 °C
