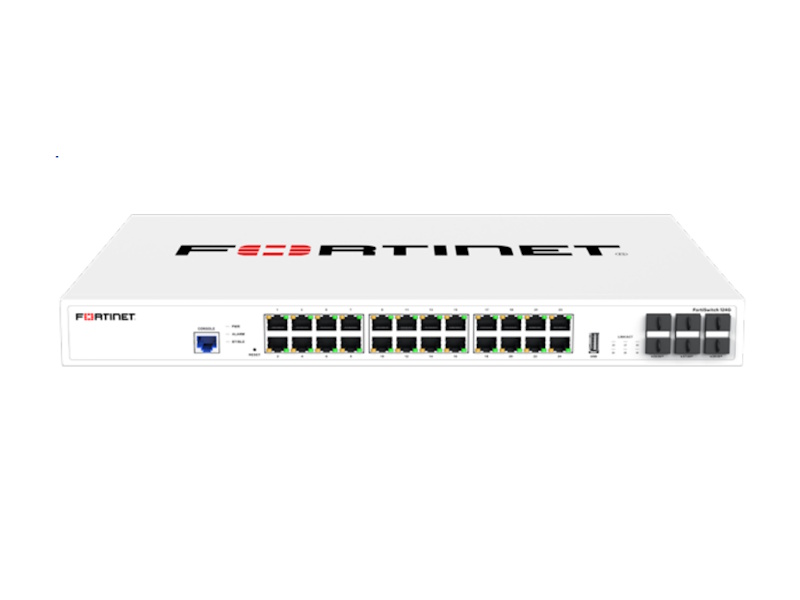

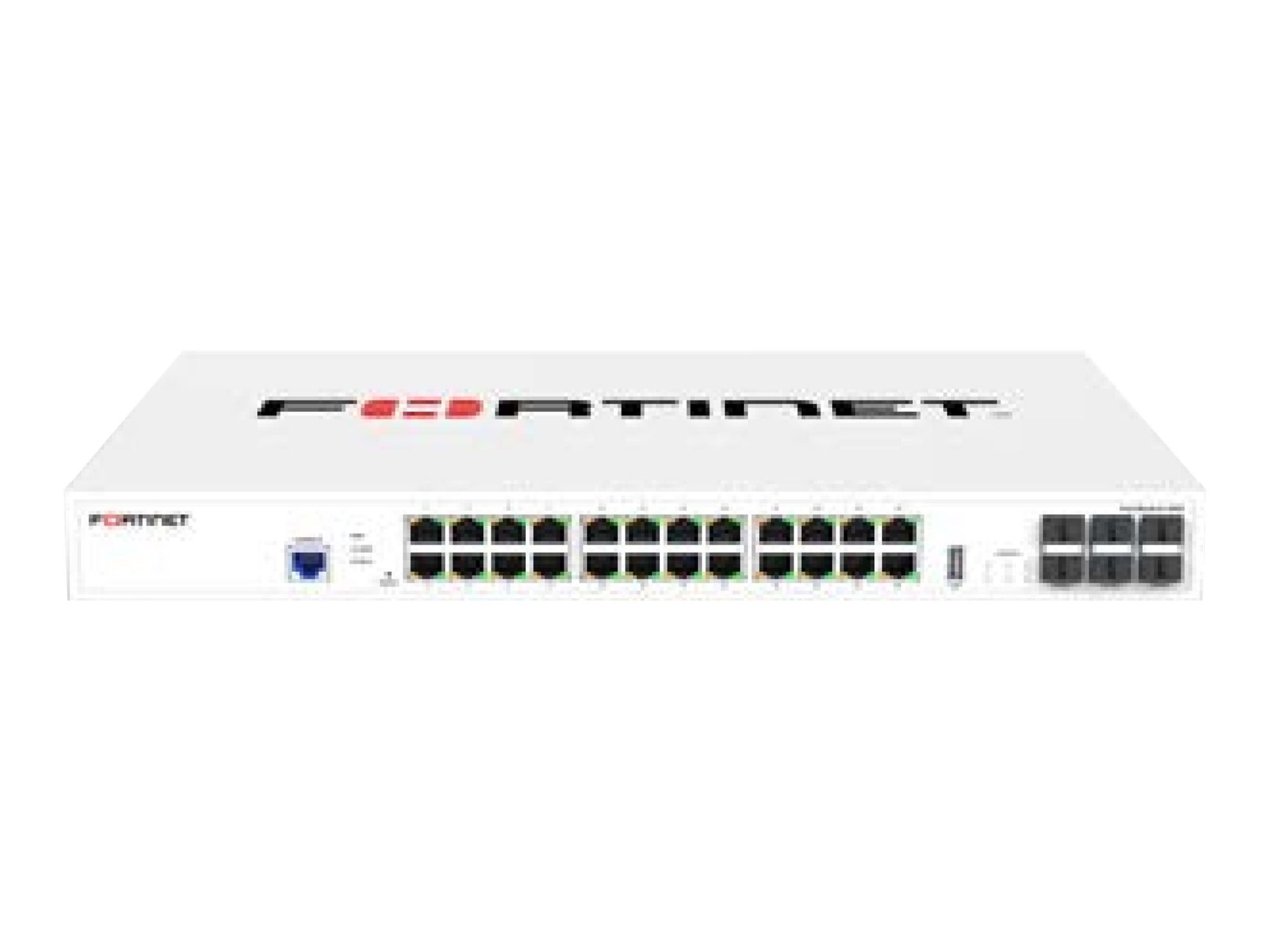

Fortinet FortiSwitch 124G - Switch - Styrt - 24 x 10/100/1000/2.5G + 6 x 1 Gigabit / 10 Gigabit SFP+ - luftflyt fra side til bakside - rackmonterbar

Tilgjengelighet: 8 på lager

Sku: FS-124G

16 212,00 kr eksl mva

Antall:

Beskrivelse

The Fortinet FortiSwitch 124G is a robust and versatile network switch designed to enhance connectivity and improve network performance. With a total switching capacity of 240 Gbps, it supports up to 4000 Spanning Tree Protocol instances and has 32 link aggregation groups, providing scalability for various network demands. Its support for 12 VLANs and an extensive array of security features such as Access Control Lists (ACLs) and Network Access Control (NAC) ensures secure and efficient traffic management.

Built for durability, the switch operates efficiently in a wide environmental range, with a minimum operating temperature of -5 °C to a maximum of 45 °C. The fanless design contributes to minimal noise while supporting side to back airflow for optimal cooling. With extensive remote management capabilities, including SSH, SNMP, and web-based GUI, it allows for seamless configuration and monitoring, making it an ideal choice for enterprises seeking reliable network infrastructure.

Robust switching capacity

The FortiSwitch 124G delivers a total switching capacity of 240 Gbps, allowing for efficient data transfers and reduced bottlenecks in high-traffic environments.

Scalable VLAN support

With support for up to 12 VLANs, this switch enables users to segregate network segments for enhanced security and performance.

Durable environmental tolerance

Operating in temperatures from -5 °C to 45 °C and capable of storing in conditions as extreme as -40 °C to 70 °C ensures this switch can handle a range of settings.

Comprehensive remote management

The FortiSwitch 124G supports various remote management protocols including SNMP, HTTPS, and CLI, providing flexibility in how network administrators can monitor and configure the device.

Long MTBF for reliability

Designed with a Mean Time Between Failures of over 10 years, it provides confidence in its long-term operational reliability and performance.

Generelt

Enhetstype	Switch - 24 porter - Styrt
Utførelse	Luftflyt fra side til bakside rackmonterbar 1U
Undertype	2.5 Gigabit Ethernet
Porter	24 x 10/100/1000/2.5G + 6 x 1 Gigabit / 10 Gigabit SFP+
Ytelse	Koblingskapasitet: 240 Gbps Pakker per sekund: 355 Mpps Latens: < 1 µs Pakkebufferstørrelse: 2 MB
Kapasitet	VLAN støttet: 4000 Linkaggregeringsgrupper: 8 Totale linkaggregeringsgrupper: 12 ACL: 640 Spanning Tree Protocol-forekomster: 32
Mac Adress Tabellstørrelse	32K innganger
Jumborammestøtte	Ja
Rutingprotokoll	IGMP, STP, MSTP, RSTP, BGP, statisk IP-ruting, IS-IS, RIP, RIP-2, OSPF, OSPFv2, OSPFv3, VRRP, VRRPv3, BGP-4
Protokoll for fjernstyrt administrasjon	DHCP, Syslog, HTTP, HTTPS, IPv4, IPv6, RMON 1, TFTP, Web GUI, CLI, UDP, TCP/IP, Telnet, SSH, MIB, SNMP 1, SNMP 2c, SNMP 3
Autentifikasjons Metode	RADIUS, Extensible Authentication Protocol (EAP), Secure Shell (SSH)
Egenskaper	Automatisk oppdagelse, ZTP, skystyring, NAC, FortiLink Mode, støtte for SD-WAN, IGMP-snusing, VXLAN, VLAN støttet, LLDP, LLDP-MED, Høy tilgjengelighet, LAG, MAB, 802.1x-verifisering, DHCP-snusing, APR støtte, automatisk topologidetektering, Auto-negotiation, VLAN Tagging, EEE, LACP, CSMA/CD, flytkontroll, Loop Guard, auto-uplink (auto MDI/MDI-X), Storm Control, Private VLAN, RPVST, STP BPDU Guard, STP Root Guard, TDR, portgruppering, ACL-støtte, DAI, NetFlow, IPFIX, IP-kildebeskytter, IPv6 RA Guard, IP-MAC-binding, portspeiling, sFlow, WOL, MC-LAG, QoS, ECN, ToS, støtte for DSCP, SNMP feller, FTP-støtte, SPAN, RSPAN, ERSPAN, nullstillingsknapp, uten vifte
Tilpassede standarder	IEEE 802.1x, IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1Qbb, IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 1588-2008, IEEE 802.1p
RAM	1 GB DDR4 SDRAM
Flash-minne	256 MB
Statusindikatorer	Strøm, alarm, PoE max, Bluetooth Low Energy (BLE), Bluetooth

Ekspansjon / Tilkoplinger

Grensesnitt

24 x 2.5GBase-T RJ-45
6 x 1/10GBase-X SFP+
1 x konsoll RJ-45

Strømforsyning

Strømenhet	Intern strømforsyning
Påkrevd nettspenning	AC 100-240 V (50/60 Hz)
Strømforbruk ved drift	46 watt

Diverse

MTBF	>10 år
Tilpassede standarder	FCC, ICES, UKCA, RCM, VCCI, BSMI, UL, CB, RoHS2, IP30

Mål og vekt

Bredde	44 cm
Dybde	31 cm
Høyde	4.4 cm
Vekt	3.97 kg

Fabrikantgaranti

Service og støtte

Begrenset garanti - levetid

Miljøparametere

Min. driftstemperatur	-5 °C
Maks. Driftstemperatur	45 °C
Driftsfuktighet	5 - 95% RH (non-condensing)
Min. oppbevaringstemperatur	-40 °C
Maks. oppbevaringstemperatur	70 °C
