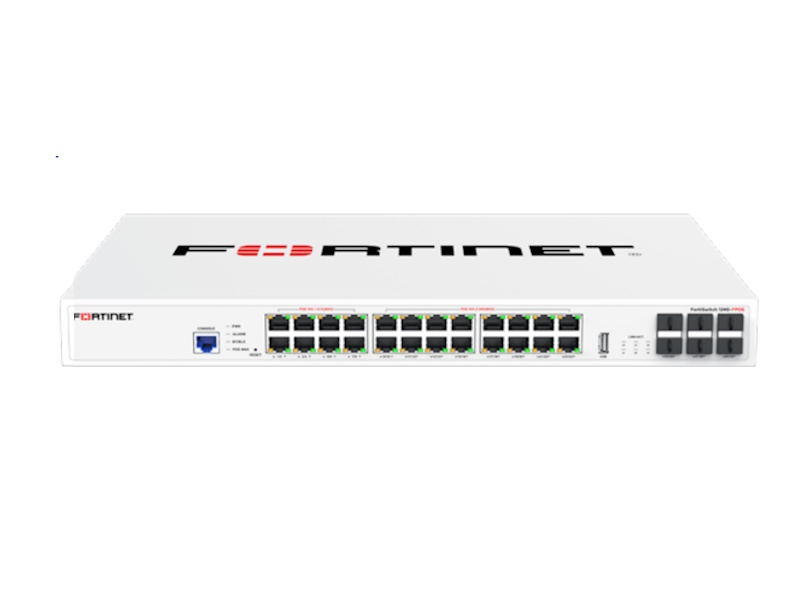

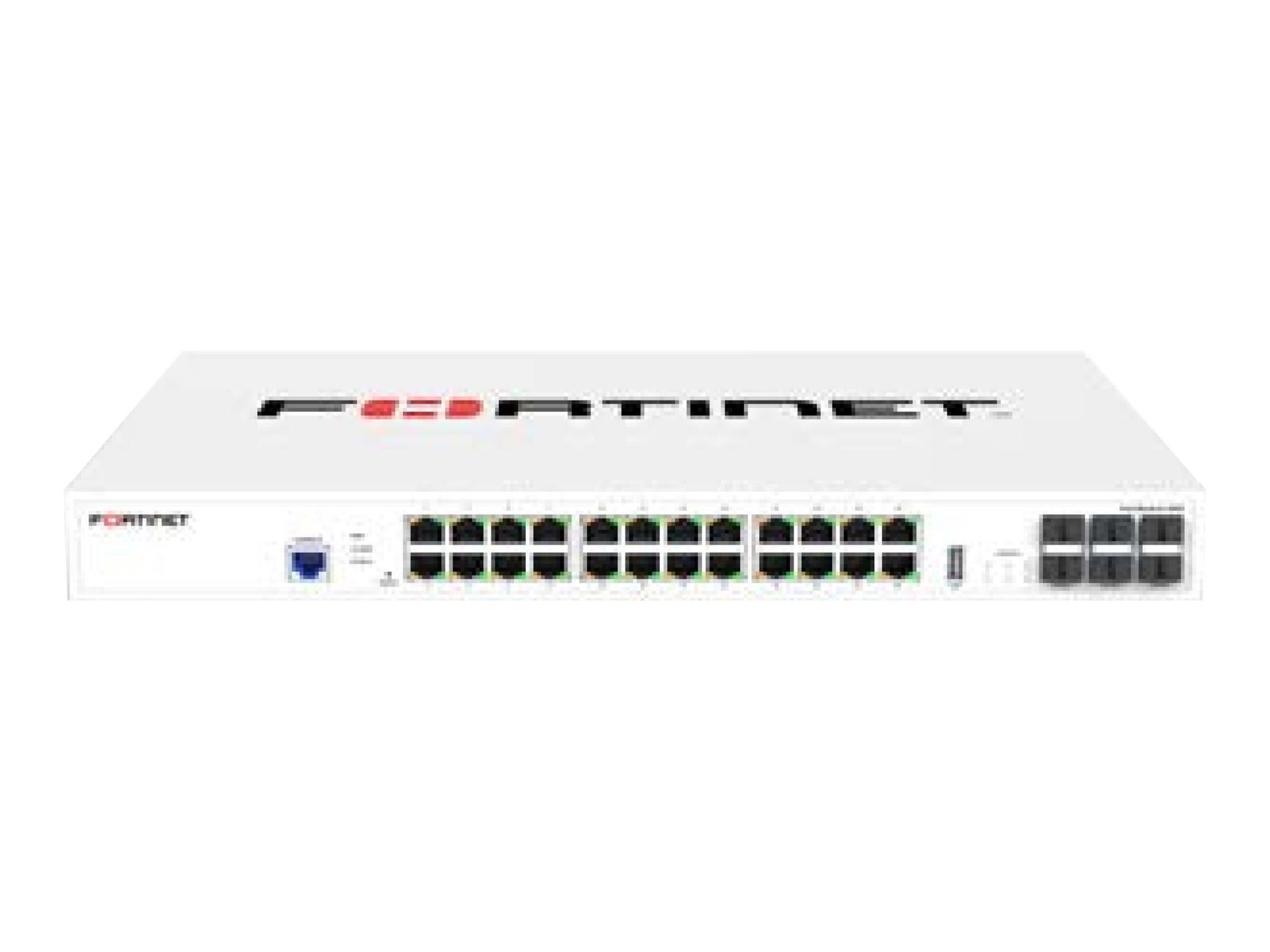

Fortinet FortiSwitch 124G-FPOE - Switch - Styrt - 18 x 10/100/1000/2.5G (PoE+) + 8 x 10/100/1000/2.5G (PoE++) + 6 x 1 Gigabit / 10 Gigabit SFP+ - luftflyt fra side til bakside - rackmonterbar - PoE+ (780 W)

Tilgjengelighet: 8 på lager

Sku: FS-124G-FPOE

23 108,00 kr eksl mva

Antall:

Beskrivelse

The Fortinet FortiSwitch 124G-FPOE is a versatile networking solution designed to meet the demands of modern enterprises. With a switching capacity of 240 Gbps and support for up to 4000 Spanning Tree Protocol instances, this switch ensures optimal performance for various applications. It offers Power over Ethernet support, providing up to 780 W across different ports, making it suitable for powering devices such as IP cameras and access points.

The 124G-FPOE features a range of management protocols, ensuring seamless integration into existing network infrastructures. Its compact rack-mountable form factor and side to back airflow design make it suitable for space-constrained environments. With an operating temperature range of -5°C to 45°C and a humidity range of 5 - 95% RH, the switch is built to operate reliably in diverse environments.

High performance

The FortiSwitch 124G-FPOE delivers performance with a switching capacity of 240 Gbps and a packet forwarding speed of 355 Mpps, suitable for high-bandwidth applications.

Extensive power over Ethernet support

Equipped with PoE+ and PoE++ technology, the switch supports a total power budget of 780 W, enabling efficient powering of connected devices without needing additional power supplies.

Flexible management options

This switch offers a variety of remote management protocols, including SNMP, HTTPS, and CLI, allowing for easy configuration and monitoring tailored to specific network requirements.

Robust environmental specifications

With a wide operating temperature range of -5°C to 45°C and a storage temperature range of -40°C to 70°C, the switch is designed to perform reliably in different environmental conditions.

Strong compliance standards

The product adheres to numerous compliance standards such as IEEE 802.3, IEEE 802.1x, and RoHS2, ensuring a reliable and safe networking solution.

Generelt

Enhetstype	Switch - 24 porter - Styrt
Utførelse	Luftflyt fra side til bakside rackmonterbar 1U
Undertype	2.5 Gigabit Ethernet
Porter	18 x 10/100/1000/2.5G (PoE+) + 8 x 10/100/1000/2.5G (PoE++) + 6 x 1 Gigabit / 10 Gigabit SFP+
Strøm via Ethernet (PoE)	PoE+
PoE-budsjett	780 W
Ytelse	Koblingskapasitet: 240 Gbps Pakker per sekund: 355 Mpps Latens: < 1 µs Pakkebufferstørrelse: 2 MB
Kapasitet	VLAN støttet: 4000 Linkaggregeringsgrupper: 8 Totale linkaggregeringsgrupper: 12 ACL: 640 Spanning Tree Protocol-forekomster: 32
Mac Adress Tabellstørrelse	32K innganger
Jumborammestøtte	Ja
Rutingprotokoll	IGMP, STP, MSTP, RSTP, BGP, statisk IP-ruting, IS-IS, RIP, RIP-2, OSPF, OSPFv2, OSPFv3, VRRP, VRRPv3, BGP-4
Protokoll for fjernstyrt administrasjon	DHCP, Syslog, HTTP, HTTPS, IPv4, IPv6, RMON 1, TFTP, Web GUI, CLI, UDP, TCP/IP, Telnet, SSH, MIB, SNMP 1, SNMP 2c, SNMP 3
Autentifikasjons Metode	RADIUS, Extensible Authentication Protocol (EAP), Secure Shell (SSH)
Egenskaper	Automatisk oppdagelse, ZTP, skystyring, NAC, FortiLink Mode, støtte for SD-WAN, IGMP-snusing, VXLAN, VLAN støttet, LLDP, LLDP-MED, Høy tilgjengelighet, LAG, MAB, 802.1x-verifisering, DHCP-snusing, APR støtte, automatisk topologidetektering, Auto-negotiation, VLAN Tagging, EEE, LACP, CSMA/CD, flytkontroll, Loop Guard, auto-uplink (auto MDI/MDI-X), Storm Control, Private VLAN, RPVST, STP BPDU Guard, STP Root Guard, TDR, portgruppering, ACL-støtte, DAI, NetFlow, IPFIX, IP-kildebeskytter, IPv6 RA Guard, IP-MAC-binding, portspeiling, sFlow, WOL, MC-LAG, QoS, ECN, ToS, støtte for DSCP, SNMP feller, FTP-støtte, SPAN, RSPAN, ERSPAN, nullstillingsknapp, Smart Fan
Tilpassede standarder	IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at, IEEE 802.1x, IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1Qbb, IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 1588-2008, IEEE 802.1p
RAM	1 GB DDR4 SDRAM
Flash-minne	256 MB
Statusindikatorer	Strøm, alarm, PoE max, Bluetooth Low Energy (BLE), Bluetooth

Ekspansjon / Tilkoplinger

Grensesnitt

16 x 2.5GBase-T RJ-45 PoE+ - 30 W
8 x 2.5GBase-T RJ-45 PoE++ - 90 W
6 x 1/10GBase-X SFP+
1 x konsoll RJ-45

Strømforsyning

Strømenhet	Intern strømforsyning
Påkrevd nettspenning	AC 100-240 V (50/60 Hz)
Strømforbruk ved drift	880 watt

Diverse

MTBF	>10 år
Tilpassede standarder	FCC, ICES, UKCA, RCM, VCCI, BSMI, UL, CB, RoHS2, IP20

Mål og vekt

Bredde	44 cm
Dybde	31 cm
Høyde	4.4 cm
Vekt	4.86 kg

Fabrikantgaranti

Service og støtte

Begrenset garanti - levetid

Miljøparametere

Min. driftstemperatur	-5 °C
Maks. Driftstemperatur	45 °C
Driftsfuktighet	5 - 95% RH (non-condensing)
Min. oppbevaringstemperatur	-40 °C
Maks. oppbevaringstemperatur	70 °C
