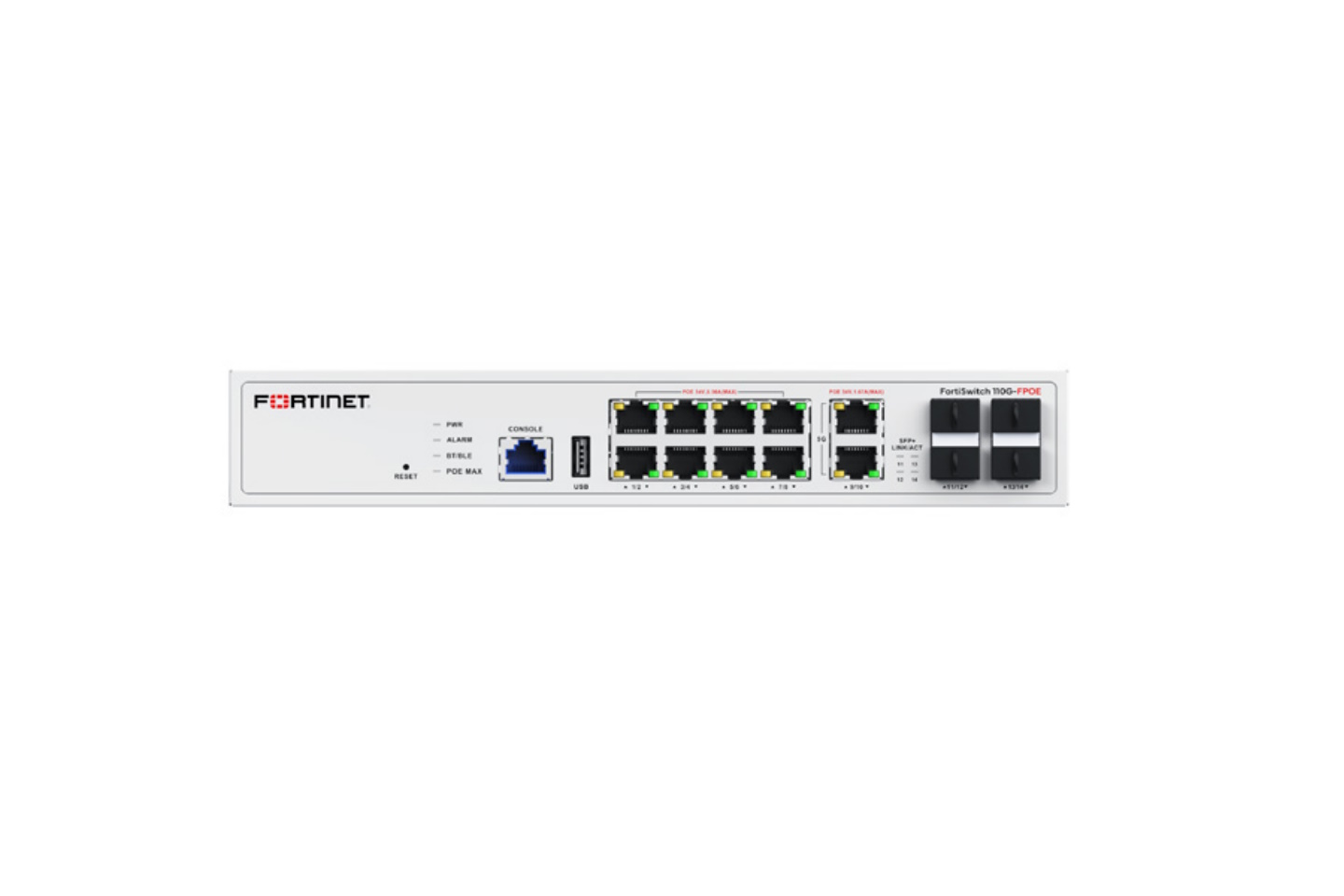

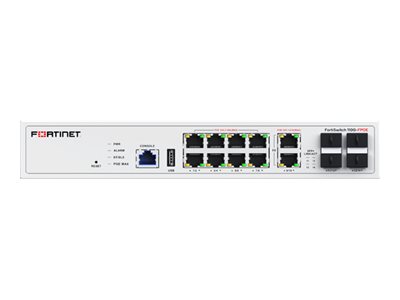

Fortinet FortiSwitch 110G-FPOE - Switch - Styrt - 2 x 10/100/1000/2.5G/5G (PoE++) + 8 x 10/100/1000/2.5G (PoE+) + 2 x 10 Gigabit SFP+ - luftflyt fra side til bakside - stasjonær - PoE++ (200 W)

Tilgjengelighet: Ikke på lager
Sku: FS-110G-FPOE
13 088,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The Fortinet FortiSwitch 110G-FPOE offers robust capabilities for modern networking needs. Designed for environments requiring PoE++ support, it features up to 10 ports for connectivity, ensuring that devices get the power they need without additional wiring. With a switching capacity of 140 Gbps and packet forwarding speeds of 208 Mpps, this switch maintains a low latency of under 1 µs, making it suitable for high-performance requirements.

The switch can support a multitude of spanning tree protocol instances, ACLs, VLANs, and link aggregation groups, accommodating the needs of complex networks. With an operational temperature range from 0°C to 45°C and humidity tolerance of 10 - 95% RH, the FortiSwitch is built for reliability. Its fanless design, along with compliance with various standards like UL and FCC, ensures durability and efficiency in various settings.

Robust performance capabilities

The Fortinet FortiSwitch 110G-FPOE features a switching capacity of 140 Gbps, supporting a large number of packets that can be processed with a latency of less than 1 µs. This ensures quick response times essential for network efficiency.

Versatile connectivity options

Equipped with 10 ports, including PoE support for up to 200 W and 10 Gigabit SFP+ options, the switch caters to various networking setups, enabling seamless integration with existing infrastructure.

Enhanced environmental durability

Capable of operating in temperatures ranging from 0°C to 45°C with a storage range of -40°C to 70°C, the switch is well-suited for diverse environments while maintaining stable performance.

Comprehensive network management

Support for multiple remote management protocols such as SNMP, RMON, and DHCP ensures streamlined network administration and monitoring, facilitating effective network operations.

Energy-efficient design

With a fanless configuration, the FortiSwitch minimizes energy consumption and operational noise, making it an ideal choice for desktop deployments while maintaining efficient performance.

Generelt
EnhetstypeSwitch - 10 porter - Styrt
UtførelseLuftflyt fra side til bakside stasjonær
Undertype5 Gigabit Ethernet
Porter2 x 10/100/1000/2.5G/5G (PoE++) + 8 x 10/100/1000/2.5G (PoE+) + 2 x 10 Gigabit SFP+
Strøm via Ethernet (PoE)PoE++
PoE-budsjett200 W
YtelseKoblingskapasitet: 140 Gbps
Pakker per sekund: 208 Mpps
Latens: < 1 µs
Pakkebufferstørrelse: 2 MB
KapasitetVLAN støttet: 4000
Linkaggregeringsgrupper: 10
Totale linkaggregeringsgrupper: 12
ACL: 640
Spanning Tree Protocol-forekomster: 32
Mac Adress Tabellstørrelse32K innganger
JumborammestøtteJa
RutingprotokollOSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMP, VRRP, OSPFv2, statisk IP-ruting, OSPFv3, VRRPv3, MSTP, RSTP, STP
Protokoll for fjernstyrt administrasjonSNMP 1, RMON 1, RMON 2, RMON 3, Telnet, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, DHCP, IPv4, IPv6, Syslog, MIB, TCP/IP, UDP, Web GUI
Autentifikasjons MetodeSecure Shell (SSH), RADIUS, Extensible Authentication Protocol (EAP)
EgenskaperFlytkontroll, Auto-negotiation, APR støtte, VLAN støttet, WOL, auto-uplink (auto MDI/MDI-X), IGMP-snusing, portspeiling, automatisk topologidetektering, Høy tilgjengelighet, sFlow, DHCP-snusing, ACL-støtte, QoS, DAI, TDR, nullstillingsknapp, STP Root Guard, uten vifte, LACP, RSPAN, NetFlow, IP-MAC-binding, NAC, IPFIX, 802.1x-verifisering, skystyring, ToS, støtte for DSCP, Storm Control, IP-kildebeskytter, ECN, VXLAN, Loop Guard, Private VLAN, STP BPDU Guard, ZTP, EEE, SPAN, ERSPAN, VLAN Tagging, portgruppering, FortiLink Mode, MAB, MC-LAG, LAG, støtte for SD-WAN, CSMA/CD, LLDP-MED, FTP-støtte, RPVST, LLDP, SNMP feller, SASE, IPv6 RA Guard
Tilpassede standarderIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 1588-2008, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bz, IEEE 802.3bt
RAMDDR4 SDRAM
Flash-minne8 MB
StatusindikatorerStrøm, alarm, PoE max, Bluetooth Low Energy (BLE), Bluetooth
Ekspansjon / Tilkoplinger
Grensesnitt2 x 5GBase-T RJ-45 PoE++
8 x 2.5GBase-T RJ-45 PoE+
2 x 10GBase-X SFP+
1 x konsoll RJ-45
1 x styring (LAN) RJ-45
1 x USB
Strømforsyning
StrømenhetEkstern strømadapter
StrømtilførselDC 54 V
Påkrevd nettspenningAC 100-240 V (50/60 Hz)
Strømforbruk ved drift250 watt
Diverse
MTBF>10 år
Tilpassede standarderUL, VCCI, BSMI, CB, FCC, RoHS2, IP30, RCM
Mål og vekt
Bredde22.8 cm
Dybde27 cm
Høyde4.4 cm
Vekt1.84 kg
Fabrikantgaranti
Service og støtteBegrenset garanti - levetid
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur45 °C
Driftsfuktighet10 - 95% RH (non-condensing)
Min. oppbevaringstemperatur-40 °C
Maks. oppbevaringstemperatur70 °C
