Sorry-dette produktet er ikke lenger tilgjengelig

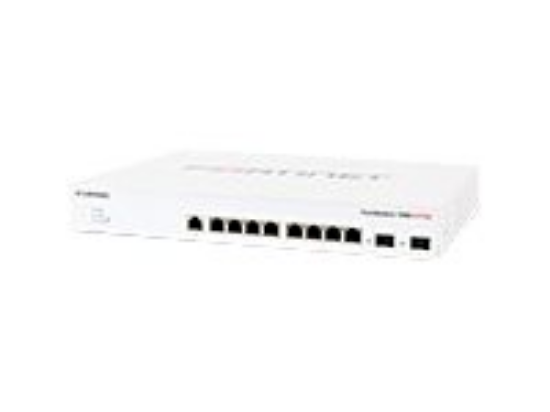

Fortinet FortiSwitch 108E-POE - Switch - Styrt - 4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP + 4 x 10/100/1000 - rackmonterbar - PoE+ (65 W)

Tilgjengelighet: Ikke på lager
Sku: FS-108E-POE
5 784,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

Entry level "Secure Simple Scalable" Ethernet switch designed for desktop to wiring closet. FortiLink capable the 100 series integrates with the FortiGate NGFW to offer the most secure Ethernet solution in the market.

Security fabric integration

Reduces complexity and decreases management cost with network security functions managed through a single console via FortiGate. This integration allows all users to be authenticated against the same user database, regardless of whether they connect to the wired or wireless network, including temporary guest users.

Simplify network deployment

The Power over Ethernet (PoE) capability in some models, enables simple installation of wireless Access Points and IP phones in the network.

Generelt
EnhetstypeSwitch - 8 porter - Styrt
UtførelseRackmonterbar 1U
UndertypeGigabit Ethernet
Porter4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP + 4 x 10/100/1000
Strøm via Ethernet (PoE)PoE+
PoE-budsjett65 W
YtelseKoblingskapasitet: 20 Gbps
Pakkefremsendingshastighet: 14.88 Mpps
Latens: 4 µs
KapasitetVLAN støttet: 4000
Linkaggregeringsgrupper: 8
Totale linkaggregeringsgrupper: 8
Mac Adress Tabellstørrelse8K adresser
JumborammestøtteJa
Protokoll for fjernstyrt administrasjonSNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Autentifikasjons MetodeRADIUS
EgenskaperFlytkontroll, Auto-negotiation, portspeiling, SNTP-støtte, Spanning Tree Protocol (STP)-støtte, Rapid Spanning Tree Protocol (RSTP)-støtte, Multiple Spanning Tree Protocol (MSTP)-støtte, Jumbo Frames-støtte, STP Root Guard, uten vifte, Link Aggregation Control Protocol (LACP), DHCP-klient, Management Information Base (MIB), 512 KB-pakkebuffer, 802.1x-verifisering, Storm Control, Back Pressure Support, Link Aggregation, Management Information Base (MIB) II, Guest VLAN, STP BPDU Guard, IPv6-styring, VLAN Tagging, FortiLink Mode, MAC Access Bypass (MAB), Telnet-server
Tilpassede standarderIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX
RAM256 MB DDR3 SDRAM
Flash-minne32 MB
StatusindikatorerStrøm, alarm, lenke/aktivitet
Ekspansjon / Tilkoplinger
Grensesnitt4 x 1000Base-T RJ-45 PoE+
2 x Gigabit LAN SFP
1 x konsoll RJ-45 styring
4 x 1000Base-T RJ-45
Strømforsyning
StrømenhetIntern strømforsyning
Påkrevd nettspenningAC 120/230 V (50 - 60 Hz)
Strømforbruk ved drift5.19 watt
Diverse
MTBF>10 år
Tilpassede standarderUL, VCCI, BSMI, CB, FCC, RoHS2, RCM
Mål og vekt
Bredde33 cm
Dybde20.9 cm
Høyde4.4 cm
Vekt1.95 kg
Fabrikantgaranti
Service og støtteBegrenset garanti - levetid
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur40 °C
Driftsfuktighet10 - 90% (ikke-kondenserende)
Min. oppbevaringstemperatur-40 °C
Maks. oppbevaringstemperatur70 °C
