Sorry-dette produktet er ikke lenger tilgjengelig

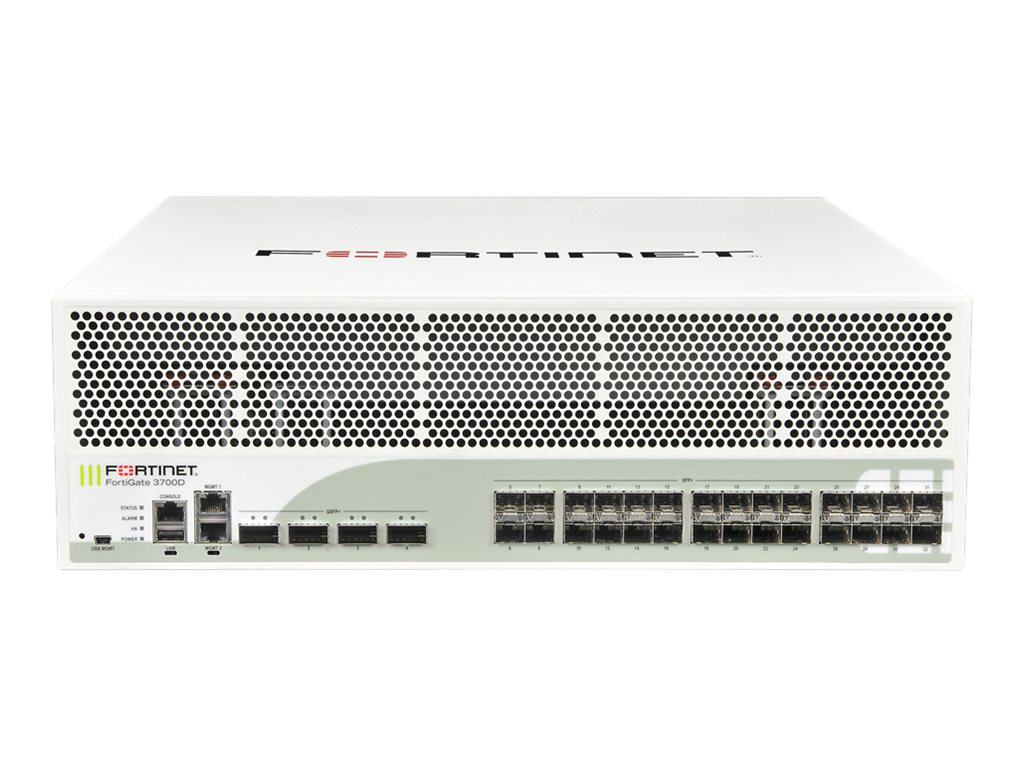

Fortinet FortiGate 3700D-DC - Sikkerhetsapparat - med 1-års FortiCare 24X7 Support + 1-års FortiGuard Enterprise Protection - 10 GigE, 40 Gigabit LAN - DC-strøm - 3U - rackmonterbar

Tilgjengelighet: Ikke på lager
Sku: FG-3700D-DC-BDL-811-12
2 570 471,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The FortiGate 3700D-DC delivers high-performance threat protection for mid-sized to large enterprises and service providers, with the flexibility to be deployed at the Internet or cloud edge, in the data center core or internal segments.

Security

Protects against known exploits, malware and malicious websites using continuous threat intelligence provided by FortiGuard Labs security services. Protects against unknown attacks using dynamic analysis and provides automated mitigation to stop targeted attacks.

Performance

Delivers threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology. Provides industry-leading performance and protection for SSL encrypted traffic.

Certification

Independently tested and validated best security effectiveness and performance. Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin and AV Comparatives.

Networking

Delivers extensive routing, high-speed interfaces, and high performance VPN capabilities to address performance and connectivity needs of large-scale data center and cloud applications. Enables flexible deployment modes that fit into organizations' evolving network infrastructure.

Management

Single Pane of Glass with Network Operations Center (NOC) view provides 360° visibility to identify issues quickly and intuitively. Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture.

Security Fabric

Enables Fortinet and Fabric-ready partners' products to collaboratively integrate and provide end-to-end security across the entire attack surface.

Generelt
EnhetstypeSikkerhetsapparat
Tjenestebundter1-års FortiCare 24X7 Support + 1-års FortiGuard Enterprise Protection
Høyde (Stativenheter)3U
Bredde43.7 cm
Dybde57.9 cm
Høyde13.3 cm
Vekt21.3 kg
Prosessor / Minne / Lager
Installerte prosessorer1 x Fortinet FortiASIC CP8/NP6
HarddiskHDD 2 TB x 2
Nettverkstilknytning
ProduktformfaktorRackmonterbar
OverføringsteknologiKablet
DatakjedeprotokollGigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet
Nettverks-/transportprotokollTCP/IP, UDP/IP, IPSec
Protokoll for fjernstyrt administrasjonHTTP
YtelseBrannmursgjennomløp (1518-byte pakkestørrelse): 160 Gbps
Brannmursgjennomløp (512-bytepakkestørrelse): 160 Gbps
Brannmurgjennomløp (64-bytepakkestørrelse): 110 Gbps
IPv6 brannmur-gjennomløp (1518-byte pakkestørrelse): 160 Gbps
IPv6 brannmur-gjennomløp (512-byte pakkestørrelse): 160 Gbps
IPv6 brannmur-gjennomløp (64-byte pakkestørrelse): 110 Gbps
Brannvegglatens (64-byte UDP): 2 µs
Brannmurgjennomløp: 165 Mpps
VPN-gjennomstrømning (512-bit IPSec): 100 Gbps
VPN-gjennomløp (SSL): 10 Gbps
SSL inspeksjonsprosessering: 24 Gbps
Applikasjonskontroll-gjennomløp (AVC): 40 Gbps
CAPWAP-gjennomløp (1444-byte, UDP): 22 Gbps
IPS-gjennomløp (optimal traffikkblanding): 57 Gbps
IPS-gjennomløp (firmatraffikkblanding): 28 Gbps
NGFW throughput: 20 Gbps
Trusselvernsgjennomløp: 13 Gbps
KapasitetSamtidige TCP-økter: 50000000
Nye TCP-økter per sekund: 400000
Brannmurspolitikk: 200000
Gateway-til-gateway IPSec VPN-tunneller: 40000
Klient-til-gateway IPSec VPN-tunneller: 200000
Samtidige SSL VPN-brukere: 30000
Virtuelle domener: 10 (maksimalt 500)
Maksimum antall svitsjer: 256
Antall FortiAP-enheter: 4096
Antall FortiToken-enheter: 5000
Antall registrerte FortiClients: 100000
StatusindikatorerPortoverføringshastighet, strøm, status, alarm, lenke/aktivitet, vifte, HA
EgenskaperBrannveggbeskyttelse, NAT-støtte, VPN-støtte, trafikktilpasning, kan administreres, IPv6-støtte, antivirusanalyse, Intrusion Prevention System (IPS), IPv4-støtte, sjekksumavlastingsstøtte
KrypteringsalgoritmeSSL, 128-bit AES, 256-bit AES, 256-bits SHA, TLS 1.2
Ekspansjon / Tilkoplinger
Grensesnitt2 x 1000Base-T (ledelse) - RJ-45
1 x USB - Type A
8 x 10Gb Ethernet - SFP+
1 x konsoll
4 x 40Gb Ethernet - QSFP+
20 x 1Gb Ethernet/10Gb Ethernet - SFP+
1 x mini-USB - Type B
Diverse
Tilleggsutstyr inkludert2 SR SFP+ transceivere
Tilpassede standarderUL, VCCI, C-Tick, ICSA IPSec-godkjent, ICSA Firewall-godkjent, cUL, ICSA Antivirus, CB, FCC Part 15 A, NEBS, IPv6 Ready, USGv6, ICSA SSL-VPN, ICSA IPS
Strømforsyning
StrømenhetIntern strømforsyning - hot-plug
Installert antall2
Max støttet Ant2
StrømforsyningsredundansJa
Påkrevd nettspenningDC 40 - 72 V
Strømforbruk ved drift609.6 watt
Programvare / Systemkrav
OS MedfølgerFortiOS
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur40 °C
Driftsfuktighet10 - 90% (ikke-kondenserende)
