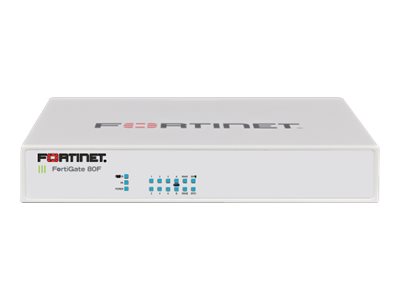

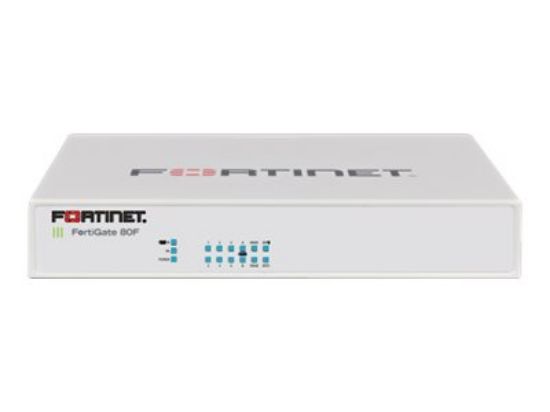

Fortinet FortiGate 80F-DSL - High Availability - sikkerhetsapparat - 1GbE desktop / wall mountable
Tilgjengelighet: Ikke på lager
Beskrivelse
The FortiGate Next-Generation Firewall 80F series is ideal for building security-driven networks at distributed enterprise sites and transforming WAN architecture at any scale.
With a rich set of AI/ML-based FortiGuard security services and the integrated Security Fabric platform, the FortiGate FortiWiFi 80F series delivers coordinated, automated, end-to-end threat protection across all use cases.
FortiGate has the industry's first integrated SD-WAN and zero-trust network access (ZTNA) enforcement within an NGFW solution and is powered by one OS. FortiGate 80F automatically controls, verifies, and facilitates user access to applications, delivering consistency with a seamless and optimized user experience.
Gartner magic quadrant leader
Gartner magic quadrant leader for both Network Firewalls and SD-WAN.
Security-driven networking
Security-driven networking with FortiOS delivers converged networking and security.
Unparalleled performance
Unparalleled performance with Fortinet's patented SoC processors.
Enterprise security
Enterprise security with consolidated AI/ML-powered FortiGuard Services.
Simplified operations
Simplified operations with centralized management for networking and security, automation, deep analytics, and self-healing.
Generelt
| Enhetstype | Sikkerhetsapparat |
| Innebygde enheter | DSL-modem |
| Bredde | 21.6 cm |
| Dybde | 17.8 cm |
| Høyde | 6 cm |
| Vekt | 1.39 kg |
Prosessor / Minne / Lager
| Installerte prosessorer | 1 x Fortinet FortiASIC SOC4 |
Nettverkstilknytning
| Produktformfaktor | Desktop / wall mountable |
| Overføringsteknologi | Kablet |
| Rammeformat | ANSI T1.413 |
| Datakjedeprotokoll | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Nettverks-/transportprotokoll | IPSec, UDP/IP, TCP/IP, HTTPs, HTTP |
| Protokoll for fjernstyrt administrasjon | HTTPS, HTTP |
| Ytelse | IPS-gjennomløp (firmatraffikkblanding): 1 Gbps NGFW-gjennomløp (bedriftstrafikkmiks): 800 Mbps Trusselbeskyttelsesgjennomløp (bedriftstrafikkmiks): 600 Mbps Brannveggjennomløp (1518-byte UDP): 5 Gbps Brannveggjennomløp (512-byte UDP): 5 Gbps Brannveggjennomløp (64-byte UDP): 5 Gbps Brannvegglatens (64-byte UDP): 2.97 µs Brannmurgjennomløp: 7,5 Mpps VPN-gjennomstrømning (512-bit IPSec): 4,4 Gbps VPN-gjennomløp (SSL): 490 Mbps SSL inspeksjonsprosessering: 310 Mbps Applikasjonskontroll-gjennomløp: 990 Mbps CAPWAP Gjennomstrømning (HTTP 64K): 3,5 Gbps |
| Kapasitet | Samtidige TCP-økter: 700000 Nye TCP-økter per sekund: 35000 Brannmurspolitikk: 5000 Gateway-til-gateway IPSec VPN-tunneller: 200 Klient-til-gateway IPSec VPN-tunneller: 250 Samtidige SSL VPN-brukere: 200 SSL inspeksjons-CPS: 320 SSL-inspeksjon av samtidige økter: 55000 Virtuelle domener: 10 Maksimum virtuelle domener: 10 Antall FortiSwitches: 8 Antall FortiAP-enheter: 16 Antal FortiAP-enheder (tunnel): 8 Antall FortiToken-enheter: 500 |
| Statusindikatorer | HA, strøm, status, WAN, DSL |
| Egenskaper | Støtte for SD-WAN, SSL-kontroll, 3G/4G USB Dongle Support, CAPWAP-støtte, VPN-støtte, uten vifte |
| Krypteringsalgoritme | TLS 1.3, SSL, 256-bits SHA, 256-bit AES |
Kommunikasjoner
| Digital signaleringsprotokoll | VDSL2, ADSL2, ADSL2+ |
| Protokoller & spesifikasjoner | ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite) |
Ekspansjon / Tilkoplinger
| Grensesnitt | 2 x 1000Base-T/1000Base-X - RJ-45/SFP (mini-GBIC) (WAN) 6 x 1000Base-T - RJ-45 2 x 1000Base-T (FortiLink) - RJ-45 1 x konsoll - RJ-45 1 x USB 3.0 - Type A 1 x DSL - RJ-11 |
Diverse
| Tilpassede standarder | FCC, ICES, RCM, VCCI, BSMI, UL, cUL, CB, ICSA Antivirus, ICSA Firewall-godkjent, ICSA IPS, ICSA IPSec-godkjent, ICSA SSL-VPN |
Strømforsyning
| Strømenhet | Ekstern strømadapter |
| Installert antall | 1 |
| Max støttet Ant | 2 |
| Strømforsyningsredundans | Valgfritt (opsjon) |
| Påkrevd nettspenning | AC 100-240 V (50/60 Hz) |
| Strømforbruk ved drift | 28 watt |
Miljøparametere
| Min. driftstemperatur | 0 °C |
| Maks. Driftstemperatur | 40 °C |
| Driftsfuktighet | 10 - 90% (ikke-kondenserende) |
