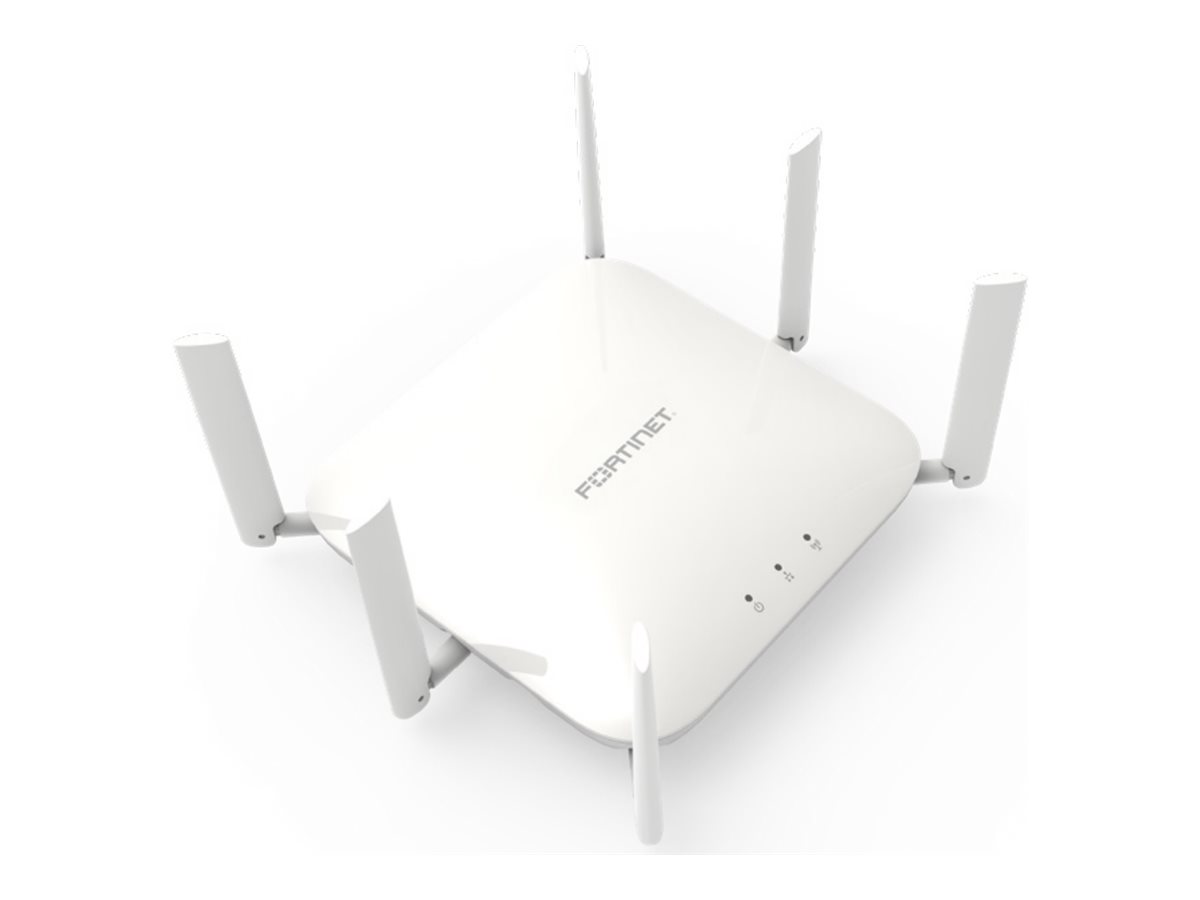

Fortinet FortiAP 243K - Trådløst tilgangspunkt - 2.5GbE, 5GbE, 10GbE, Wi-Fi 7 - Wi-Fi 7, Bluetooth, ZigBee - 2.4 GHz, 5 GHz, 6 GHz - vegg/tak-monterbar

Tilgjengelighet: Ikke på lager
Sku: FAP-243K-S
12 120,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The Fortinet FortiAP 243K is designed for robust wireless connectivity suitable for a wide range of indoor environments. With a capacity to support up to 512 wireless clients and 2 configured SSIDs, administrators can easily manage network resources while ensuring high performance. The device features an outdoor ruggedized chassis, maintaining operation between 0 °C and 50 °C with humidity levels up to 90% non-condensing, making it ideal for various locations. Equipped with powerful antennas, including six external detachable units, the FortiAP 243K maximizes coverage across its multi-band capabilities, including 2.4 GHz, 5 GHz, and 6 GHz. With extensive encryption algorithms to ensure secure connections, organizations can rely on the FortiAP for safeguarding sensitive data while enabling IoT compatibility and Bluetooth Low Energy. The inclusion of a Wireless Intrusion Prevention System (WIPS) and other advanced security features enhances overall network safety.

High capacity for connectivity

The Fortinet FortiAP 243K supports a maximum of 512 wireless clients, suitable for environments with multiple users connected simultaneously. Its ability to configure up to 2 SSIDs enhances network organization and management.

Versatile deployment options

This access point is designed with a ruggedized indoor chassis, ensuring reliable performance in various installation locations. Its wall or ceiling mountable form factor offers flexibility in deployment.

Advanced security measures

Equipped with a range of security features including Wireless Intrusion Detection System (WIDS) and Wireless Intrusion Prevention System (WIPS), the FortiAP 243K protects the network from threats while providing secure access.

Multiple connectivity options

The device integrates 1000Base-T, RS-232, USB 2.0, and 10GBase-T (PoE++) interfaces for diverse connectivity needs, enabling seamless integration with existing network infrastructure.

Enhanced wireless performance

The access point supports wireless protocols, including Wi-Fi 6 and Wi-Fi 7, ensuring high throughput rates of up to 5.76 Gbps on the 5 GHz band to accommodate demanding applications.

Generelt
EnhetstypeTrådløst tilgangspunkt
Robust designInnendørs
Bredde19 cm
Dybde19 cm
Høyde5.1 cm
Vekt1.18 kg
LokaliseringFilippinene, Singapore, Macao, Malaysia, Vietnam
Nettverkstilknytning
ProduktformfaktorVegg/tak-monterbar
OverføringsteknologiTrådløs
LinjekodingsformatBPSK, QPSK, 64 QAM, 256 QAM, 1024 QAM, 4096 QAM, OFDMA
DatakjedeprotokollEthernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.1 LE, ZigBee
SpredespektrummetodeOFDMA
Frekvensbånd2.4 GHz, 5 GHz, 6 GHz
YtelseMaksimal gjennomstrømming (2,4 GHz): 688 Mbps
Maksimal gjennomstrømming (5 GHz): 2.88 Gbps
Maksimal gjennomstrømning (6 GHz): 5.76 Gbps
KapasitetMaks. antall konfigurerte SSID-er: opptil 24
Trådløsklienter per Wi-Fi-radio: opptil 512
StatusindikatorerStrøm, LAN, Wi-Fi
Egenskaper2x2 MU-MIMO-teknologi, 802.1x-verifisering, Captive Portal, MAC svart/hvit-liste, sikkerhetsspor (kompatibel med Kensington-sikkerhetslås), Cellular Coexistence Filter (CCF), LED avmodus, BSS Coloring, MU-MIMO opplink/nedlink, Target Wait Time (TWT), detektering av urettmessig tilgangspunkt, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), Packet Sniffer Mode, spektrumanalyse, overspenningsvern
KrypteringsalgoritmeWPA, WPA2, WPA3, WEP, EAP-TLS, EAP-TTLS, MSCHAPv2, EAP-MSCHAPv2, PEAPv1, EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST, TLS, TTLS
Autentifikasjons MetodeEAP-TLS, EAP-TTLS, MS-CHAP v.2, EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, PEAPv0, PEAPv1, Radio Service Set ID (SSID), Extensible Authentication Protocol (EAP)
Tilpassede standarderIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.3bt, IEEE 802.1x, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3af
Antenne
AntenneEksternt avtakbar
Antall antenner6
AntenneforsterkningRundtstrålende
Internet of Things (IoT)
Kompatibel med Internet of Things (IoT)Ja
KommunikasjonsteknologiBluetooth Low Energy (LE), Zigbee
Ekspansjon / Tilkoplinger
Grensesnitt1 x 10GBase-T (PoE++) - RJ-45
1 x 1000Base-T - RJ-45
1 x USB 2.0 - Type A
1 x RS-232 - RJ-45
6 x antenne - RP-SMA
Diverse
Tilleggsutstyr inkludertVegg/loft/T-Rall monteringssett, 6 antenner
MTBF>10 år
Tilpassede standarderRoHS, UL 2043
Strømforsyning
Power Over Ethernet (PoE)-støttePoE++
StrømenhetEkstern strømadapter / strøminjektor (ikke inkludert)
Størrelser og vekt (forsendelse)
Fraktvekt2.09 kg
Fabrikantgaranti
Service og støtteBegrenset garanti - levetid
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur50 °C
Driftsfuktighet5 - 90 % (ikke-kondenserende)
