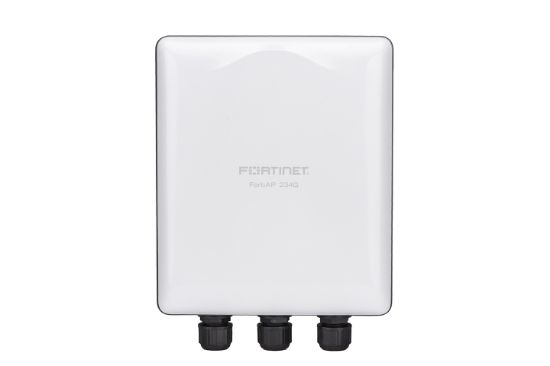

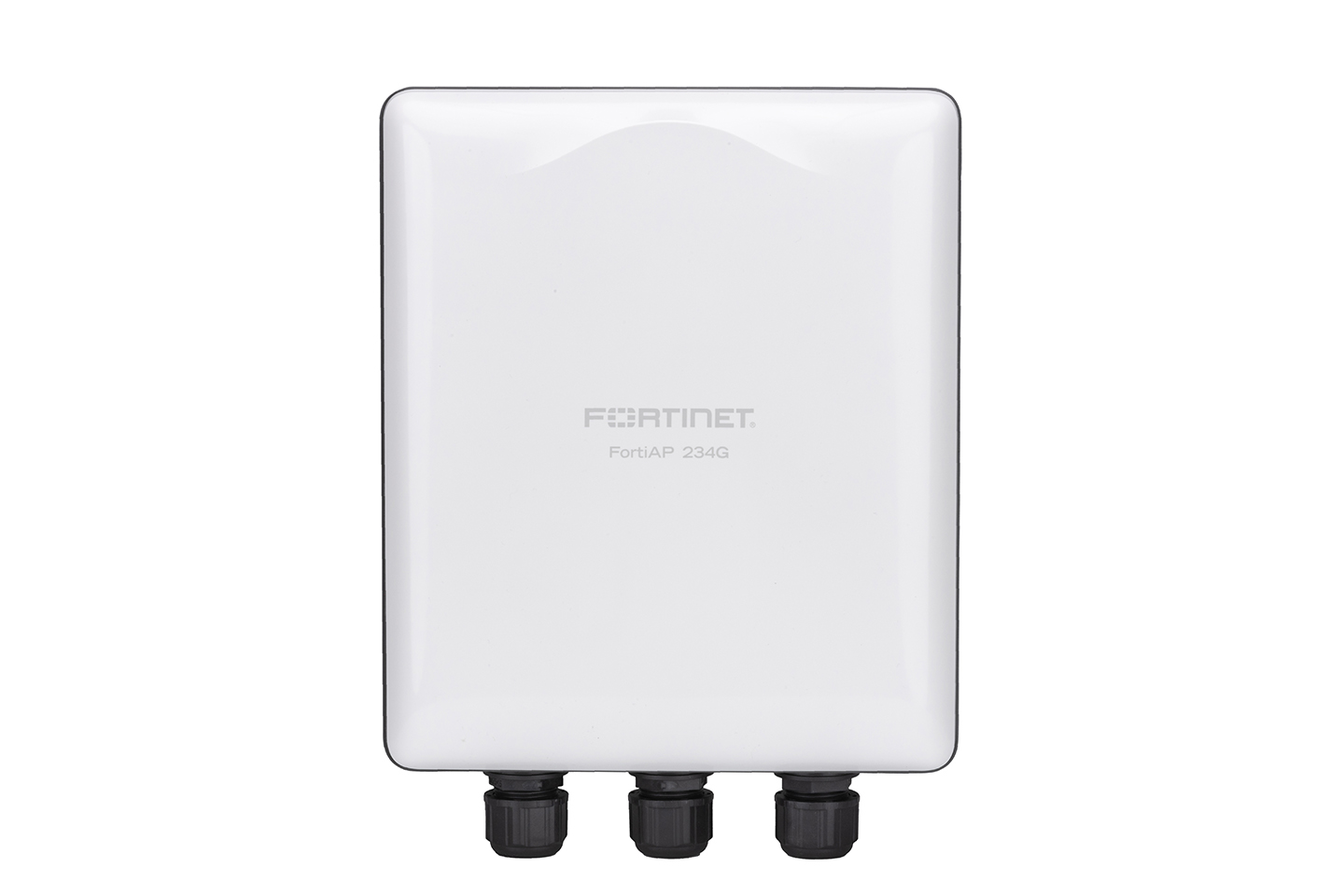

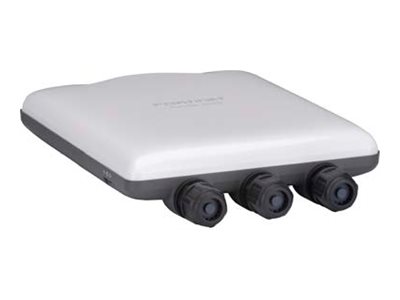

FortiAP-234G Outdoor Wireless AP - Tri radio (Wi-Fi-6E IEEE 802.11ax Tri-band 2.4/5/6GHz and dual 5G operation 2+2+2 2 streams 3 radios) [Note: 6GHz band not available in all regulatory domains], internal antennas, 2x 100/1000/2500 Base-T RJ45, BT/BLE, 1x Type A USB, Console Port (RJ45). Pole/wall mount kit included Region Code E

Tilgjengelighet: 4 på lager
Sku: FAP-234G-E
14 176,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

FortiAP access points are managed centrally by the integrated WLAN controller of any FortiGate security appliance or through the FortiLAN Cloud provisioning and management portal. With the integration of the wireless controller functionality into the FortiGate appliance, these APs are perfect for campus and branch deployments. Fortinet's Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from security threats.

Robust connectivity

Equipped with Bluetooth Low Energy (LE), Zigbee, and a wide range of Wi-Fi bands including 2.4 GHz, 5 GHz, and 6 GHz, this wireless access point ensures comprehensive coverage and compatibility with a multitude of devices and networks.

Enhanced security

Featuring advanced encryption algorithms such as WEP, WPA, WPA2, and WPA3, alongside multiple authentication methods including EAP-TLS, EAP-FAST, and more, the Fortinet FortiAP 234G provides a secure and reliable network environment.

High performance

With maximum throughput capabilities of 574 Mbps on the 2.4 GHz band, 1201 Mbps on the 5 GHz band, and support for Wi-Fi 6 technology, this device offers high speed and efficiency for handling high-bandwidth applications.

Innovative features

This model boasts unique features such as 2x2 MU-MIMO technology, BSS Coloring, and Target Wake Time (TWT), enhancing network efficiency, reducing interference, and improving power management for connected devices.

Durable design

Designed for both indoor and outdoor use, the Fortinet FortiAP 234G is built to withstand a variety of environmental conditions, ensuring reliable operation and longevity.

Generelt
EnhetstypeTrådløst tilgangspunkt
Robust designUtendørs, innendørs
Bredde21 cm
Dybde21 cm
Høyde5.65 cm
Vekt980 g
Nettverkstilknytning
ProduktformfaktorVegg/tak-monterbar
OverføringsteknologiTrådløs
Linjekodingsformat64 QAM, 256 QAM, BPSK, QPSK, 1024 QAM, OFDMA
DatakjedeprotokollEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth LE, IEEE 802.11ax (Wi-Fi 6)
SpredespektrummetodeOFDMA
Frekvensbånd2.4 GHz, 5 GHz, 6 GHz
YtelseMaksimal gjennomstrømming (2,4 GHz): 574 Mbps
Maksimal gjennomstrømming (5 GHz): 1201 Mbps
Maksimal gjennomstrømning (6 GHz): 2402 Mbps
KapasitetMaks. antall konfigurerte SSID-er: 24
Trådløsklienter per Wi-Fi-radio: opptil 512
Spatiale strømmer: 2
EgenskaperWireless Intrusion Detection System (WIDS), nullstillingsknapp, Wireless Intrusion Prevention System (WIPS), Captive Portal, 802.1x-verifisering, iBeacon-teknologi, 2x2 MU-MIMO-teknologi, LED avmodus, spektrumanalyse, Packet Sniffer Mode, sikkerhetsspor (kompatibel med Kensington-sikkerhetslås), Cellular Coexistence Filter (CCF), BSS Coloring, Target Wake Time (TWT), MAC svart/hvit-liste, MU-MIMO opplink/nedlink
KrypteringsalgoritmeWPA, WPA2, WEP, WPA3
Autentifikasjons MetodeRadio Service Set ID (SSID), MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-AKA, EAP-GTC, EAP-TLS, EAP-TTLS, PEAPv1
Tilpassede standarderIEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11j, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Antenne
AntenneIntern
Antall antenner10
AntenneforsterkningRundtstrålende
Internet of Things (IoT)
Kompatibel med Internet of Things (IoT)Ja
KommunikasjonsteknologiBluetooth Low Energy (LE), Zigbee
Ekspansjon / Tilkoplinger
Grensesnitt1 x 10/100/1000/2500Base-T - RJ-45
1 x 10/100/1000Base-T - RJ-45
1 x management (RS-232) - RJ-45
1 x USB - Type A
Diverse
Tilleggsutstyr inkludertVegg/tak-monteringssett
MTBF>10 år
Tilpassede standarderIC, UL 2043, FCC, RoHS, EU Low Voltage Directive
Strømforsyning
Power Over Ethernet (PoE)-støttePoE
Størrelser og vekt (forsendelse)
Fraktvekt1.8 kg
Fabrikantgaranti
Service og støtteBegrenset garanti - levetid
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur45 °C
Driftsfuktighet5 - 90 % (ikke-kondenserende)
