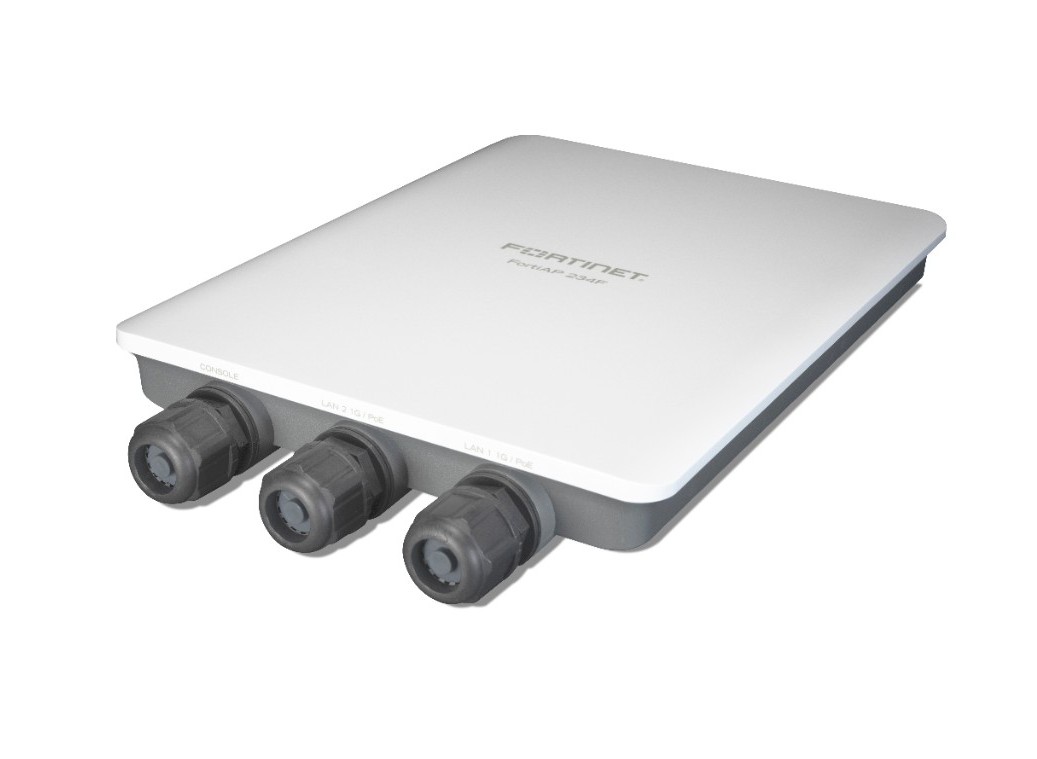

FortiAP-234F Outdoor Wirelss AP - Tri radio (802.11 b/g/n/ax 2x2 MU-MIMO, 802.11 a/n/ac/ax 2x2 MU-MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 1x1 ), internal antennas, 2x 10/100/1000 RJ45 port, BT/BLE, Console Port (RJ45). Pole/wall mount kit and PoE injector included Region Code T

Tilgjengelighet: Ikke på lager
Sku: FAP-234F-T
10 300,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

FortiAP access points are managed centrally by the integrated WLAN controller of any FortiGate security appliance or through the FortiAP Cloud provisioning and management portal. With the integration of the wireless controller functionality into the advanced FortiGate appliance, these APs are perfect for protecting your LAN Edge from the campus to branch deployments. Fortinet's Security Fabric enables you to easily manage wired and wireless security from a single pane-of-glass management console and protect your network from advanced security threats.

Fortinet FortiAP 234F provides three radios with internal antennas as well as features such as OFDMA and dual 1Gbps Ethernet ports. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 and 5GHz bands. The integrated BLE radio can be used for beacons and locationing applications.

Unified management

Unified management console simplifies operations, ensuring consistency in effective policy enforcement and compliance.

Built-in Wi-Fi security

Protects the network from advanced wireless threats and satisfies PCI DSS compliance.

Advanced security protection

Wireless LAN security done right from Fortinet. Integrated Firewall, IPS, Application Control, and Web Filtering protect the wireless LAN from advanced security threats.

Easy deployment

FortiAPs allow for a versatile collection of installation topologies with options to fit any enterprise.

Generelt
EnhetstypeTrådløst tilgangspunkt
Robust designInnendørs, utendørs
Bredde21.8 cm
Dybde31.6 cm
Høyde4.2 cm
Vekt1.307 kg
LokaliseringTaiwan
Nettverkstilknytning
ProduktformfaktorVegg/stang-monterbar
OverføringsteknologiTrådløs
LinjekodingsformatBPSK, QPSK, 64 QAM, 256 QAM, 1024 QAM, OFDMA
DatakjedeprotokollIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.2 LE, ZigBee
SpredespektrummetodeOFDMA
Frekvensbånd2.4 GHz, 5 GHz
YtelseMaksimal gjennomstrømming (2,4 GHz): 574 Mbps
Maksimal gjennomstrømming (5 GHz): 1201 Mbps
KapasitetTrådløsklienter per Wi-Fi-radio: opptil 512
Egenskaper2x2 MU-MIMO-teknologi, iBeacon-teknologi, auto-uplink (auto MDI/MDI-X), 802.1x-verifisering, Captive Portal, MAC svart/hvit-liste, Cellular Coexistence Filter (CCF), LED avmodus, BSS Coloring, MU-MIMO opplink/nedlink, Target Wake Time (TWT), detektering av urettmessig tilgangspunkt, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), Packet Sniffer Mode, spektrumanalyse, overspenningsvern
KrypteringsalgoritmeWPA, WPA2, WPA3, WEP, TLS, TTLS
Autentifikasjons MetodeEAP-TLS, EAP-TTLS, MS-CHAP v.2, PEAPv0, PEAPv1, EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST, Radio Service Set ID (SSID), Extensible Authentication Protocol (EAP)
Tilpassede standarderIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, Wi-Fi CERTIFIED 6
Antenne
AntenneIntern
Antall antenner3
AntenneforsterkningDireksjonal
Internet of Things (IoT)
Kompatibel med Internet of Things (IoT)Ja
KommunikasjonsteknologiBluetooth Low Energy (LE), Zigbee
Ekspansjon / Tilkoplinger
Grensesnitt2 x 1000Base-T - RJ-45
1 x RS-232 - RJ-45
Diverse
Tilleggsutstyr inkludertStang/vegg-monteringssett
MTBF>10 år
Tilpassede standarderEU Low Voltage Directive, RoHS, IP67, FCC
Strømforsyning
Power Over Ethernet (PoE)-støttePoE
StrømenhetStrøminjektor
Størrelser og vekt (forsendelse)
Fraktvekt3.6 kg
Fabrikantgaranti
Service og støtteBegrenset garanti - levetid
Miljøparametere
Min. driftstemperatur-40 °C
Maks. Driftstemperatur60 °C
Driftsfuktighet10 - 90% (ikke-kondenserende)
