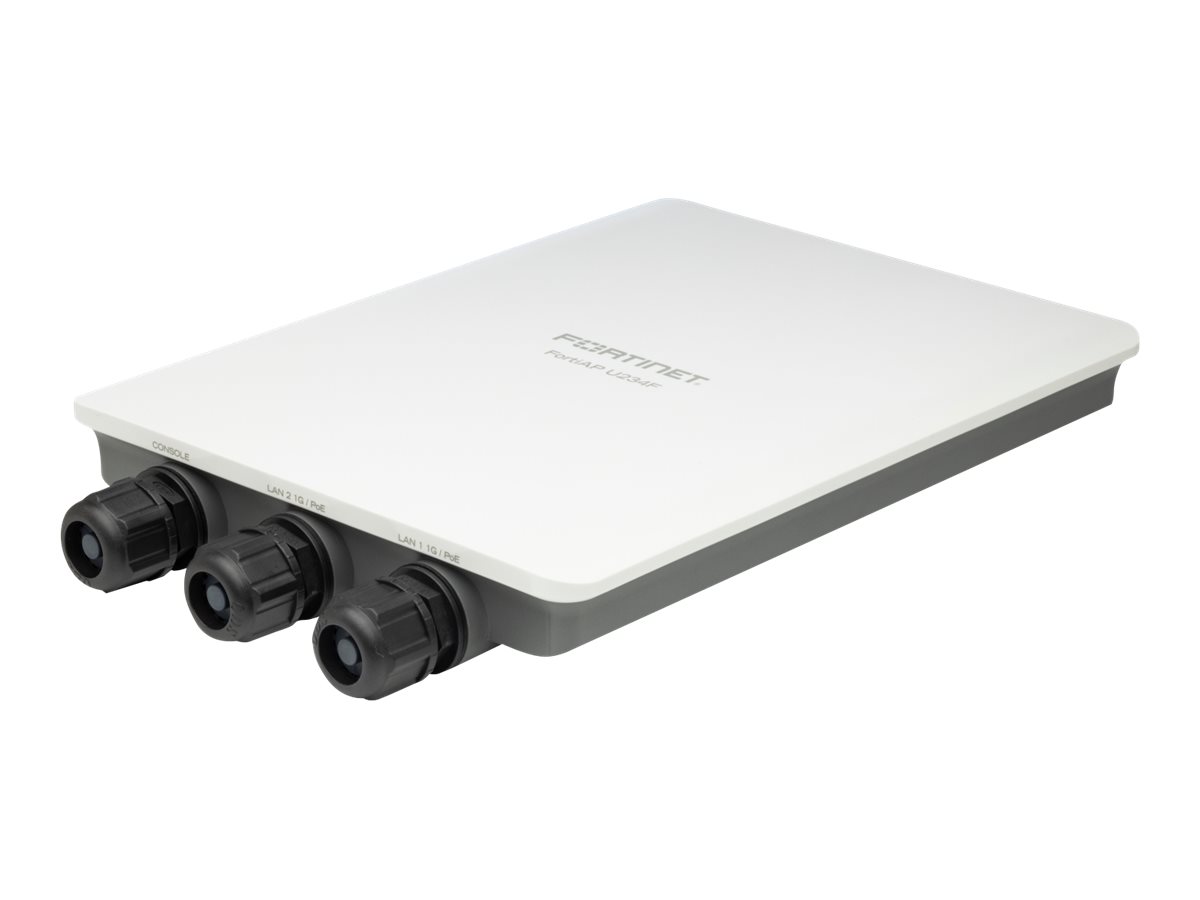

FortiAP-U234F Outdoor Universal AP - Tri radio (1x 2.4GHz/5GHz 2x2 Wi-Fi 6, 1x 5GHz 2x2 Wi-Fi 6, 1x 2.4GHz/5GHz 2x2 Wi-Fi 5), internal antennas, 2x 10/100/1000 RJ45, IoT Enabled (BT/BLE), 1x RS-232 RJ45 Serial Port. Pole/wall mount kit and PoE injector included. Region Code A

Tilgjengelighet: Ikke på lager
Sku: FAP-U234F-A
10 196,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

This enterprise class Wi-Fi 6 ruggedized indoor/outdoor AP provides three radios with internal antennas as well as features such as OFDMA and dual 1 Gbps Ethernet ports. The AP can be configured for dual 5 GHz band access while still providing coverage for devices on the 2.4 GHz band, or can be configured to offer dedicated scanning. The integrated BLE radio can be used for beacons and locationing applications.

Reliable outdoor performance

Designed to operate in harsh environments, the Fortinet FortiAP U234F functions effectively within a temperature range of -40°C to 60°C and has an IP67 compliance, ensuring protection against dust and water.

Advanced connectivity capabilities

With support for Wi-Fi 6 and a maximum of 16 configured SSIDs, this access point allows for enhanced connectivity for various wireless clients, making it fit for dense environments.

Secure communication options

This access point supports multiple encryption protocols, including WPA3 and EAP methods to ensure secure connections and protect sensitive data transmitted over the network.

Integrated IoT compatibility

Featuring Bluetooth Low Energy and Zigbee communications technology, the FortiAP U234F efficiently supports Internet of Things applications, facilitating seamless integration of connected devices.

Flexible installation choices

With a form factor that allows wall or pole mounting, the U234F can be installed in various locations, adapting to the specific layout and requirements of the installation environment.

Generelt
EnhetstypeTrådløst tilgangspunkt
Robust designInnendørs, utendørs
Bredde21.816 cm
Dybde31.618 cm
Høyde4.221 cm
Vekt1.207 kg
LokaliseringArgentina, Aruba, Bahamas, Canada, Guam, Haiti, Amerikansk Samoa, Bermuda, Caymanøyene, Den dominikanske republikken, Marshall-øyene, Nicaragua, Northern Mariana Islands, Palau, Saint Kitts og Nevis, Saint Lucia, Saint Vincent, Virgin Islands, Puerto Rico, USA
Nettverkstilknytning
ProduktformfaktorVegg/stang-monterbar
OverføringsteknologiTrådløs
Linjekodingsformat64 QAM, 256 QAM, 1024 QAM, OFDMA
DatakjedeprotokollIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth LE, ZigBee
SpredespektrummetodeOFDMA
Frekvensbånd2,4 GHz (1 bånd) / 5 GHz (2 bånd)
YtelseMaks. datahastighet (2,4 GHz): 574 Mbps
Maks. datahastighet (5 GHz): 1201 Mbps
KapasitetTrådløsklienter per Wi-Fi-radio: opptil 512
Egenskaper2x2 MIMO-teknologi, iBeacon-teknologi, 802.1x-verifisering, Captive Portal, MAC svart/hvit-liste, Cellular Coexistence Filter (CCF), Transmit Beam-forming (TxBF) klar, BSS Coloring, Low Density Parity Check (LDPC), Maximum Likelihood Demodulation (MLD), Maximum Ratio Combining (MRC), A-MPDU-datapakkesamling, A-MSDU-datapakkesamling, MU-MIMO opplink/nedlink, Target Wake Time (TWT), detektering av urettmessig tilgangspunkt, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), Packet Sniffer Mode, spektrumanalyse, overspenningsvern
KrypteringsalgoritmeWPA, WPA2, WPA3, WEP, TLS, TTLS
Autentifikasjons MetodeEAP-TLS, EAP-TTLS, MS-CHAP v.2, PEAPv0, PEAPv1, EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST, Radio Service Set ID (SSID), Extensible Authentication Protocol (EAP)
Tilpassede standarderIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt, Wi-Fi CERTIFIED 6
Antenne
AntenneIntern
Antall antenner5
AntenneforsterkningDireksjonal
Internet of Things (IoT)
Kompatibel med Internet of Things (IoT)Ja
KommunikasjonsteknologiBluetooth Low Energy (LE), Zigbee
Ekspansjon / Tilkoplinger
Grensesnitt1 x 2.5 GBase-T (PoE) - RJ-45
1 x 10/100/1000Base-T (PoE) - RJ-45
1 x RS-232 - RJ-45
Diverse
Tilleggsutstyr inkludertStang/vegg-monteringssett, jording kabel, strømkabel
MTBF>10 år
Tilpassede standarderEU Low Voltage Directive, RoHS, IP67, FCC, IC
Strømforsyning
Power Over Ethernet (PoE)-støttePoE
StrømenhetStrøminjektor
Størrelser og vekt (forsendelse)
Fraktvekt3.6 kg
Fabrikantgaranti
Service og støtteBegrenset garanti - levetid
Miljøparametere
Min. driftstemperatur-40 °C
Maks. Driftstemperatur60 °C
Driftsfuktighet10 - 90% (ikke-kondenserende)
