FortiWiFi-81F-2R-3G4G-DSL Hardware plus 5 Year Hardware plus FortiCare Premium and FortiGuard Enterprise Protection

Tilgjengelighet: Ikke på lager
Sku: FWF-81F-2R-3G4G-DSL-Y-BDL-809-60
196 740,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

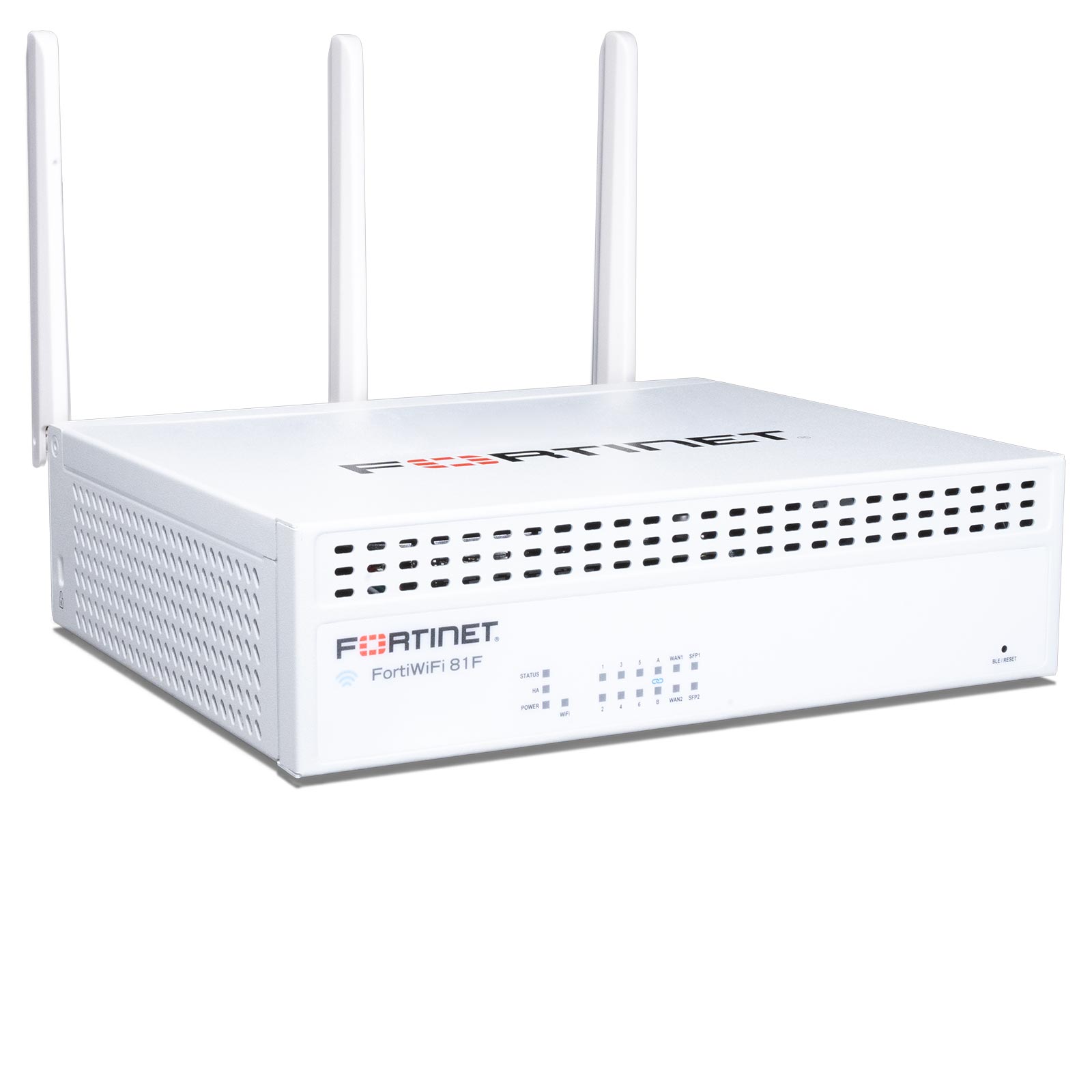

The Fortinet FortiWiFi 81F-2R-3G4G-DSL is a versatile network device designed to meet the rigorous demands of modern businesses. With its ability to handle up to 700,000 concurrent TCP sessions and 35,000 new TCP sessions per second, it offers high performance for high-traffic networks. The device also supports a wide range of VPN tunnels, including 200 gateway to gateway and 250 client to gateway IPSec VPN tunnels, ensuring secure and flexible remote access.

Incorporating advanced encryption technology with 256-bit AES and SHA algorithms, along with SSL and TLS 1.3, the FortiWiFi 81F-2R-3G4G-DSL ensures the security of your data. Its comprehensive connectivity options, including Wi-Fi 6 and 3G/4G mobile broadband, provide fast and reliable connections, ensuring your network remains operational in any scenario. With features like SD-WAN support, SSL inspection, and 3x3 MIMO technology, this security appliance is equipped to offer efficient networking solutions, making it a suitable choice for businesses looking to enhance their network's performance and security.

Enhanced security

Equipped with 256-bit AES and 256-bit SHA encryption algorithms, alongside SSL and TLS 1.3, this device ensures high-level security for all data transactions.

High-speed connectivity

Offers a blend of wired and wireless connectivity options including Ethernet, Fast Ethernet, Gigabit Ethernet, and Wi-Fi 6, ensuring fast and reliable connections across all devices.

Comprehensive VPN support

With capacity for up to 200 gateway to gateway IPSec VPN tunnels and 250 client to gateway IPSec VPN tunnels, plus SSL VPN options, remote access is secure and versatile.

Advanced networking features

Features like 3G/4G USB Dongle Support, SD-WAN support, and 3x3 MIMO technology provide flexible and efficient networking solutions.

Robust performance

Delivers impressive throughput across various metrics, including 1 Gbps IPS throughput and 7.5 Mpps firewall throughput, for high-speed, secure data processing.

Generelt
EnhetstypeSikkerhetsapparat
Tjenestebundter5 år FortiCare Premium Support + 5 år FortiGuard Enterprise Protection
Innebygde enheterDSL-modem
Bredde21.6 cm
Dybde17.8 cm
Høyde6 cm
Vekt1.6 kg
LokaliseringEgypt
Prosessor / Minne / Lager
Installerte prosessorer1 x Fortinet FortiASIC SOC4
HarddiskSSD 128 GB x 1
Nettverkstilknytning
ProduktformfaktorDesktop / wall mountable
OverføringsteknologiTrådløs, kablet
RammeformatANSI T1.413
DatakjedeprotokollEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth LE, IEEE 802.11ax (Wi-Fi 6)
Nettverks-/transportprotokollTCP/IP, UDP/IP, IPSec, HTTP, HTTPs, IPv4
Protokoll for fjernstyrt administrasjonHTTP, HTTPS
Frekvensbånd2.4 GHz, 5 GHz
YtelseIPS-gjennomløp (firmatraffikkblanding): 1 Gbps
NGFW-gjennomløp (bedriftstrafikkmiks): 800 Mbps
Trusselbeskyttelsesgjennomløp (bedriftstrafikkmiks): 600 Mbps
Brannmurgjennomstrømning (1518/512/64 byte UDP): 5 Gbps
Brannvegglatens (64-byte UDP): 2.97 µs
Brannmurgjennomløp: 7,5 Mpps
VPN-gjennomstrømning (512-bit IPSec): 4,4 Gbps
VPN-gjennomløp (SSL): 490 Mbps
SSL inspeksjonsprosessering: 310 Mbps
Applikasjonskontroll-gjennomløp: 990 Mbps
CAPWAP-gjennomløp: 3,5 Gbps
Maks. datahastighet (2,4 GHz): 450 Mbps
Maks. datahastighet (5 GHz): 1300 Mbps
KapasitetSamtidige TCP-økter: 700000
Nye TCP-økter per sekund: 35000
Brannmurspolitikk: 5000
Gateway-til-gateway IPSec VPN-tunneller: 200
Klient-til-gateway IPSec VPN-tunneller: 250
Samtidige SSL VPN-brukere: 200
SSL inspeksjons-CPS: 320
SSL-inspeksjon av samtidige økter: 55000
Virtuelle domener: 10
Maksimum virtuelle domener: 10
Antall FortiSwitches: 8
Antall FortiAP-enheter: 16
Antal FortiAP-enheder (tunnel): 8
Antall FortiToken-enheter: 500
StatusindikatorerStrøm, status, WAN, SFP, HA, DSL, Wi-Fi, 3G/4G
EgenskaperVPN-støtte, Trusted Platform Module (TPM), 3G/4G USB Dongle Support, SSL-kontroll, 3x3 MIMO-teknologi, støtte for SD-WAN, GNSS Bias
KrypteringsalgoritmeSSL, 256-bit AES, 256-bits SHA, TLS 1.3
Tilpassede standarderIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Antenne
AntenneEksternt avtakbar
Antall antenner6
Kommunikasjoner
Digital signaleringsprotokollADSL2, ADSL2+, VDSL2
Mobil bredbåndstilgangJa
Generasjon3G, 4G
MobiltelefonsprotokollUMTS, HSPA+, LTE
MobiltelefonsbåndUMTS/HSPA+ B1/B2/B4/B5/B6/B8/B9/B19 / LTE B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B18/B19/B20/B26/B28/B29/B30/B32/B41/B42/B43/B46/B48/B66
Protokoller & spesifikasjonerITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite)
Ekspansjon / Tilkoplinger
Utvidelsesspor2 Nano SIM card
Grensesnitt2 x 1000Base-T/1000Base-X - RJ-45/SFP (mini-GBIC) (WAN)
6 x 1000Base-T - RJ-45
2 x 1000Base-T (FortiLink) - RJ-45
1 x DSL - RJ-11
1 x USB 3.0 - Type A
1 x konsoll - RJ-45
6 x antenne - SMA
Diverse
Medfølgende kabler1 x nettverkskabel
1 x RJ-11-kabel
Tilpassede standarderUL, VCCI, BSMI, cUL, CB, FCC, ICES, RCM, USGv6
Strømforsyning
StrømenhetEkstern strømadapter
Installert antall1
Max støttet Ant2
StrømforsyningsredundansValgfritt (opsjon)
Påkrevd nettspenningAC 100-240 V (50/60 Hz)
Strømforbruk ved drift29.2 watt
Programvare / Systemkrav
OS MedfølgerFortiOS
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur40 °C
Driftsfuktighet20 - 90% (ikke-kondenserende)
