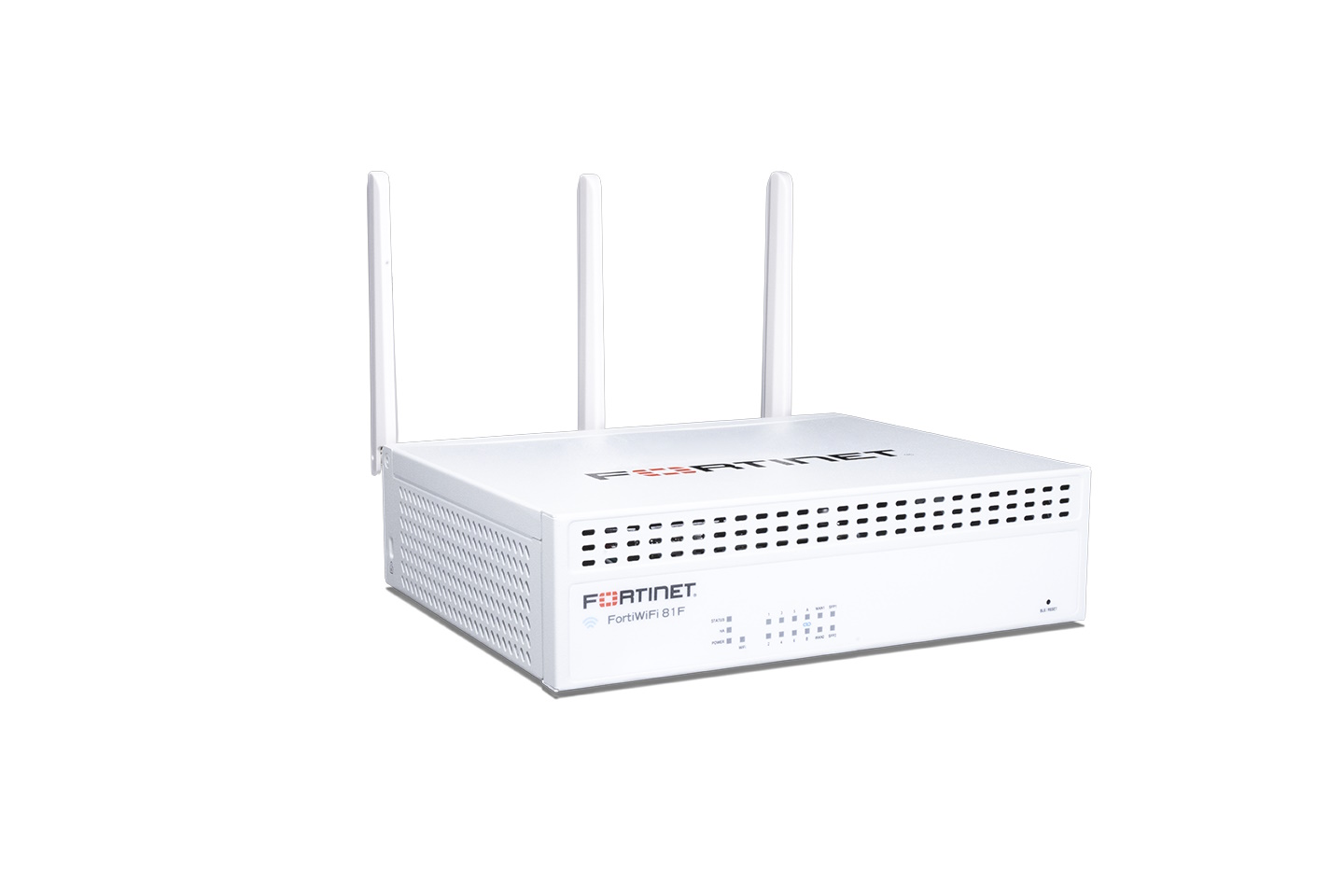

FortiWiFi-80F-2R-3G4G-DSL Hardware plus 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)

Tilgjengelighet: Ikke på lager
Sku: FWF-80F-2R-3G4G-DSL-S-BDL-950-12
60 648,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The FortiGate FortiWiFi 80F series provides an application-centric, scalable, and secure SDWAN solution in a compact, fanless, desktop form factor for enterprise branch offices and midsized businesses with integrated WiFi-6 (802.11ax). It protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple and easy-to-deploy solution. Fortinet's Security-Driven Networking approach provides tight integration of the network to the new generation of security.

  • Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
  • Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
  • Prevent and detect against known and unknown attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services
  • Delivers industry's best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
  • Provides industry-leading performance and protection for SSL encrypted traffic
  • Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources
  • Delivers high-density, flexible combination of various high-speed interfaces to enable best TCO for customers for data center and WAN deployments
  • Includes a management console that is effective, simple to use, and provides comprehensive network automation and visibility
  • Provides Zero Touch Integration with Fortinet's Security Fabric's Single Pane of Glass Management
  • Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture
Generelt
EnhetstypeSikkerhetsapparat
Tjenestebundter1 års FortiCare Premium Support + 1 års FortiGuard Unified Threat Protection (UTP)
Innebygde enheterDSL-modem
Bredde21.6 cm
Dybde17.8 cm
Høyde6 cm
Vekt1.6 kg
LokaliseringVietnam, Malaysia, Singapore, Filippinene, Macao
Prosessor / Minne / Lager
Installerte prosessorer1 x Fortinet FortiASIC SOC4
Nettverkstilknytning
ProduktformfaktorDesktop / wall mountable
OverføringsteknologiTrådløs, kablet
RammeformatANSI T1.413
DatakjedeprotokollEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth LE, IEEE 802.11ax (Wi-Fi 6)
Nettverks-/transportprotokollTCP/IP, UDP/IP, IPSec, HTTP, HTTPs, IPv4
Protokoll for fjernstyrt administrasjonHTTP, HTTPS
Frekvensbånd2.4 GHz, 5 GHz
YtelseIPS-gjennomløp (firmatraffikkblanding): 1 Gbps
NGFW-gjennomløp (bedriftstrafikkmiks): 800 Mbps
Trusselbeskyttelsesgjennomløp (bedriftstrafikkmiks): 600 Mbps
Brannmurgjennomstrømning (1518/512/64 byte UDP): 5 Gbps
Brannvegglatens (64-byte UDP): 2.97 µs
Brannmurgjennomløp: 7,5 Mpps
VPN-gjennomstrømning (512-bit IPSec): 4,4 Gbps
VPN-gjennomløp (SSL): 490 Mbps
SSL inspeksjonsprosessering: 310 Mbps
Applikasjonskontroll-gjennomløp: 990 Mbps
CAPWAP-gjennomløp: 3,5 Gbps
Maks. datahastighet (2,4 GHz): 450 Mbps
Maks. datahastighet (5 GHz): 1300 Mbps
KapasitetSamtidige TCP-økter: 700000
Nye TCP-økter per sekund: 35000
Brannmurspolitikk: 5000
Gateway-til-gateway IPSec VPN-tunneller: 200
Klient-til-gateway IPSec VPN-tunneller: 250
Samtidige SSL VPN-brukere: 200
SSL inspeksjons-CPS: 320
SSL-inspeksjon av samtidige økter: 55000
Virtuelle domener: 10
Maksimum virtuelle domener: 10
Antall FortiSwitches: 8
Antall FortiAP-enheter: 16
Antal FortiAP-enheder (tunnel): 8
Antall FortiToken-enheter: 500
StatusindikatorerStrøm, status, WAN, SFP, HA, DSL, Wi-Fi, 3G/4G
EgenskaperVPN-støtte, Trusted Platform Module (TPM), 3G/4G USB Dongle Support, SSL-kontroll, 3x3 MIMO-teknologi, støtte for SD-WAN, GNSS Bias
KrypteringsalgoritmeSSL, 256-bit AES, 256-bits SHA, TLS 1.3
Tilpassede standarderIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Antenne
AntenneEksternt avtakbar
Antall antenner6
Kommunikasjoner
Digital signaleringsprotokollADSL2, ADSL2+, VDSL2
Mobil bredbåndstilgangJa
Generasjon3G, 4G
MobiltelefonsprotokollUMTS, HSPA+, LTE
MobiltelefonsbåndUMTS/HSPA+ B1/B2/B4/B5/B6/B8/B9/B19 / LTE B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B18/B19/B20/B26/B28/B29/B30/B32/B41/B42/B43/B46/B48/B66
Protokoller & spesifikasjonerITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite)
Ekspansjon / Tilkoplinger
Utvidelsesspor2 Nano SIM card
Grensesnitt2 x 1000Base-T/1000Base-X - RJ-45/SFP (mini-GBIC) (WAN)
6 x 1000Base-T - RJ-45
2 x 1000Base-T (FortiLink) - RJ-45
1 x DSL - RJ-11
1 x USB 3.0 - Type A
1 x konsoll - RJ-45
6 x antenne - SMA
Diverse
Medfølgende kabler1 x nettverkskabel
1 x RJ-11-kabel
Tilpassede standarderUL, VCCI, BSMI, cUL, CB, FCC, ICES, RCM, USGv6
Strømforsyning
StrømenhetEkstern strømadapter
Installert antall1
Max støttet Ant2
StrømforsyningsredundansValgfritt (opsjon)
Påkrevd nettspenningAC 100-240 V (50/60 Hz)
Strømforbruk ved drift28.07 watt
Programvare / Systemkrav
OS MedfølgerFortiOS
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur40 °C
Driftsfuktighet20 - 90% (ikke-kondenserende)
