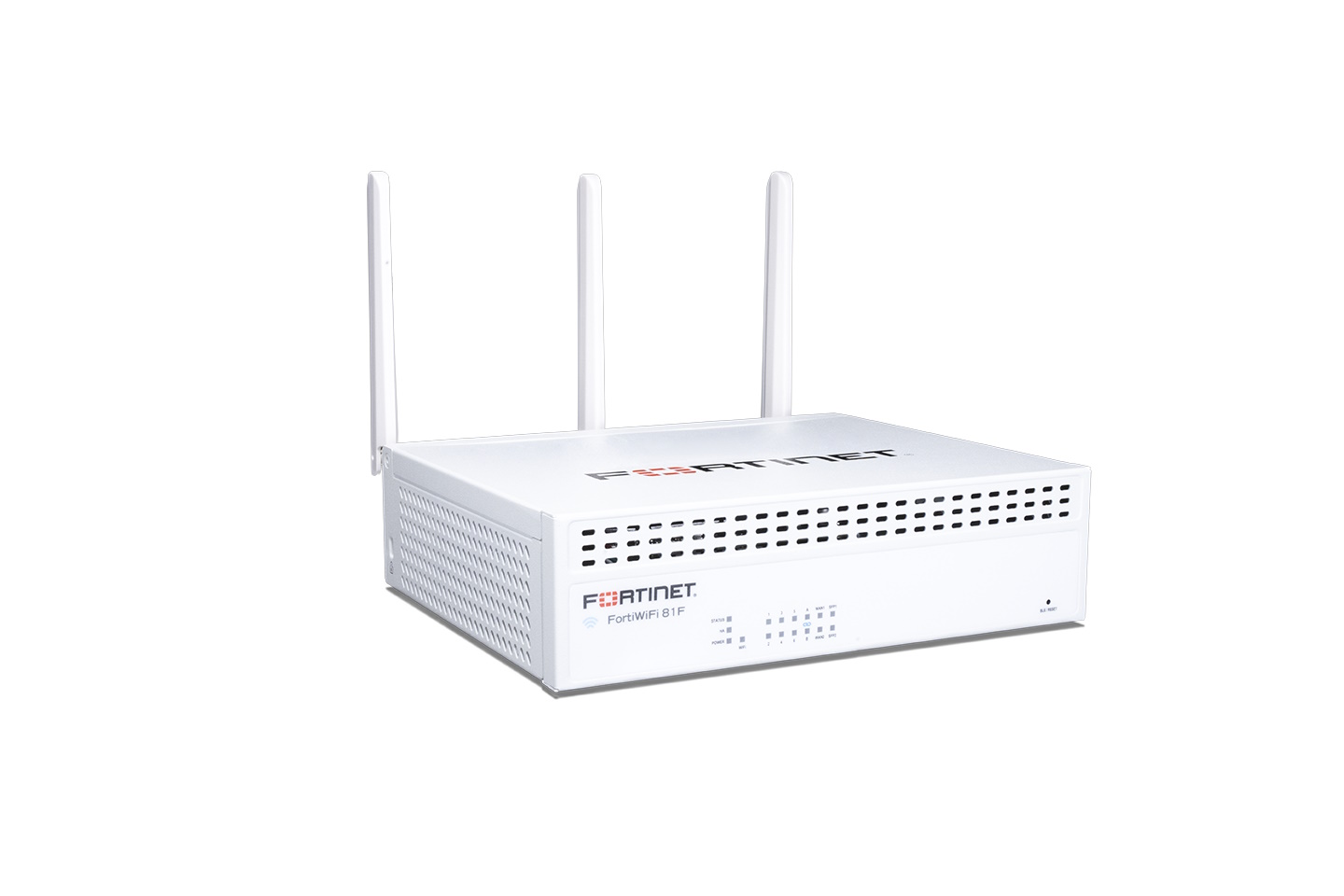

FortiWiFi-80F-2R-3G4G-DSL Hardware plus 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)

Tilgjengelighet: Ikke på lager
Sku: FWF-80F-2R-3G4G-DSL-E-BDL-950-12
67 972,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The FortiGate FortiWiFi 80F series provides an application-centric, scalable, and secure SDWAN solution in a compact, fanless, desktop form factor for enterprise branch offices and midsized businesses with integrated WiFi-6 (802.11ax). It protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple and easy-to-deploy solution. Fortinet's Security-Driven Networking approach provides tight integration of the network to the new generation of security.

  • Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
  • Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
  • Prevent and detect against known and unknown attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services
  • Delivers industry's best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
  • Provides industry-leading performance and protection for SSL encrypted traffic
  • Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources
  • Delivers high-density, flexible combination of various high-speed interfaces to enable best TCO for customers for data center and WAN deployments
  • Includes a management console that is effective, simple to use, and provides comprehensive network automation and visibility
  • Provides Zero Touch Integration with Fortinet's Security Fabric's Single Pane of Glass Management
  • Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture
Generelt
EnhetstypeSikkerhetsapparat
Tjenestebundter1 års FortiCare Premium Support + 1 års FortiGuard Unified Threat Protection (UTP)
Innebygde enheterDSL-modem
Bredde21.6 cm
Dybde17.8 cm
Høyde6 cm
Vekt1.6 kg
LokaliseringBelgia, Libanon, Oman, Saudi Arabia, Yemen, De Forente Arabiske Emirater, Afghanistan, Albania, Benin, Bulgaria, Kamerun, Tsjekkia, Estland, Litauen, Sør -frika, Island, Myanmar, Romania, Luxembourg, Ungarn, Kypros, Irak, Ghana, Kenya, Sierra Leone, Zambia, Uganda, Tanzania, Botswana, Angola, Tsjad, Burkina Faso, Etiopia, Elfenbenskysten, Kongo, Mali, Liechtenstein, Gibraltar, Grønland, Lesotho, Guadeloupe, Mauritania, Madagaskar, Malta, Rwanda, Niger, Mosambik, Monaco, Tunisia, Togo, Zimbabwe, Surinam, Belarus, Kroatia, Makedonia, Slovakia, Slovenia, Latvia, Aserbajdsjan, Moldovia, Georgia, Libya, Bhutan, Namibia, De nederlanske Antillene, Reunion, Mauritius, Østerrike, Danmark, Finland, Frankrike, Tyskland, Italia, Nederland, Norge, Polen, Portugal, Spania, Sverige, Sveits, Storbritannia, Hellas, Tyrkia, Irland, Serbia, Montenegro, Martinique, Bosnia og Herzegovina, Sentral-Afrika, Færøyene, Fransk Guyana, Fransk Polynesia, Man-søya, Mayotte, Sankt Barthélemy, Sankt Martin, Saint Pierre og Miquelon, Turks- og Caicosøyene, Wallis- og Futunaøyene
Prosessor / Minne / Lager
Installerte prosessorer1 x Fortinet FortiASIC SOC4
Nettverkstilknytning
ProduktformfaktorDesktop / wall mountable
OverføringsteknologiTrådløs, kablet
RammeformatANSI T1.413
DatakjedeprotokollEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth LE, IEEE 802.11ax (Wi-Fi 6)
Nettverks-/transportprotokollTCP/IP, UDP/IP, IPSec, HTTP, HTTPs, IPv4
Protokoll for fjernstyrt administrasjonHTTP, HTTPS
Frekvensbånd2.4 GHz, 5 GHz
YtelseIPS-gjennomløp (firmatraffikkblanding): 1 Gbps
NGFW-gjennomløp (bedriftstrafikkmiks): 800 Mbps
Trusselbeskyttelsesgjennomløp (bedriftstrafikkmiks): 600 Mbps
Brannmurgjennomstrømning (1518/512/64 byte UDP): 5 Gbps
Brannvegglatens (64-byte UDP): 2.97 µs
Brannmurgjennomløp: 7,5 Mpps
VPN-gjennomstrømning (512-bit IPSec): 4,4 Gbps
VPN-gjennomløp (SSL): 490 Mbps
SSL inspeksjonsprosessering: 310 Mbps
Applikasjonskontroll-gjennomløp: 990 Mbps
CAPWAP-gjennomløp: 3,5 Gbps
Maks. datahastighet (2,4 GHz): 450 Mbps
Maks. datahastighet (5 GHz): 1300 Mbps
KapasitetSamtidige TCP-økter: 700000
Nye TCP-økter per sekund: 35000
Brannmurspolitikk: 5000
Gateway-til-gateway IPSec VPN-tunneller: 200
Klient-til-gateway IPSec VPN-tunneller: 250
Samtidige SSL VPN-brukere: 200
SSL inspeksjons-CPS: 320
SSL-inspeksjon av samtidige økter: 55000
Virtuelle domener: 10
Maksimum virtuelle domener: 10
Antall FortiSwitches: 8
Antall FortiAP-enheter: 16
Antal FortiAP-enheder (tunnel): 8
Antall FortiToken-enheter: 500
StatusindikatorerStrøm, status, WAN, SFP, HA, DSL, Wi-Fi, 3G/4G
EgenskaperVPN-støtte, Trusted Platform Module (TPM), 3G/4G USB Dongle Support, SSL-kontroll, 3x3 MIMO-teknologi, støtte for SD-WAN, GNSS Bias
KrypteringsalgoritmeSSL, 256-bit AES, 256-bits SHA, TLS 1.3
Tilpassede standarderIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Antenne
AntenneEksternt avtakbar
Antall antenner6
Kommunikasjoner
Digital signaleringsprotokollADSL2, ADSL2+, VDSL2
Mobil bredbåndstilgangJa
Generasjon3G, 4G
MobiltelefonsprotokollUMTS, HSPA+, LTE
MobiltelefonsbåndUMTS/HSPA+ B1/B2/B4/B5/B6/B8/B9/B19 / LTE B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B18/B19/B20/B26/B28/B29/B30/B32/B41/B42/B43/B46/B48/B66
Protokoller & spesifikasjonerITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite)
Ekspansjon / Tilkoplinger
Utvidelsesspor2 Nano SIM card
Grensesnitt2 x 1000Base-T/1000Base-X - RJ-45/SFP (mini-GBIC) (WAN)
6 x 1000Base-T - RJ-45
2 x 1000Base-T (FortiLink) - RJ-45
1 x DSL - RJ-11
1 x USB 3.0 - Type A
1 x konsoll - RJ-45
6 x antenne - SMA
Diverse
Medfølgende kabler1 x nettverkskabel
1 x RJ-11-kabel
Tilpassede standarderUL, VCCI, BSMI, cUL, CB, FCC, ICES, RCM, USGv6
Strømforsyning
StrømenhetEkstern strømadapter
Installert antall1
Max støttet Ant2
StrømforsyningsredundansValgfritt (opsjon)
Påkrevd nettspenningAC 100-240 V (50/60 Hz)
Strømforbruk ved drift28.07 watt
Programvare / Systemkrav
OS MedfølgerFortiOS
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur40 °C
Driftsfuktighet20 - 90% (ikke-kondenserende)
