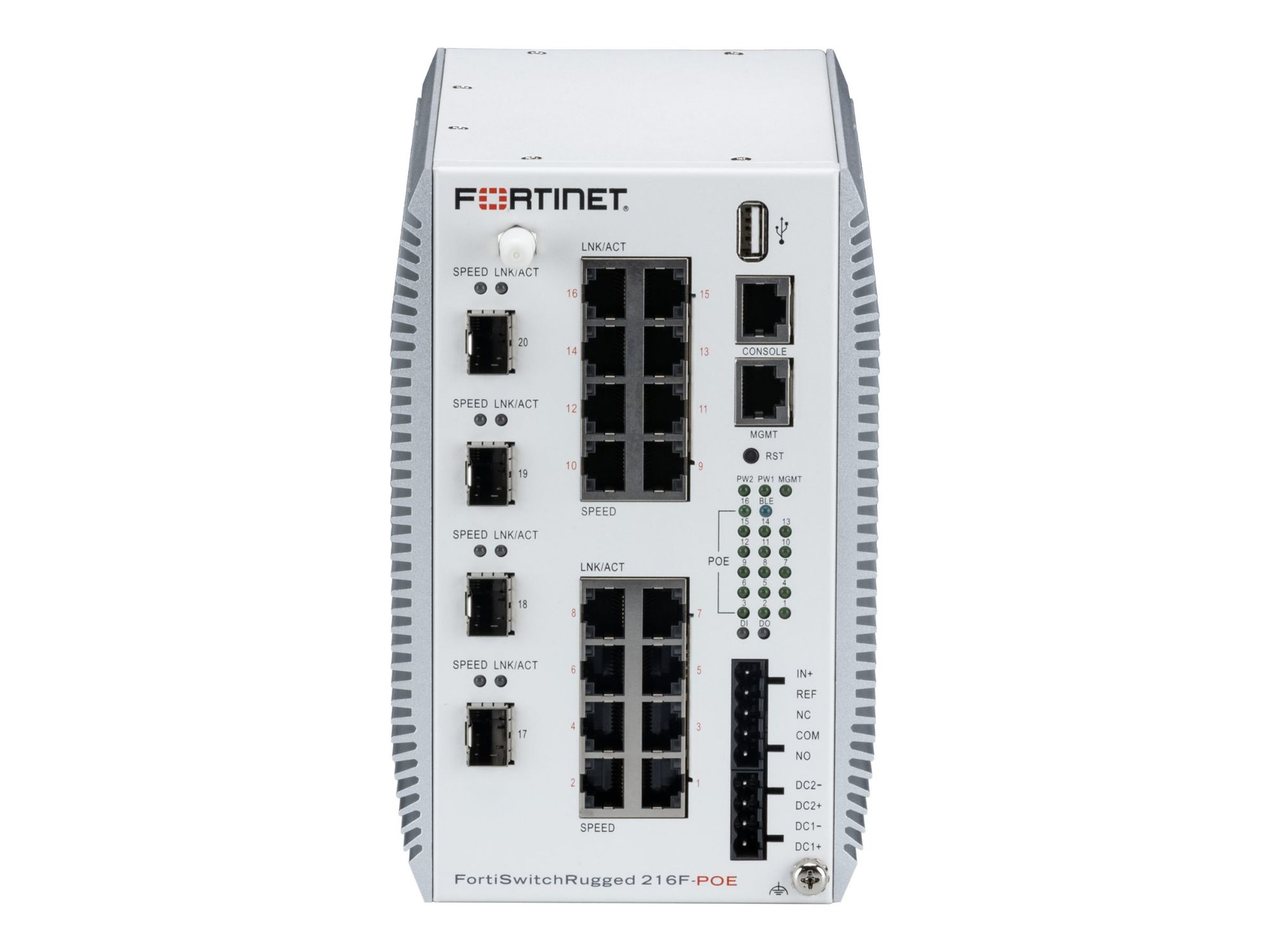

Fortinet FortiSwitch Rugged 216F-POE - Switch - L3 - Styrt - 16 x 10/100/1000 (PoE++) + 4 x 1 Gigabit / 10 Gigabit SFP+ - DIN-skinnemonterbar - PoE++ (360 W)

Tilgjengelighet: Ikke på lager
Sku: FSR-216F-POE
62 588,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The Fortinet FortiSwitch Rugged 216F-POE is designed for environments requiring robust performance and reliability. Supporting up to 2000 Spanning Tree Protocol instances and 4000 ACLs, this switch meets the demanding needs of modern networks. It features 16 ports, including 10/100/1000 (PoE++) capabilities, along with a PoE power of 90 W. The unit also supports various remote management protocols, ensuring seamless integration into existing network infrastructures. This switch operates effectively in extreme conditions with a temperature range of -40°C to 75°C and is capable of functioning in humid environments, ranging from 5% to 95% RH (non-condensing). Compliance with essential standards, including IEC and FCC, ensures its reliability in diverse applications. With a MTBF exceeding 30 years, the Fortinet FortiSwitch Rugged 216F-POE is a durable and powerful networking solution that ensures operational continuity and performance efficiency.

Robust environmental resilience

Designed to withstand extreme temperatures, the Fortinet FortiSwitch Rugged 216F-POE operates effectively between -40°C and 75°C, making it suitable for various installations.

High switching capacity

With a switching capacity of 112 Gbps and a packet buffer size of 1.5 MB, it provides performance for demanding applications.

Versatile connectivity options

The switch features 16 ports supporting 10/100/1000 (PoE++) and 4 additional SFP+ ports for flexible connectivity to meet diverse network requirements.

Comprehensive remote management

Offers a variety of remote management protocols including SSH, HTTP, and SNMP, facilitating easy integration and management within existing networks.

Long-lasting reliability

With a mean time between failures (MTBF) exceeding 30 years, this switch ensures consistent performance and durability for long-term network infrastructure needs.

Generelt
EnhetstypeSwitch - 16 porter - L3 - Styrt
UtførelseDIN-skinnemonterbar
UndertypeGigabit Ethernet
Porter16 x 10/100/1000 (PoE++) + 4 x 1 Gigabit / 10 Gigabit SFP+
Strøm via Ethernet (PoE)PoE++
PoE-budsjett360 W
YtelseKoblingskapasitet: 112 Gbps
Pakker per sekund: 166 Mpps
Latens: < 1 µs
Pakkebufferstørrelse: 1,5 Mb
KapasitetVLAN støttet: 4000
Linkaggregeringsgrupper: 8
ACL: 2000
Spanning Tree Protocol-forekomster: 32
Mac Adress Tabellstørrelse16K-oppføringer
JumborammestøtteJa
RutingprotokollStatisk IP-ruting, OSPF, STP, IGMP, RSTP, MSTP, MLD, OSPFv2, RIP, RIP-2, VRRP, BGP, IS-IS, PIM-SSM, ECMP, Bidirectional Forwarding Detection (BFD), URPF, BGP-4, OSPFv3, VRRPv3
Protokoll for fjernstyrt administrasjonMIB, Syslog, DHCP, IPv4, IPv6, Telnet, SSH, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, CLI, TFTP, RMON 1, UDP, TCP/IP, Web GUI
Autentifikasjons MetodeRADIUS, Extensible Authentication Protocol (EAP), Secure Shell (SSH)
EgenskaperUten vifte, nullstillingsknapp, PTP, HSR, PRP, Auto-negotiation, Zero-Touch Deployment, NAC, automatisk oppdagelse, LLDP-støtte, LLDP-MED, IGMP-snusing, policy basert ruting, Høy tilgjengelighet, LAG, 802.1x-verifisering, DHCP-snusing, MAC svart/hvit-liste, politikkbasert tilgangskontroll, VLAN støttet, UTM, Brannveggbeskyttelse, auto-uplink (auto MDI/MDI-X), STP Root Guard, STP BPDU Guard, Private VLAN, Storm Control, TDR, RPVST, Loop Guard, VLAN / portkartlegging, automatisk topologidetektering, IGMP-proksy, IGMP-forespørsler, MLD-snusing, MLD-proxy, MLD-søker, DHCP-overføring, DHCP-server, portspeiling, IP-MAC-binding, sFlow, ACL-støtte, DAI, IPFIX, NetFlow, IP-kildebeskytter, RA-vern, WOL, MC-LAG, MRP, DSCP-basert ToS, SNTP-støtte, FTP-støtte, SPAN, RSPAN, ERSPAN, støtte for DSCP, ToS, ECN, QoS, IPv6 RA Guard, APR støtte, VXLAN, FortiLink Mode
Tilpassede standarderIEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 1588v2, IEEE 1613, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.1Qbb, IEEE 802.1ad, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.1x, IEEE 802.1p
RAM1 GB DDR4 SDRAM
Flash-minne1 GB
StatusindikatorerLink/aktivitet/hastighet, PoE-aktivitet, Bluetooth Low Energy (BLE), styring, strøm 1, strøm 2, inngang, utgang
Ekspansjon / Tilkoplinger
Grensesnitt16 x 1000Base-T RJ-45 PoE++ - 90 W
4 x 1/10GBase-X SFP+
1 x styring (Gigabit LAN) RJ-45
1 x seriell (konsoll) RJ-45
1 x USB Type A
Strømforsyning
StrømforsyningsredundansJa
EgenskaperPower Polarity Reverse Protect
Diverse
MTBF>30 år
Tilpassede standarderFCC, RCM, VCCI, BSMI Class A, RoHS, WEEE, FCC Part 15 B Class A, ICES, EMC, Directive 2014/30/EU, EN 55032:2015 Class A, EN 55035:2017/A11:2020, CISPR 32, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Issue 7: 2020 Class A, AS/NZS CISPR 32 Class A, VCCI-CISPR 32:2016 Class A, CNS 15936: 2016 Class A, CNS 15598-1:2020, LVD 2014/35/EU, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, UL 62368-1 Third Edition, IP40
Mål og vekt
Bredde17 cm
Dybde18 cm
Høyde11.6 cm
Vekt3 kg
Fabrikantgaranti
Service og støtteBegrenset garanti - levetid
Miljøparametere
Min. driftstemperatur-40 °C
Maks. Driftstemperatur75 °C
Driftsfuktighet5 - 95% RH (non-condensing)
Min. oppbevaringstemperatur-40 °C
Maks. oppbevaringstemperatur85 °C
