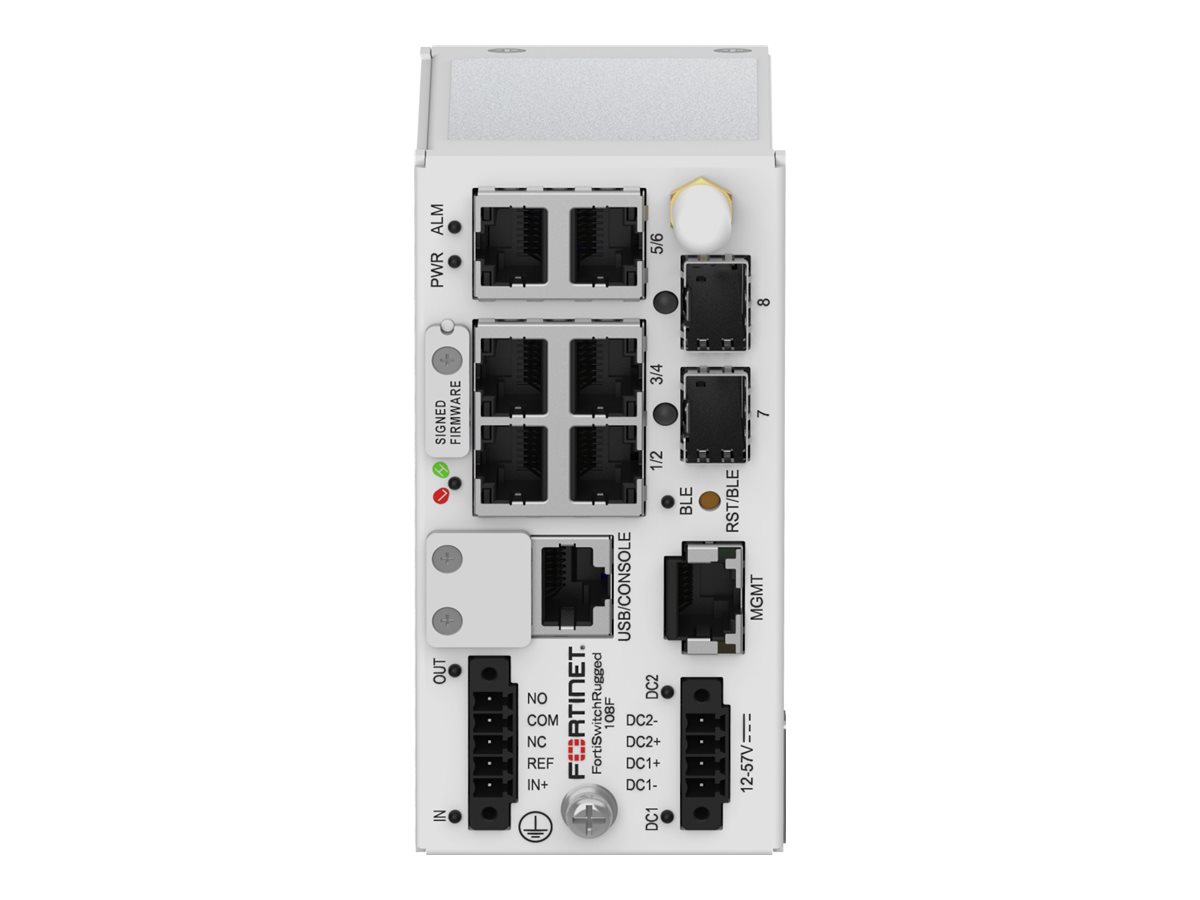

FortiSwitchRugged-108F Layer 2 ruggedized FortiGate switch controller compatible switch with 6x 1GE/100M/10M RJ45 and 2x 1GE/100M SFP. IP40 rating.

Tilgjengelighet: Ikke på lager
Sku: FSR-108F
14 328,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The Fortinet FortiSwitch Rugged 108F delivers performance in demanding environments. Designed to withstand extreme temperatures ranging from -40°C to 75°C, this switch is suitable for industrial applications and outdoor installations. With a switching capacity of 16 Gbps and the ability to support up to 16,000 MAC addresses, it ensures efficient data handling and connectivity for various network needs. Equipped with features such as firewall protection, VLAN support, and advanced networking protocols, the FortiSwitch Rugged 108F enhances network security and management. It supports multiple standards, ensuring compliance across various environments. Whether for a small business or a large enterprise, this switch offers reliability and flexibility in network design, making it a choice for organizations looking to optimize their IT infrastructure.

Robust temperature tolerance

Operates reliably in environments with temperatures ranging from -40°C to 75°C, enabling installation in various conditions without compromising performance.

High performance

Achieves a switching capacity of 16 Gbps, ensuring smooth data transfer and minimal latency for network operations.

Extensive connectivity options

Includes 6 Gigabit Ethernet ports and 2 SFP ports, facilitating versatile network configurations and connections.

Advanced security features

Incorporates firewall protection, VLAN support, and various networking protocols to maintain a secure and efficient network environment.

Compliant with multiple standards

Meets various compliance standards, providing confidence in its reliability and suitability for diverse applications.

Generelt
EnhetstypeSwitch - 6 porter - Styrt
UtførelseDIN-skinnemonterbar
UndertypeGigabit Ethernet
Porter6 x 10/100/1000 + 2 x 100/1000 SFP
YtelseKoblingskapasitet: 16 Gbps
Pakker per sekund: 23.8 Mpps
Latens: < 1 µs
Pakkebufferstørrelse: 1,5 Mb
KapasitetVLAN støttet: 4000
Linkaggregeringsgrupper: 6
ACL: 240
Spanning Tree Protocol-forekomster: 32
MAC-adresser: 16000
RutingprotokollStatisk IP-ruting, OSPF, STP, IGMP, RSTP, MSTP, MLD, OSPFv2, RIP, RIP-2, VRRP, BGP, IS-IS, PIM-SSM, ECMP, Bidirectional Forwarding Detection (BFD), URPF, BGP-4, OSPFv3, VRRPv3
Autentifikasjons MetodeRADIUS, Secure Shell (SSH), Extensible Authentication Protocol (EAP)
EgenskaperUten vifte, PTP, HSR, PRP, Auto-negotiation, Zero-Touch Deployment, NAC, automatisk oppdagelse, LLDP-støtte, LLDP-MED, IGMP-snusing, policy basert ruting, Høy tilgjengelighet, LAG, 802.1x-verifisering, DHCP-snusing, MAC svart/hvit-liste, politikkbasert tilgangskontroll, VLAN støttet, UTM, Brannveggbeskyttelse, auto-uplink (auto MDI/MDI-X), STP Root Guard, STP BPDU Guard, Private VLAN, Storm Control, TDR, RPVST, Loop Guard, VLAN / portkartlegging, automatisk topologidetektering, IGMP-proksy, IGMP-forespørsler, MLD-snusing, MLD-proxy, MLD-søker, DHCP-overføring, DHCP-server, portspeiling, IP-MAC-binding, sFlow, ACL-støtte, DAI, IPFIX, NetFlow, IP-kildebeskytter, RA-vern, WOL, MRP, DSCP-basert ToS, SNTP-støtte, FTP-støtte, SPAN, RSPAN, ERSPAN, støtte for DSCP, ToS, ECN, QoS, IPv6 RA Guard, APR støtte, VXLAN, nullstillingsknapp, FortiLink Mode
Tilpassede standarderIEEE 802.1x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 1588v2, IEEE 1613, IEEE 802.1ab (LLDP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.1Qbb, IEEE 802.1ad, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.1p
RAM1 GB DDR4 SDRAM
Flash-minne1 GB
StatusindikatorerAlarm, Bluetooth Low Energy (BLE), strøm, njullstilling, status
Ekspansjon / Tilkoplinger
Grensesnitt6 x 1000Base-T RJ-45
2 x Gigabit LAN SFP
1 x 10/100/1000Base-T RJ-45 tjeneste
1 x seriell (konsoll) RJ-45
Strømforsyning
StrømforsyningsredundansJa
EgenskaperPower Polarity Reverse Protect
Diverse
MTBF30 år
Tilpassede standarderIP40, EN 50155, EN 50121-1, EN 50121-3-2, FCC, AS/NZS CISPR 32, BSMI Class A, CISPR 32, CNS 15598-1:2020, CNS 15936: 2016 Class A, Directive 2014/30/EU, EMC, EN 55032:2015:2020 Class A, EN 55035:2017/A11:2020, EN 61000-6-4, FCC Part 15 B Class A, ICES, ICES-003:2020 Issue 7, IEC 60068-2-11, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-30, IEC 60068-2-78, IEC 60255-21-1, IEC 60255-21-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61850-3:2013, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, IEEE 1613, LVD 2014/35/EU, RCM, RoHS, UKCA, UL 62368-1 Third Edition, VCCI, VCCI-CISPR 32:2016 Class A, WEEE
Mål og vekt
Bredde5.5 cm
Dybde14 cm
Høyde11.3 cm
Vekt566 g
Fabrikantgaranti
Service og støtteBegrenset garanti - levetid
Miljøparametere
Min. driftstemperatur-40 °C
Maks. Driftstemperatur75 °C
Driftsfuktighet5 - 90% RH (non-condensing)
Min. oppbevaringstemperatur-40 °C
Maks. oppbevaringstemperatur85 °C
