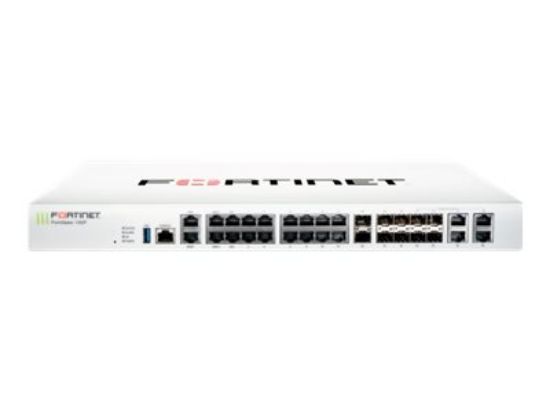

Fortinet FortiGate 100F - High Availability - sikkerhetsapparat - 10GbE - 1U - skystyring - må kjøpes i par - stasjonær / vegg / stativmonterbar

Tilgjengelighet: Ikke på lager
Sku: FG-100F-HA
29 444,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The FortiGate 100F series delivers next-generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch. Protect against cyber threats with security processor powered high performance, security efficacy and deep visibility.

High-performance throughput

With a firewall throughput of 20 Gbps, the FortiGate 100F is designed to efficiently manage extensive network traffic while preserving security integrity and operational efficiency.

Robust threat protection

The advanced threat protection throughput of 11.5 Gbps ensures comprehensive safeguards against a wide range of cyber threats, providing peace of mind for businesses.

Versatile connectivity options

Supporting multiple data link protocols such as Fast Ethernet, Gigabit Ethernet, and 10 Gigabit Ethernet, this appliance facilitates seamless connectivity within diverse network architectures.

Reliable power system

Equipped with dual internal power supplies, the FortiGate 100F enhances reliability by ensuring continuous operation even in the event of a power failure.

Efficient processing capabilities

The FortiASIC SOC4 processor integrated into the FortiGate 100F provides exceptional processing speed and efficiency, enabling the device to tackle complex security tasks without lag.

Generelt
EnhetstypeSikkerhetsapparat
Høyde (Stativenheter)1U
Bredde43.2 cm
Dybde25.4 cm
Høyde4.4 cm
Vekt3.29 kg
Prosessor / Minne / Lager
Installerte prosessorer1 x Fortinet FortiASIC SP4
Nettverkstilknytning
ProduktformfaktorStasjonær / vegg / stativmonterbar
OverføringsteknologiKablet
DatakjedeprotokollEthernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Nettverks-/transportprotokollIPSec, UDP/IP, TCP/IP, HTTPs, HTTP, IPv4, IPv6, DNS
Protokoll for fjernstyrt administrasjonHTTPS, HTTP
SkystyrtJa
YtelseIPS-gjennomløp (firmatraffikkblanding): 2,6 Gbps
NGFW-gjennomløp (bedriftstrafikkmiks): 1,6 Gbps
Trusselbeskyttelsesgjennomløp (bedriftstrafikkmiks): 1 Gbps
Brannveggjennomløp (1518-byte UDP): 20 Gbps
Brannveggjennomløp (512-byte UDP): 18 Gbps
Brannveggjennomløp (64-byte UDP): 10 Gbps
Brannvegglatens (64-byte UDP): 4.97 µs
Brannmurgjennomløp: 15 Mpps
VPN-gjennomstrømning (512-bit IPSec): 11,5 Gbps
VPN-gjennomløp (SSL): 1 Gbps
SSL inspeksjonsprosessering: 1 Gbps
Applikasjonskontroll-gjennomløp: 2,2 Gbps
CAPWAP-gjennomløp: 15 Gbps
KapasitetSamtidige TCP-økter: 1500000
Nye TCP-økter per sekund: 56000
Brannmurspolitikk: 10000
Gateway-til-gateway IPSec VPN-tunneller: 2000
Klient-til-gateway IPSec VPN-tunneller: 16000
Samtidige SSL VPN-brukere: 500
SSL inspeksjons-CPS: 1800
SSL-inspeksjon av samtidige økter: 135000
Virtuelle domener: 10
Maksimum virtuelle domener: 10
Antall FortiSwitches: 32
Antall FortiAP-enheter: 128
Antal FortiAP-enheder (tunnel): 64
Antall FortiToken-enheter: 5000
StatusindikatorerStatus, HA, strøm, WAN, alarm, DMZ, styring
EgenskaperStøtte for SD-WAN, SSL-kontroll, CAPWAP-støtte, VPN-støtte, uten vifte, AI-drevet, selvreparerende nettverk, Høy tilgjengelighet, Zero Trust Network Access (ZTNA), Intrusion Prevention System (IPS), URL-filtrering, DDoS Protection, Data Loss Prevention (DLP), innbygd ASIC, NGFW-apparat, Brannveggbeskyttelse
KrypteringsalgoritmeSSL, TLS 1.3, 256-bits SHA, 256-bit AES
Ekspansjon / Tilkoplinger
Grensesnitt12 x 1000Base-T - RJ-45
2 x 10GBase-X (FortiLink) - SFP+
4 x 1000Base-T - SFP (mini-GBIC)
4 x 1000Base-T/1000Base-X - RJ-45/SFP (mini-GBIC)
2 x 1000Base-T - RJ-45 (WAN)
2 x 1000Base-T (HA) - RJ-45
2 x 10/100/1000Base-T (administrasjon) - RJ-45 (DMZ)
1 x konsoll - RJ-45
1 x USB 3.0
Diverse
Tilpassede standarderFCC, RCM, VCCI, BSMI, UL, cUL, CB, USGv6
PrissettingstypeMå kjøpes i par
Strømforsyning
StrømenhetIntern strømforsyning
Installert antall2
Max støttet Ant2
StrømforsyningsredundansJa
Påkrevd nettspenningAC 100-240 V (50/60 Hz)
Strømforbruk ved drift26.5 watt
80 PLUS-sertifisering80 PLUS
Programvare / Systemkrav
OS MedfølgerFortiOS
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur40 °C
Driftsfuktighet10 - 90% (ikke-kondenserende)
