Fortinet FortiGate Rugged 70G-5G-Dual - Sikkerhetsapparat - 1GbE, Bluetooth LE - 5G - 5G n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n75/n76/n77/n78/n79 / LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B34/B38/B39/B40/B41/B42/B43/B46/B48/B66/B71 / HSPA+ B1/B2/B4/B5/B6/B8/B - skystyring - skinnemonterbar

Tilgjengelighet: Ikke på lager
Sku: FGR-70G-5G-DUAL
52 888,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The Fortinet FortiGate Rugged 70G-5G-Dual is designed for secure connectivity in challenging environments. This security appliance features a ruggedized design, supporting both wired and wireless connectivity to ensure reliable performance. With robust processing capability and multiple firewall policies, it effectively handles data traffic while maintaining high levels of security through various encryption protocols, including 256-bit AES and TLS 1.3. The device also provides advanced security features such as intrusion prevention, URL filtering, and anti-malware protection, making it an ideal solution for organizations seeking to enhance network security.

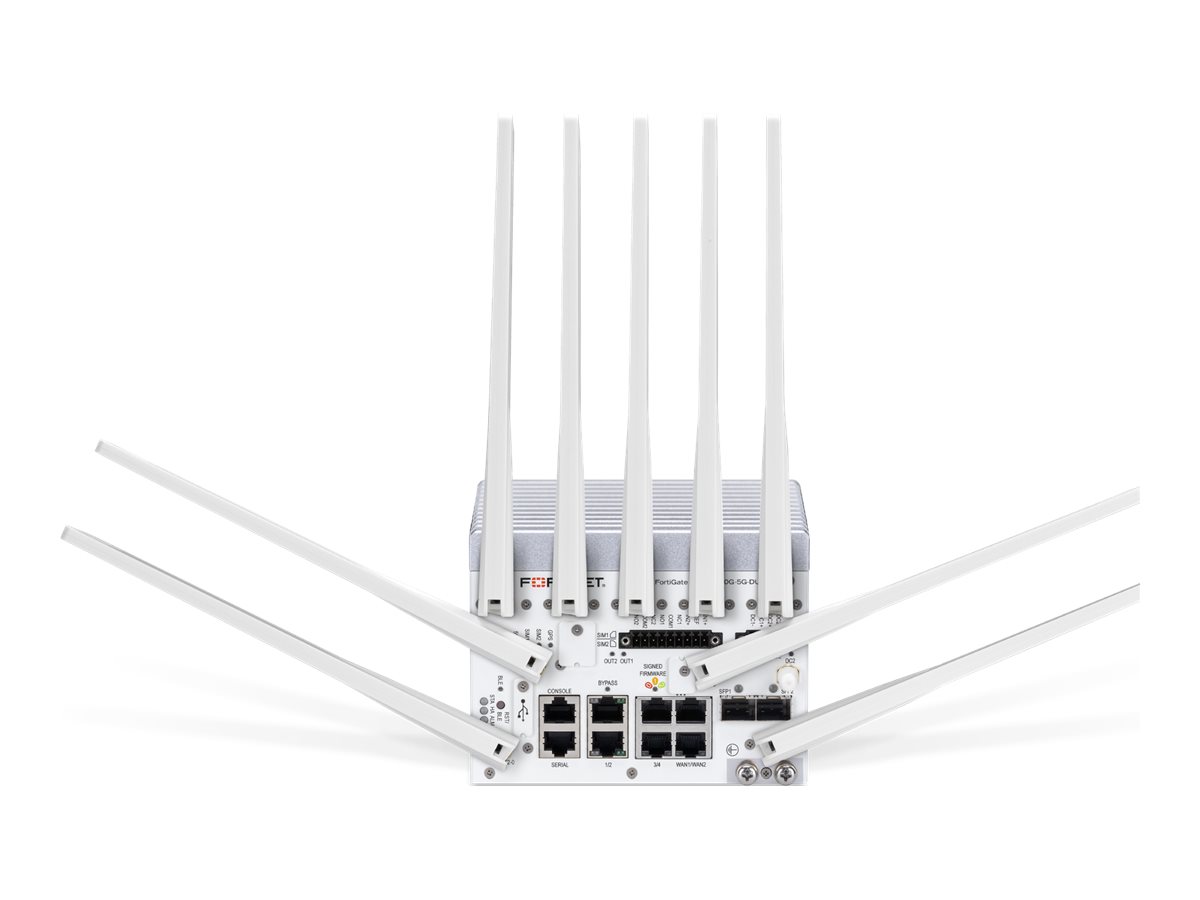

Equipped with 9 external detachable antennas, the FortiGate Rugged provides impressive mobile broadband performance, facilitating connections across multiple cellular protocols including 5G and LTE. It offers features for scalability with support for up to 64 virtual domains and allows management of multiple FortiAP and FortiSwitch devices. The device is compliant with multiple environmental and safety standards, ensuring it can withstand extreme temperatures and humidity levels, thus suitable for diverse deployment locations. With built-in capabilities for self-healing and zero trust network access, it is designed to adapt to evolving network demands, ensuring a secure and stable connection.

Reliable performance

With a firewall throughput of 1.1 Gbps and support for high availability, the FortiGate Rugged 70G-5G-Dual delivers dependable security and connectivity, making it suitable for a variety of environments.

Comprehensive security capabilities

This device includes features such as Deep Packet Inspection (DPI) and DDoS attack prevention, ensuring robust protection against a wide array of cyber threats while supporting advanced security protocols.

Flexible connectivity options

Equipped with multiple Ethernet ports and 4G/5G mobile broadband support, the appliance allows seamless integration into various networks, enhancing connectivity through both wired and wireless methods.

Broad environmental resilience

Designed to operate in temperatures ranging from -40 °C to 75 °C and with a humidity range of 5-95% (non-condensing), this device can perform reliably in harsh conditions.

Efficient power management

The device's operational power consumption is just 19.9 watts, supporting external power adapters and redundancy options, which contributes to sustainable operation without compromising performance.

Generelt
EnhetstypeSikkerhetsapparat
Robust designInnendørs
Innebygde enheterSD-kortleser
Bredde10.4 cm
Dybde12.2 cm
Høyde13.9 cm
Prosessor / Minne / Lager
Installerte prosessorer1 x Fortinet FortiASIC SP5
Nettverkstilknytning
ProduktformfaktorDIN-skinnemonterbar
OverføringsteknologiTrådløs, kablet
DatakjedeprotokollEthernet, Fast Ethernet, Gigabit Ethernet, Bluetooth LE
Nettverks-/transportprotokollTCP/IP, IPSec, DNS, HTTP, HTTPs, IPv4, IPv6, UDP
Protokoll for fjernstyrt administrasjonHTTP, HTTPS, IPv4, IPv6, TCP/IP, UDP, DNS
SkystyrtJa
YtelseIPv4 bannmur-gjennomløp (1518-byte UDP): 8 Gbps
IPv4 bannmur-gjennomløp (512-byte UDP): 8 Gbps
IPv4 bannmur-gjennomløp (64-byte UDP): 8 Gbps
Brannvegglatens (64-byte UDP): 5.82 μs
Brannmurgjennomløp: 12 Mpps
VPN-gjennomstrømning (512-bit IPSec): 7,1 Gbps
SSL inspeksjonsprosessering: 1,3 Gbps
Applikasjonskontroll-gjennomløp: 3 Gbps
IPS-gjennomløp: 2,5 Gbps
NGFW throughput: 1,5 Gbps
Advanced threat protection throughput: 1,1 Gbps
KapasitetSamtidige TCP-økter: 1400000
Nye TCP-økter per sekund: 85000
Brannmurspolitikk: 5000
Gateway-til-gateway IPSec VPN-tunneller: 200
Klient-til-gateway IPSec VPN-tunneller: 500
SSL inspeksjons-CPS: 715
SSL-inspeksjon av samtidige økter: 1400000
Virtuelle domener: 10
Maksimum virtuelle domener: 10
Antall FortiAP-enheter: 64
Antal FortiAP-enheder (tunnel): 32
Antall FortiToken-enheter: 500
Antall FortiSwitches: 24
StatusindikatorerStrøm, status, alarm, HA, GPS, bypass, 5G, hastighet/aktivitet, SIM1, SIM2, Bluetooth Low Energy (BLE)
EgenskaperVPN-støtte, kan administreres, Høy tilgjengelighet, Intrusion Prevention System (IPS), URL-filtrering, Deep Packet Inspection (DPI), DDos-angrepsforebygging, MIMO-teknologi, anti-malware-beskyttelse, Trusted Platform Module (TPM), nullstillingsknapp, uten vifte, Data Loss Prevention (DLP), robust, innbygd ASIC, Wi-Fi Diversity, SSL-kontroll, DNS-filtrering, støtte for SD-WAN, selvreparerende nettverk, GNSS Bias, URL-beskyttelse, Zero Trust Network Access (ZTNA), NGFW-apparat, AI/ML drevet, avansert sandkasse deteksjon, Secure Access Service Edge (SASE)
KrypteringsalgoritmeSSL, 256-bit AES, 256-bits SHA, TLS 1.3
Antenne
AntenneEksternt avtakbar
Antall antenner9
Kommunikasjoner
Mobil bredbåndstilgangJa
Generasjon5G
MobiltelefonsprotokollUMTS, WCDMA, HSPA+, LTE
Mobiltelefonsbånd5G n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n75/n76/n77/n78/n79 / LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B34/B38/B39/B40/B41/B42/B43/B46/B48/B66/B71 / HSPA+ B1/B2/B4/B5/B6/B8/B
Støttede flash-minnekortmicroSD
Internet of Things (IoT)
Kompatibel med Internet of Things (IoT)Ja
KommunikasjonsteknologiBluetooth Low Energy (LE)
Ekspansjon / Tilkoplinger
Utvidelsesspor2 (total) / 2 (ledig) x SIM-kort
Grensesnitt4 x 1000Base-T - RJ-45
2 x 1000Base-T - RJ-45 (WAN)
2 x 1000Base-X - SFP (mini-GBIC)
1 x forbistyring - RJ-45
1 x serial - RJ-45
1 x USB 2.0 - Type A
1 x konsoll - RJ-45
8 x antenne - SMA
1 x GPS-inn - SMA
Digital utgang/inngang
Diverse
Tilpassede standarderUL, cUL, CB, JATE, IC, FCC, FCC Part 15 A, ANATEL, TELEC, PTCRB, GCF, IP40, VCCI Class A, NCC, EN 50581:2012, RCM, IEC 61850-3, IEEE 1613, RSS-102 Issue 5, USGv6, EN 55032:2015 Class A, EN 62368-1:2014, RED, IEC 62368-1: 2014 Second Edition, ETSI EN 300 328 V2.2.2 (2019-07), EN 50665:2017, EN/IEC 63000:2018, ETSI EN 301 489-1 V2.2.3 (2019-11), EN IEC 62368-1:2020, IEC 62368-1:2018 Third Edition, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1, EN IEC 62311:2020, ETSI EN 301 489-17 V3.2.4 (2020-09), EN 50121-1:2017, ETSI EN 301 489-19 V2.1.1 (2019-04), ETSI EN 301 489-52 V1.2.1 (2021-11), ETSI EN 301 908-1 V15.1.1 (2021-09), IEC 61850-3:2013, EN 301 908-1 V13.1.1 (2019-11), EN 303 413 V1.2.1 (2021-04), FCC Part 15 Subpart C 15.247, FCC 47 CFR Part 2.1091, ISED RSS-247 Issue 2, EN 50155:2021, EN 50121-3-2:2016+A1:2019, EN 50121-4:2016+A1:2019
Strømforsyning
StrømenhetEkstern strømadapter
Max støttet Ant2
StrømforsyningsredundansJa
Strømforbruk ved drift19.9 watt
Programvare / Systemkrav
OS MedfølgerFortiOS
Miljøparametere
Min. driftstemperatur-40 °C
Maks. Driftstemperatur75 °C
Driftsfuktighet5 - 95 % (ikke-kondenserende)
