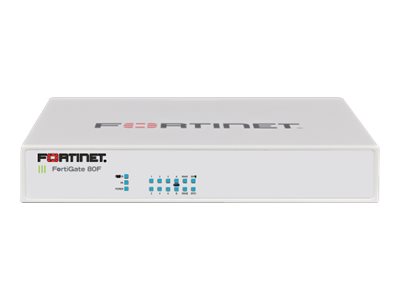

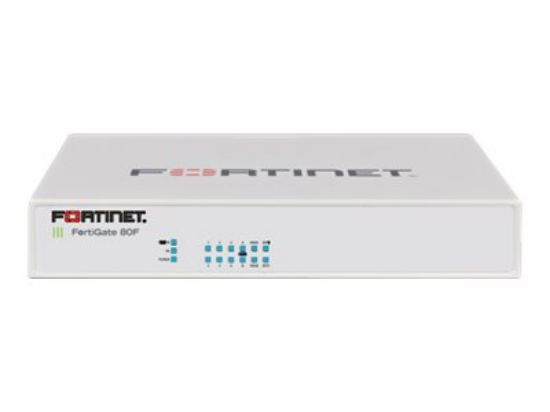

Fortinet FortiGate 80F-BYPASS - High Availability - sikkerhetsapparat - 1GbE - for pair configuration bypass - skrivebord

Tilgjengelighet: Ikke på lager
Sku: FG-80F-BYPASS-HA
19 476,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The FortiGate 80F series provides an application-centric, scalable, and secure SD-WAN solution in a compact, fanless, desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and secure SD-WAN in a simple, affordable, and easy to deploy solution.

Secure SD-WAN

Consistent business application performance with accurate detection, dynamic WAN path steering on any WAN transport. Accelerated multi-cloud access for faster SaaS adoption with cloud-on-ramp. Self-healing networks with WAN edge high availability, sub-second traffic switchover-based and real-time bandwidth compute-based traffic steering.

3G/4G WAN connectivity

The FortiGate 80F series includes a 3.0 USB port that allows you to plug in a compatible third-party 3G/4G USB modem, providing additional WAN connectivity or a redundant link for maximum reliability.

Compact and reliable form factor

Designed for small environments, you can place it on a desktop or wall mount it. It is small, lightweight yet highly reliable with superior MTBF, minimizing the chance of a network disruption.

Generelt
EnhetstypeSikkerhetsapparat
Bredde21.6 cm
Dybde16 cm
Høyde3.85 cm
Vekt2.4 kg
Prosessor / Minne / Lager
Installerte prosessorer1 x Fortinet FortiASIC SOC4
Nettverkstilknytning
ProduktformfaktorSkrivebord
OverføringsteknologiKablet
DatakjedeprotokollEthernet, Fast Ethernet, Gigabit Ethernet
Nettverks-/transportprotokollIPSec
YtelseIPS-gjennomløp: 1,4 Gbps
NGFW throughput: 1 Gbps
Trusselvernsgjennomløp: 900 Mbps
Brannveggjennomløp (1518-byte UDP): 10 Gbps
Brannveggjennomløp (512-byte UDP): 10 Gbps
Brannveggjennomløp (64-byte UDP): 7 Gbps
Brannvegglatens (64-byte UDP): 4 µs
Brannmurgjennomløp: 10.5 Mpps
VPN-gjennomstrømning (512-bit IPSec): 6,5 Gbps
VPN-gjennomløp (SSL): 950 Mbps
VPN-gjennomløp (SSL): 950 Mbps
SSL inspeksjonsprosessering: 715 Mbps
Applikasjonskontroll-gjennomløp: 1,8 Gbps
CAPWAP-gjennomløp: 9 Gbps
KapasitetSamtidige TCP-økter: 1500000
Nye TCP-økter per sekund: 45000
Brannmurspolitikk: 5000
Gateway-til-gateway IPSec VPN-tunneller: 200
Klient-til-gateway IPSec VPN-tunneller: 2500
Samtidige SSL VPN-brukere: 200
SSL inspeksjons-CPS: 700
SSL-inspeksjon av samtidige økter: 100000
Virtuelle domener: 10
Antall FortiAP-enheter: 32
Antall FortiAP-enheter (tunnelmodus): 16
Antall FortiToken-enheter: 500
StatusindikatorerBypass, HA, strøm, status, WAN
EgenskaperVPN-støtte, 3G/4G USB Dongle Support, uten vifte, Høy tilgjengelighet
KrypteringsalgoritmeTLS 1.3, SSL
Ekspansjon / Tilkoplinger
Grensesnitt6 x 1000Base-T - RJ-45
2 x 1000Base-T/1000Base-X - RJ-45/SFP (mini-GBIC) (WAN)
1 x USB 3.0 - Type A
1 x konsoll - RJ-45
2 x FortiLink - RJ-45
2 x forbistyring - RJ-45
Diverse
Tilpassede standarderFCC, ICES, RCM, VCCI, BSMI, UL, cUL, CB, ICSA Antivirus, ICSA Firewall-godkjent, ICSA IPS, ICSA IPSec-godkjent, ICSA SSL-VPN
PrissettingstypeFor parkonfigurasjonsbypass
Strømforsyning
StrømenhetEkstern strømadapter
Installert antall2
Påkrevd nettspenningAC 120/230 V (50/60 Hz)
Strømforbruk ved drift15.4 watt
Programvare / Systemkrav
OS MedfølgerFortiOS
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur40 °C
Driftsfuktighet10 - 90% (ikke-kondenserende)
