FortiGate-70G-PoE Hardware plus 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)

Tilgjengelighet: Ikke på lager
Sku: FG-70G-POE-BDL-950-12
19 848,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The Fortinet FortiGate 70G-POE is designed to enhance network security and performance with its capabilities. This security appliance supports a range of firewall policies and VPN connections, allowing for deployment options. With the ability to handle up to 100,000 concurrent TCP sessions and support for 48 FortiAP devices, the FortiGate 70G-POE adapts to the needs of various environments, ensuring reliable connectivity and robust protection.

Equipped with a fanless design for silent operation, this desktop form factor unit provides efficient performance with a total power budget of 60 W. The FortiGate 70G-POE excels in throughput, achieving up to 1.3 Gbps for firewall throughput and 1.4 Gbps for IPS throughput. It is also compatible with various protocols, including UDP/IP and HTTPS, ensuring integration into existing network infrastructures while maintaining security standards.

Robust performance

Deliver up to 1.3 Gbps firewall throughput and 1.4 Gbps IPS throughput, ensuring efficient handling of data traffic.

Advanced security

Employ SSL inspection with an SSL inspection throughput of 7.1 Gbps and encryption algorithms like 256-bit AES.

Versatile connectivity

Connect up to 48 FortiAP devices and support multiple protocols, including IPSec and HTTPS, for diversified network applications.

Efficient design

Fanless and compact design allows for deployment in various environments without generating excessive noise.

High scalability

Support for up to 100,000 concurrent TCP sessions and 715 maximum FortiTokens enables growth as network demands increase.

Generelt
EnhetstypeSikkerhetsapparat
Tjenestebundter1 års FortiCare Premium Support + 1 års FortiGuard Unified Threat Protection (UTP)
Bredde21.6 cm
Dybde16 cm
Høyde4.05 cm
Vekt973 g
Prosessor / Minne / Lager
Installerte prosessorerFortinet FortiASIC SP5
Nettverkstilknytning
ProduktformfaktorSkrivebord
OverføringsteknologiKablet
DatakjedeprotokollGigabit Ethernet
Nettverks-/transportprotokollHTTP, HTTPs, DNS, IPv6, IPSec, UDP/IP
Protokoll for fjernstyrt administrasjonHTTP, HTTPS
YtelseIPS-gjennomløp: 2,5 Gbps
NGFW throughput: 1,5 Gbps
Trusselvernsgjennomløp: 1,3 Gbps
Brannveggjennomløp (1518-byte UDP): 10 Gbps
Brannveggjennomløp (512-byte UDP): 10 Gbps
Brannveggjennomløp (64-byte UDP): 10 Gbps
Brannvegglatens (64-byte UDP): 2.46 μs
Brannmurgjennomløp: 15 Mpps
VPN-gjennomstrømning (512-bit IPSec): 7,1 Gbps
SSL inspeksjonsprosessering: 1,4 Gbps
Applikasjonsstyring (HTTP 64K): 3,6 Gbps
CAPWAP Gjennomstrømning (HTTP 64K): 6.8 Gbps
KapasitetSamtidige TCP-økter: 1400000
Nye TCP-økter per sekund: 100000
Brannmurspolitikk: 5000
Gateway-til-gateway IPSec VPN-tunneller: 200
Klient-til-gateway IPSec VPN-tunneller: 500
SSL inspeksjons-CPS: 715
SSL-inspeksjon av samtidige økter: 140000
Virtuelle domener: 10
Maksimum virtuelle domener: 10
Antall FortiSwitches: 24
Antall FortiAP-enheter: 96
Antal FortiAP-enheder (tunnel): 48
Maksimalt antall FortiTokens: 500
StatusindikatorerStatus, strøm, njullstilling, Bluetooth Low Energy (BLE), lenke/aktivitet, hastighet, WAN, fastvare, PoE max, Wi-Fi
EgenskaperStøtte for SD-WAN, NGFW-apparat, Zero Trust Network Access (ZTNA), Trusted Platform Module (TPM), AI-drevet, Bluetooth Low Energy (BLE), CAPWAP-støtte, Høy tilgjengelighet, VPN-støtte, uten vifte, 60 w totalt strømbudsjett
KrypteringsalgoritmeSSL, TLS 1.3, 256-bit AES, 256-bits SHA
Ekspansjon / Tilkoplinger

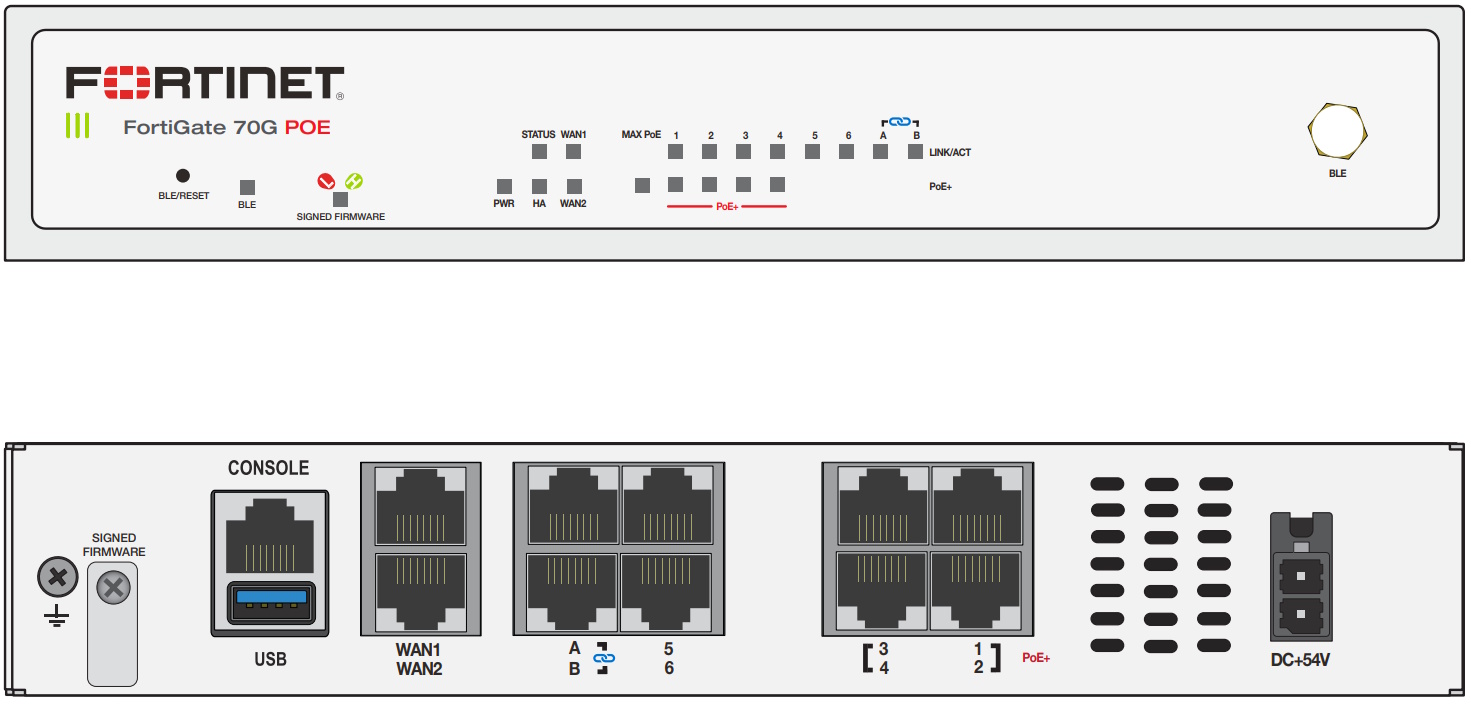

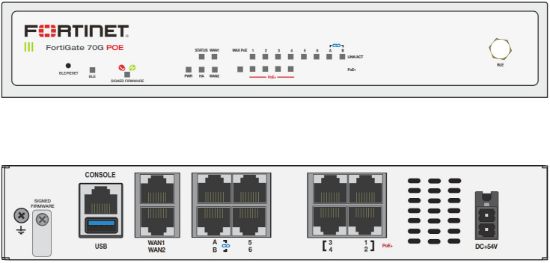

Grensesnitt6 x 1000Base-T - RJ-45
2 x 1 Gigabit Ethernet (High Availability) - RJ-45 (WAN)
4 x 1000Base-T (PoE+) - RJ-45
2 x 1000Base-T (FortiLink) - RJ-45
1 x konsoll - RJ-45
1 x USB - Type A
Diverse
Tilpassede standarderFCC, ICES, RCM, VCCI, BSMI, UL, cUL, CB, USGv6
Strømforsyning
Power Over Ethernet (PoE)-støttePoE+
StrømenhetEkstern strømadapter
Påkrevd nettspenningAC 100-240 V (50/60 Hz)
Strømforbruk ved drift70.3 watt
80 PLUS-sertifisering80 PLUS
Programvare / Systemkrav
OS MedfølgerFortiOS
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur40 °C
Driftsfuktighet10 - 90% (ikke-kondenserende)
