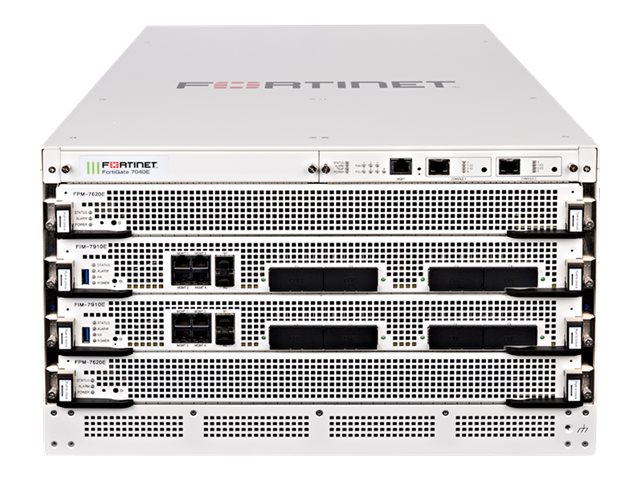

FortiGate-7040E-9-DC Hardware plus 1 Year Hardware plus FortiCare Premium and FortiGuard Enterprise Protection

Tilgjengelighet: Ikke på lager
Sku: FG-7040E-9-DC-BDL-809-12
4 348 804,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The FortiGate 7000E series delivers high-performance, advanced capabilities for large enterprises and service providers. With multiple high-speed interfaces, high-port density, and high throughput, ideal deployments are at the enterprise edge, hybrid data center core, and across internal segments. Leverage powerful IPS, SSL Inspection, and advanced threat protection to optimize your network's performance. Fortinet's security-driven networking approach provides tight integration of the network to the advanced generation of security.

Advanced firewall

Reduces the complexity and maximizes your ROI by integrating threat protection security capabilities into a single high-performance network security appliance, powered by Fortinet's Security Processing Unit (SPU). Full visibility into users, devices, applications across the entire attack surface and consistent security policy enforcement irrespective of asset location. Protects against network exploitable vulnerabilities with industry-validated IPS security effectiveness, low latency and optimized network performance.

Validated IPS performance

Purpose-built security processors delivering industry-validated IPS performance with high throughput and low latency. Deploy virtual patches at the network level to protect against network exploitable vulnerabilities and optimize network protection time. Deep packet inspection at wire speeds offers unparalleled threat visibility into network traffic including traffic encrypted. Proactively blocks sophisticated attacks in real time with advanced threat protection provided by the intelligence services of the Fortinet Security Fabric.

Powerful segmentation

Segmentation that adapts to any network topology, delivering end-to-end security from the branch level to data centers and extending to multiple clouds. Reduce security risks by improving network visibility from the components of the Fortinet Security Fabric, which adapt access permissions to levels of trust and enforce access control effectively and efficiently. Delivers defense in depth security-powered by high-performance L7 inspection and remediation by Fortinet's SPU. Protects critical business applications and helps implement any compliance requirements without network redesigns.

Mobile Security for 4G, 5G, and IOT

SPU-accelerated, high-performance CGNAT and IPv4 and IPv6 traffic for 4G SGi LAN and 5G N6 security. User plane security enabled by full threat protection and visibility into GTP-U inspection. 4G and 5G security for user and data plane traffic SCTP, GTPU/C and SIP that provides protection against attacks. High-speed interfaces to enable deployment flexibility.

Generelt
EnhetstypeSikkerhetsapparat
Tjenestebundter1 år FortiCare Premium støtte + 1 år FortiGuard Enterprise beskyttelse
Høyde (Stativenheter)6U
Bredde44 cm
Dybde65 cm
Høyde26.67 cm
Vekt69.6 kg
Buntet med2 x FPM-7620E prosessormoduler, 2 x FIM-79xxE-C, 1 x administratormodul
Prosessor / Minne / Lager
Installerte prosessorer2 x Fortinet FortiASIC CP9/NP6
Nettverkstilknytning
ProduktformfaktorRackmonterbar
OverføringsteknologiKablet
Nettverks-/transportprotokollTCP/IP, UDP/IP, IPSec, SCTP, HTTP, HTTPs, IPv4, IPv6
Protokoll for fjernstyrt administrasjonHTTP, HTTPS
YtelseBrannveggjennomløp (1518-byte UDP): 315 Gbps
Brannveggjennomløp (512-byte UDP): 310 Gbps
Brannveggjennomløp (64-byte UDP): 200 Gbps
Brannvegglatens (64-byte UDP): 7 µs
Brannmurgjennomløp: 300 Mpps
VPN-gjennomstrømning (512-bit IPSec): 100 Gbps
VPN-gjennomløp (SSL): 15 Gbps
IPS-gjennomløp (firmatraffikkblanding): 100 Gbps
SSL inspeksjonsprosessering: 60 Gbps
Applikasjonskontroll-gjennomløp: 80 Gbps
NGFW throughput: 60 Gbps
Trusselvernsgjennomløp: 48 Gbps
KapasitetSamtidige TCP-økter: 160000000
Nye TCP-økter per sekund: 950000
Brannmurspolitikk: 200000
Gateway-til-gateway IPSec VPN-tunneller: 16000
Klient-til-gateway IPSec VPN-tunneller: 64000
Samtidige SSL VPN-brukere: 48000
SSL inspeksjons-CPS: 32500
SSL-inspeksjon av samtidige økter: 12000000
Virtuelle domener: 10
Maksimum virtuelle domener: 500
Antall FortiSwitches: 256
StatusindikatorerStrøm, status, alarm
EgenskaperVPN-støtte, CAPWAP-støtte, SSL-kontroll
KrypteringsalgoritmeSSL, 256-bit AES, 256-bits SHA, TLS 1.2, TLS 1.3
Ekspansjon / Tilkoplinger
Utvidelsesspor2 (total) / 0 (ledig) x prosessor modul
2 (total) / 0 (ledig) x grensesnittmodul
1 (total) / 0 (ledig) x hylleadministrator
Diverse
Tilpassede standarderUL, VCCI, BSMI, cUL, CB, FCC, ICES, RCM
Strømforsyning
StrømenhetIntern strømforsyning - hot-plug
Installert antall3
Max støttet Ant4
StrømforsyningsredundansJa
Påkrevd nettspenningDC -48 V
Strømforbruk ved drift1800 watt
Programvare / Systemkrav
OS MedfølgerFortiOS
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur40 °C
Driftsfuktighet20 - 90% (ikke-kondenserende)
