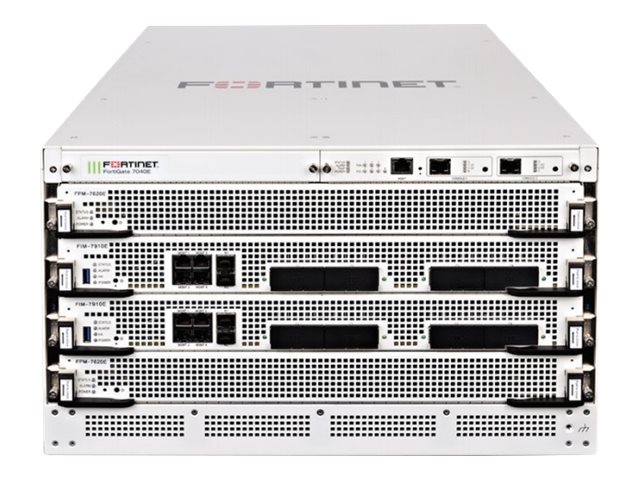

FortiGate-7040E-8-DC 6U 4-slot chassis with 2x FPM-7620E Processor Modules, 2x FIM-79xxE-C specified at purchase, 1x Manager Module and 3x hot swappable redundant DC PSU

Tilgjengelighet: Ikke på lager
Sku: FG-7040E-8-DC
2 154 224,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The FortiGate 7000E series delivers ultra-high performance NGFW security services for large enterprises and data center environments needing uncompromising protection from cyber threats and malware, at the edge and in the core. At speeds of up to 100 Gbps NGFW throughput combined with simplicity of management, the 7000E series is an extremely fast and advanced NGFW solution.

  • Protects against known exploits, malware and malicious URLs using continuous threat intelligence provided by FortiGuard Labs security services
  • Protects against unknown attacks using dynamic analysis and provides automated mitigation to stop targeted attacks
  • Delivers advanced threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
  • Provides great performance and protection for SSL encrypted traffic
  • Hot swappable modules and upgradeability to meet growing performance and security needs
  • Delivers extensive network interface flexibility with multiple high-speed interface modules
  • High performance VPN capabilities to inter-connect on-premise data centers with hosted data center resources in hybrid or public cloud
  • Enables flexible deployment modes that fit into organizations' evolving network infrastructure
  • Centralized licensing simplifies management and maintenance
  • Single Pane of Glass with Network Operations Center (NOC) view provides 360° visibility to identify issues quickly and intuitively
Generelt
EnhetstypeSikkerhetsapparat
Høyde (Stativenheter)6U
Innebygde enheterLED-panel
Bredde44 cm
Dybde65 cm
Høyde26.4 cm
Vekt41 kg
Buntet med2 x Fortinet Interface Module FIM-79xxE
Prosessor / Minne / Lager
Installerte prosessorer2 x Fortinet FortiASIC CP9/NP6
Maks. antall som støttes2
Nettverkstilknytning
ProduktformfaktorRackmonterbar
OverføringsteknologiKablet
Nettverks-/transportprotokollTCP/IP, UDP/IP, IPSec
Protokoll for fjernstyrt administrasjonHTTP, CLI
YtelseBrannveggjennomløp (1518-byte UDP): 315 Gbps
Brannveggjennomløp (512-byte UDP): 310 Gbps
Brannveggjennomløp (64-byte UDP): 200 Gbps
Brannvegglatens (64-byte UDP): 7 µs
Brannmurgjennomløp: 300 Mpps
VPN-gjennomstrømning (512-bit IPSec): 100 Gbps
IPS-gjennomløp (HTTP): 140 Gbps
IPS-gjennomløp: 60 Gbps
SSL inspeksjonsprosessering: 50 Gbps
Applikasjonskontroll-gjennomløp (AVC): 80 Gbps
NGFW throughput: 50 Gbps
Trusselvernsgjennomløp: 40 Gbps
VPN-gjennomløp (SSL): 15 Gbps
KapasitetSamtidige TCP-økter: 160000000
Nye TCP-økter per sekund: 950000
Brannmurspolitikk: 200000
Gateway-til-gateway IPSec VPN-tunneller: 40000
Klient-til-gateway IPSec VPN-tunneller: 64000
Samtidige SSL VPN-brukere: 48000
Virtuelle domener: 500
Antall FortiClient-enheter: 20000
Antall FortiToken-enheter: 5000
StatusindikatorerStrøm, temperatur, status, alarm, vifte, konsoll
EgenskaperModulær design, hot-swap' modulbytte, VPN-støtte, kan administreres, Høy tilgjengelighet, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), internettrusselbeskyttelse, applikasjonsfiltrering, 3 driftutskiftbare vifter, Data Center Firewall (DCFW), Carrier-Class Firewall (CCFW)
KrypteringsalgoritmeSSL, SHA-1, 256-bit AES, TLS 1.2
Ekspansjon / Tilkoplinger
Utvidelsesspor4 (total) / 0 (ledig) x utvidelsesspor
Grensesnitt1 x styring - RJ-45
2 x konsoll
Diverse
Tilleggsutstyr inkludertMonteringssett
Medfølgende kabler2 x konsollkabel
1 x nettverkskabel
Tilpassede standarderUL, VCCI, BSMI, cUL, CB, FCC, ICES, RCM
Strømforsyning
StrømenhetIntern strømforsyning - hot-plug
Installert antall3
Max støttet Ant4
StrømforsyningsredundansJa
Strømforbruk ved drift1800 watt
Programvare / Systemkrav
OS MedfølgerFortiOS 5
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur40 °C
Driftsfuktighet20 - 90% (ikke-kondenserende)
