Beskrivelse

The FortiGate 7000E series delivers ultra-high performance NGFW security services for large enterprises and data center environments, needing uncompromising protection from cyber threats and malware, at the edge and in the core. At speeds of up to 100 Gbps NGFW throughput combined with simplicity of management, the 7000E series is the extremely fast and advanced NGFW solution.

  • Protects against known exploits, malware and malicious URLs using continuous threat intelligence
  • Protects against unknown attacks using dynamic analysis and provides automated mitigation to stop targeted attacks
  • Delivers excellent threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
  • Provides high performance and protection for SSL encrypted traffic
  • Hot-swappable modules and upgradeability to meet growing performance and security needs
  • Delivers extensive network interface flexibility with multiple high-speed interface modules
  • High-performance VPN capabilities to inter-connect on-premise data centers with hosted data center resources in hybrid or public cloud
  • Enables flexible deployment modes, that fit into organizations' evolving network infrastructure
  • Centralized licensing simplifies management and maintenance
Generelt
EnhetstypeSikkerhetsapparat
Tjenestebundter3 år FortiCare Premium Support + 3 år FortiGuard Enterprise Protection
Høyde (Stativenheter)6U
Bredde44 cm
Dybde65 cm
Høyde26.67 cm
Vekt61.3 kg

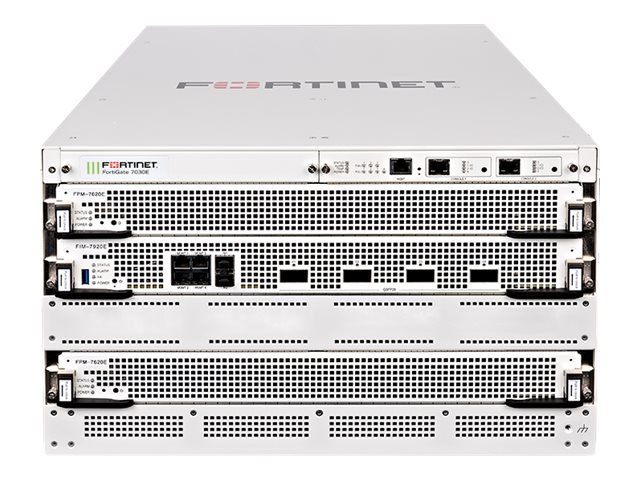

Buntet med2 x FPM-7620E prosessormoduler, FIM-7920E og administratormodul
Prosessor / Minne / Lager
Installerte prosessorer2 x Fortinet FortiASIC CP9/NP6
Nettverkstilknytning
ProduktformfaktorRackmonterbar
OverføringsteknologiKablet
DatakjedeprotokollGigabit Ethernet, 10 Gigabit Ethernet, 100 Gigabit Ethernet
Nettverks-/transportprotokollTCP/IP, UDP/IP, IPSec, SCTP, HTTP, HTTPs, IPv4, IPv6
Protokoll for fjernstyrt administrasjonHTTP, HTTPS
YtelseBrannveggjennomløp (1518-byte UDP): 155 Mbps
Brannveggjennomløp (512-byte UDP): 155 Mbps
Brannveggjennomløp (64-byte UDP): 155 Mbps
Brannvegglatens (64-byte UDP): 7 µs
Brannmurgjennomløp: 220 Mbps
VPN-gjennomstrømning (512-bit IPSec): 40 Gbps
VPN-gjennomløp (SSL): 15 Gbps
IPS-gjennomløp (firmatraffikkblanding): 60 Gbps
SSL inspeksjonsprosessering: 39,9 Gbps
Applikasjonskontroll-gjennomløp: 65 Gbps
NGFW throughput: 50 Gbps
Trusselvernsgjennomløp: 35 Gbps
KapasitetSamtidige TCP-økter: 160000000
Nye TCP-økter per sekund: 900000
Brannmurspolitikk: 200000
Gateway-til-gateway IPSec VPN-tunneller: 16000
Klient-til-gateway IPSec VPN-tunneller: 64000
Samtidige SSL VPN-brukere: 48000
SSL inspeksjons-CPS: 32500
SSL-inspeksjon av samtidige økter: 12000000
Virtuelle domener: 10
Maksimum virtuelle domener: 500
Antall FortiSwitches: 256
StatusindikatorerStrøm, status, alarm
EgenskaperVPN-støtte, CAPWAP-støtte, SSL-kontroll
KrypteringsalgoritmeSSL, 256-bit AES, 256-bits SHA, TLS 1.2, TLS 1.3
Ekspansjon / Tilkoplinger
Utvidelsesspor2 (total) / 0 (ledig) x prosessor modul
1 (total) / 0 (ledig) x grensesnittmodul
1 (total) / 0 (ledig) x hylleadministrator
Grensesnitt4 x 100Gb Ethernet - QSFP28
4 x 1000Base-T (ledelse) - RJ-45
1 x USB 3.0
2 x 10GBase-X - SFP+
Diverse
Tilleggsutstyr inkludert2 SR SFP+ transceivere
Tilpassede standarderUL, VCCI, BSMI, cUL, CB, FCC, ICES, RCM
Strømforsyning
StrømenhetIntern strømforsyning - hot-plug
Installert antall3
Max støttet Ant4
StrømforsyningsredundansJa
Påkrevd nettspenningAC 100-240 V (50/60 Hz)
Strømforbruk ved drift1390 watt
Programvare / Systemkrav
OS MedfølgerFortiOS
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur40 °C
Driftsfuktighet20 - 90% (ikke-kondenserende)
