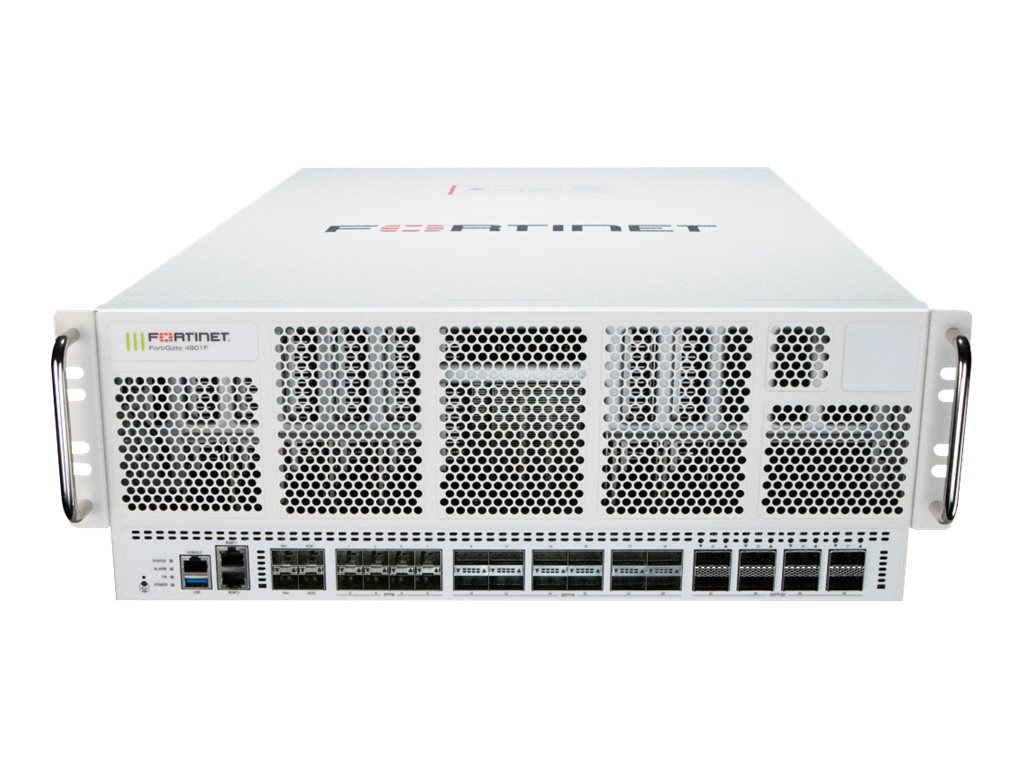

Fortinet FortiGate 4801F-DC-NEBS - Sikkerhetsapparat - med 1 year FortiCare Premium Support + 1 year FortiGuard Enterprise Protection - 25GbE, 40GbE, 50GbE, 100GbE, 200GbE, 400GbE - Bluetooth - front til bakside-luftflyt - 4U - skystyring - rackmonterbar

Tilgjengelighet: Ikke på lager
Sku: FG-4801F-DC-NEBS-BDL-809-12
7 545 176,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The Fortinet FortiGate 4801F-DC-NEBS is designed to meet the demands of today's security challenges with robust performance and comprehensive protection. This security appliance delivers firewall throughput of up to 800 Gbps, capable of handling large networks seamlessly. With features like intrusion prevention, DDoS attack prevention, and anti-malware protection, it ensures a secure environment for business operations. Offering support for both SSL and IPSec VPNs, the FortiGate 4801F-DC-NEBS facilitates secure remote access, accommodating up to 20,000 concurrent SSL VPN users and 30,000 gateway-to-gateway IPSec tunnels. It also supports a range of high-speed data connections, including 400 Gb Ethernet, ensuring rapid data transfer speeds. Additionally, with advanced features like SSL inspection and data loss prevention, organizations can efficiently manage risks while maintaining compliance and operational integrity.

High performance capabilities

This device achieves exceptional firewall and VPN throughput, making it an ideal choice for large networks and organizations handling extensive data traffic.

Robust security features

Equipped with advanced security measures such as intrusion prevention, anti-malware protection, and SSL inspection, this appliance safeguards sensitive information against various threats.

Extensive support for virtual domains

Supports up to 4096 virtual domains, allowing for flexible segmentation of resources and enhanced management of network policies.

Environmental resilience

Operates optimally within a wide temperature range of 0 °C to 50 °C and accommodates varying humidity levels, making it suitable for diverse operational environments.

Versatile connectivity options

Features a comprehensive array of connectivity technologies, including multiple Ethernet standards, ensuring compatibility and scalability in network architecture.

Generelt
EnhetstypeSikkerhetsapparat
Tjenestebundter1 år FortiCare Premium støtte + 1 år FortiGuard Enterprise beskyttelse
Høyde (Stativenheter)4U
Bredde43.5 cm
Dybde66.3 cm
Høyde17.5 cm
Vekt41.2 kg
Prosessor / Minne / Lager
Installerte prosessorerFortinet FortiASIC CP9/NP7
HarddiskSSD 2 TB x 2
Nettverkstilknytning
ProduktformfaktorRackmonterbar
LuftflytretningFront til bakside-luftflyt
OverføringsteknologiKablet
DatakjedeprotokollEthernet, Gigabit Ethernet, Fast Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet, 400 Gigabit Ethernet, Bluetooth LE
Nettverks-/transportprotokollIPv4, IPv6, HTTPs, HTTP, IPSec, TCP/IP, UDP/IP
Protokoll for fjernstyrt administrasjonHTTPS, HTTP
SkystyrtJa
YtelseIPS-gjennomløp (firmatraffikkblanding): 87 Gbps
NGFW-gjennomløp (bedriftstrafikkmiks): 77 Gbps
Trusselbeskyttelsesgjennomløp (bedriftstrafikkmiks): 75 Gbps
Brannveggjennomløp (1518-byte UDP): 3.1 Tbps
Brannveggjennomløp (512-byte UDP): 3.1 Tbps
Brannveggjennomløp (64-byte UDP): 0.93 Tbps
IPv6 bannmur-gjennomløp (1518-byte UDP): 3.1 Tbps
IPv6 bannmur-gjennomløp (512-byte UDP): 3.1 Tbps
IPv6 bannmur-gjennomløp (86-byte UDP): 0.93 Tbps
Brannvegglatens (64-byte UDP): 3.6 µs
Brannmurgjennomløp: 1396 Mpps
VPN-gjennomstrømning (512-bit IPSec): 800 Gbps
VPN-gjennomløp (SSL): 18 Gbps
SSL inspeksjonsprosessering: 63 Gbps
Applikasjonskontroll-gjennomløp: 180 Gbps
CAPWAP-gjennomløp: 112 Gbps
KapasitetSamtidige TCP-økter: 280000000
Nye TCP-økter per sekund: 915000
Brannmurspolitikk: 200000
Gateway-til-gateway IPSec VPN-tunneller: 40000
Klient-til-gateway IPSec VPN-tunneller: 200000
Samtidige SSL VPN-brukere: 30000
SSL inspeksjons-CPS: 60000
SSL-inspeksjon av samtidige økter: 30000000
Virtuelle domener: 10
Maksimum virtuelle domener: 500
Antall FortiSwitches: 300
Antall FortiAP-enheter: 8192
Antal FortiAP-enheder (tunnel): 4096
Antall FortiToken-enheter: 20000
StatusindikatorerBluetooth Low Energy (BLE), status, HA, alarm, strøm, lenke/aktivitet, hastighet
EgenskaperBrannveggbeskyttelse, støtte for SD-WAN, AI/ML drevet, Zero Trust Network Access (ZTNA), SSL-kontroll, VPN-støtte, CAPWAP-støtte, Virtual Extensible LAN (VXLAN), DDoS Protection, Trusted Platform Module (TPM), Høy tilgjengelighet, NGFW-apparat, selvreparerende nettverk, Intrusion Prevention System (IPS), anti-malware-beskyttelse, URL-beskyttelse, DNS-filtrering, Data Loss Prevention (DLP), DDos-angrepsforebygging
KrypteringsalgoritmeSSL, TLS 1.3, 256-bit AES, 256-bits SHA
Ekspansjon / Tilkoplinger
Grensesnitt1 x USB 3.0 - Type A
1 x konsoll - RJ-45
2 x 1 Gigabit Ethernet/10 Gb Ethernet (administrasjon) - RJ-45
4 x 1Gb Ethernet/10Gb Ethernet/25Gb Ethernet/50Gb Ethernet (Høy tilgjengelighet og tilleggsfunksjoner) - SFP/SFP+/SFP28/SFP56
8 x 1Gb Ethernet/10Gb Ethernet/25Gb Ethernet/50Gb Ethernet - SFP/SFP+/SFP28/SFP56
12 x 40Gb Ethernet/100Gb Ethernet/200Gb Ethernet - QSFP+/QSFP28/QSFP56
8 x 40Gb Ethernet/100Gb Ethernet/200Gb Ethernet/400Gb Ethernet - QSFP+/QSFP28/QSFP56/QSFP-DD
Diverse
Tilleggsutstyr inkludert2 x SR 10Gbps SFP+ transceivere
Tilpassede standarderFCC Part 15 A, RCM, VCCI, UL, cUL, CB, USGv6, NEBS
Strømforsyning
StrømenhetIntern strømforsyning - hot-plug
Installert antall4
Max støttet Ant4
StrømforsyningsredundansJa
Påkrevd nettspenningDC -40 - -72 V
Strømforbruk ved drift1622 watt
80 PLUS-sertifisering80 PLUS
Programvare / Systemkrav
OS MedfølgerFortiOS
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur50 °C
Driftsfuktighet10 - 90% (ikke-kondenserende)
