FortiGate-4801F-DC Hardware plus 5 Year Hardware plus FortiCare Premium and FortiGuard Enterprise Protection

Tilgjengelighet: Ikke på lager
Sku: FG-4801F-DC-BDL-809-60
21 411 992,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

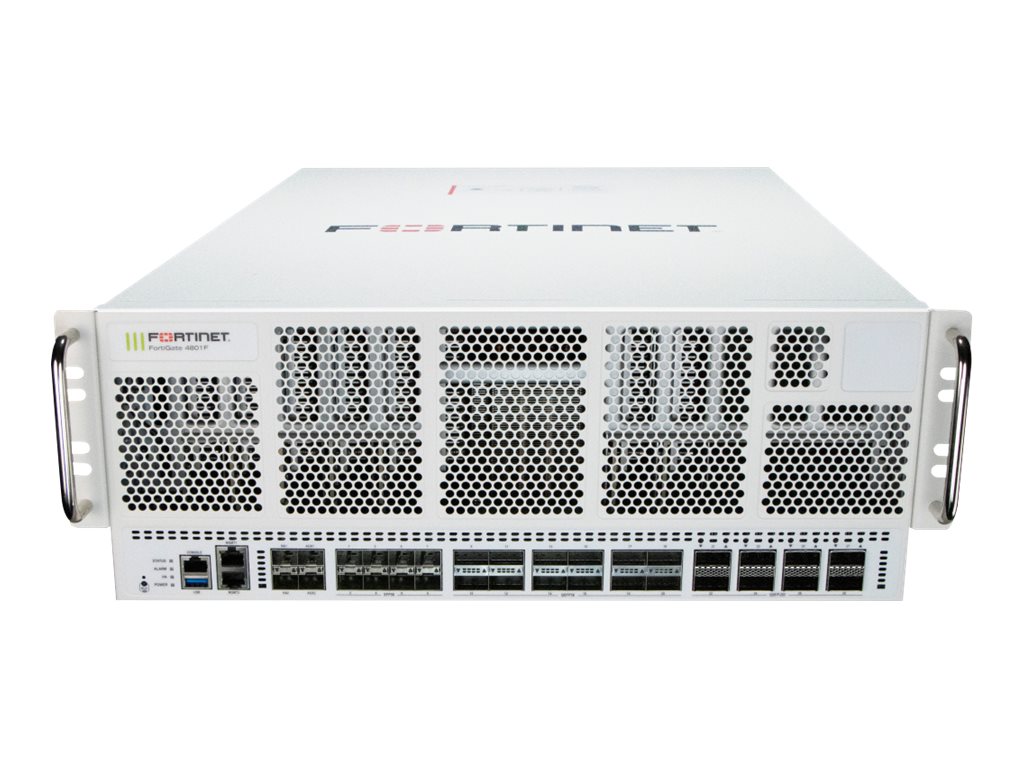

The Fortinet FortiGate 4801F-DC is a strong performer in the realm of network security devices, designed to meet the rigorous demands of modern enterprise networks. This security appliance not only offers robust protection with advanced encryption algorithms, including 256-bit AES and TLS 1.3, but also delivers high performance with firewall throughput capabilities of up to 3.1 Tbps. Its support for a wide range of data link protocols and connectivity options ensures that it can seamlessly integrate into any network architecture, providing high-speed connections and efficient data throughput.

With the capacity to handle up to 280 million concurrent TCP sessions and the ability to support up to 30,000 concurrent SSL VPN users, the Fortinet FortiGate 4801F-DC is equipped to offer secure, high-capacity networking for large-scale operations. Its comprehensive feature set, including SSL inspection, DDoS protection, and VPN support, makes it a versatile solution for securing and managing network traffic. Whether for a data center, large enterprise, or service provider, this security appliance stands ready to deliver high performance and security.

Robust security

Equipped with 256-bit AES and TLS 1.3 encryption algorithms, the Fortinet FortiGate 4801F-DC ensures high-level security for all data transactions, making it a suitable choice for organizations prioritizing data protection.

High-speed connectivity

With support for up to 400 Gb Ethernet, this security appliance provides high-speed connectivity and efficient data throughput, catering to the demands of large-scale networks and data-intensive applications.

Versatile networking

Featuring a wide range of data link protocols including Gigabit Ethernet, 10 Gigabit Ethernet, and up to 400 Gigabit Ethernet, the device supports diverse networking requirements, ensuring compatibility and high performance across various network architectures.

Advanced performance

Delivering firewall throughput of up to 3.1 Tbps and VPN throughput of 800 Gbps, the Fortinet FortiGate 4801F-DC is recognized for its exceptional performance in securing and managing network traffic efficiently.

Comprehensive control

With features like SSL inspection, DDoS protection, and VPN support, this security appliance offers comprehensive control over network security, allowing for detailed inspection and management of encrypted traffic.

Generelt
EnhetstypeSikkerhetsapparat
Tjenestebundter5 år FortiCare Premium Support + 5 år FortiGuard Enterprise Protection
Høyde (Stativenheter)4U
Bredde43.5 cm
Dybde66.3 cm
Høyde17.5 cm
Vekt41.2 kg
Prosessor / Minne / Lager
Installerte prosessorerFortinet FortiASIC CP9/NP7
HarddiskSSD 1.92 TB x 2
Nettverkstilknytning
ProduktformfaktorRackmonterbar
LuftflytretningFront til bakside-luftflyt
OverføringsteknologiKablet
DatakjedeprotokollGigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 200 Gigabit Ethernet, 400 Gigabit Ethernet
Nettverks-/transportprotokollTCP/IP, UDP/IP, IPSec, HTTP, HTTPs, IPv4, IPv6
Protokoll for fjernstyrt administrasjonHTTP, HTTPS
YtelseIPS-gjennomløp (firmatraffikkblanding): 87 Gbps
NGFW-gjennomløp (bedriftstrafikkmiks): 77 Gbps
Trusselbeskyttelsesgjennomløp (bedriftstrafikkmiks): 75 Gbps
Brannveggjennomløp (1518-byte UDP): 3.1 Tbps
Brannveggjennomløp (512-byte UDP): 3.1 Tbps
Brannveggjennomløp (64-byte UDP): 0.93 Tbps
IPv6 bannmur-gjennomløp (1518-byte UDP): 3.1 Tbps
IPv6 bannmur-gjennomløp (512-byte UDP): 3.1 Tbps
IPv6 bannmur-gjennomløp (86-byte UDP): 0.93 Tbps
Brannvegglatens (64-byte UDP): 3.6 µs
Brannmurgjennomløp: 1396 Mpps
VPN-gjennomstrømning (512-bit IPSec): 800 Gbps
VPN-gjennomløp (SSL): 18 Gbps
SSL inspeksjonsprosessering: 63 Gbps
Applikasjonskontroll-gjennomløp: 180 Gbps
CAPWAP-gjennomløp: 112 Gbps
KapasitetSamtidige TCP-økter: 280000000
Nye TCP-økter per sekund: 950000
Brannmurspolitikk: 200000
Gateway-til-gateway IPSec VPN-tunneller: 40000
Klient-til-gateway IPSec VPN-tunneller: 200000
Samtidige SSL VPN-brukere: 30000
SSL inspeksjons-CPS: 60000
SSL-inspeksjon av samtidige økter: 30000000
Virtuelle domener: 10
Maksimum virtuelle domener: 500
Antall FortiSwitches: 300
Antall FortiAP-enheter: 8192
Antal FortiAP-enheder (tunnel): 4096
Antall FortiToken-enheter: 20000
StatusindikatorerStrøm, status, alarm, lenke/aktivitet, HA, hastighet, Bluetooth Low Energy (BLE)
EgenskaperVPN-støtte, CAPWAP-støtte, Virtual Extensible LAN (VXLAN), SSL-kontroll, DDoS Protection, Zero Trust Network Access (ZTNA)
KrypteringsalgoritmeSSL, 256-bit AES, 256-bits SHA, TLS 1.3
Ekspansjon / Tilkoplinger
Grensesnitt8 x 40Gb Ethernet/100Gb Ethernet/200Gb Ethernet/400Gb Ethernet - QSFP+/QSFP28/QSFP56/QSFP-DD
12 x 40Gb Ethernet/100Gb Ethernet/200Gb Ethernet - QSFP+/QSFP28/QSFP56
8 x 1Gb Ethernet/10Gb Ethernet/25Gb Ethernet/50Gb Ethernet - SFP/SFP+/SFP28/SFP56
4 x 1Gb Ethernet/10Gb Ethernet/25Gb Ethernet/50Gb Ethernet (Høy tilgjengelighet og tilleggsfunksjoner) - SFP/SFP+/SFP28/SFP56
2 x 1 Gigabit Ethernet/10 Gb Ethernet (administrasjon) - RJ-45
1 x USB 3.0 - Type A
1 x konsoll - RJ-45
Diverse
Tilleggsutstyr inkludert6 gummiføtter, rackskinnesett, 2 x SR 10Gbps SFP+ transceivere
Medfølgende kabler1 x nettverkskabel
1 x konsollkabel
Tilpassede standarderUL, VCCI, cUL, CB, FCC Part 15 A, RCM, USGv6
Strømforsyning
StrømenhetIntern strømforsyning - hot-plug
Installert antall4
Max støttet Ant4
StrømforsyningsredundansJa
Påkrevd nettspenningDC -40 - -72 V
Strømforbruk ved drift1622 watt
80 PLUS-sertifisering80 PLUS
Programvare / Systemkrav
OS MedfølgerFortiOS
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur40 °C
Driftsfuktighet20 - 90% (ikke-kondenserende)
