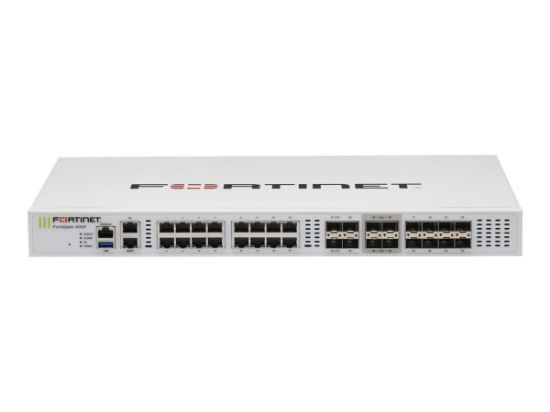

Fortinet FortiGate 401F-DC - Sikkerhetsapparat - 10GbE - front og side til bakside - 1U - skystyring - rackmonterbar

Tilgjengelighet: Ikke på lager
Sku: FG-401F-DC
172 636,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

Fortinet's FortiGate 401F-DC is designed for robust security and efficient management. This security appliance ensures performance with a firewall throughput of up to 10 Gbps and VPN throughput reaching 9 Gbps, delivering reliability in high-demand environments. With support for multiple concurrent users and connections, it can accommodate up to 500,000 concurrent TCP sessions and provide secure access for 10,000 SSL VPN users. Multiple security features such as IPS, DDoS protection, and advanced threat prevention ensure comprehensive protection against a variety of cyber threats.

Built to fit into any rack-mount environment, the 401F-DC includes 16 connectivity options, especially focusing on high-speed connections. The system supports powerful encryption algorithms, including TLS 1.3 and 256-bit AES, ensuring data integrity and security. Its wide operating temperature range and humidity tolerance make it suitable for various installation environments, while a dual SSD with 480 GB storage increases performance and reliability. FortiGate 401F-DC also offers cloud management capabilities, enhancing its flexibility for modern IT infrastructures.

High performance throughput

The FortiGate 401F-DC provides throughput levels for firewall and VPN operations, ensuring that data flows smoothly without bottlenecks. Its firewall throughput reaches 10 Gbps while providing 9 Gbps for SSL VPN, accommodating demanding requirements.

Robust security features

This appliance is loaded with security features including DDoS protection, intrusion prevention, and advanced threat detection. The integration of these security mechanisms shields networks against a broad array of cyber threats.

Extensive connectivity options

With 16 different interface options, the FortiGate 401F-DC supports various connectivity technologies. This ensures compatibility and ease of integration with existing network infrastructure while maintaining high-speed connections.

Reliable and flexible design

The rack-mountable form factor allows for efficient use of space in data centers. With a robust operational temperature range and dual SSD storage, this product is designed to deliver consistent performance under various conditions.

Cloud management support

The FortiGate 401F-DC is capable of being managed through the cloud, offering remote access and easier administration. This flexibility is essential for modern enterprise environments that require adaptive security solutions.

Generelt
EnhetstypeSikkerhetsapparat
Høyde (Stativenheter)1U
Bredde43.2 cm
Dybde38 cm
Høyde4.445 cm
Vekt6.5 kg
Prosessor / Minne / Lager
Installerte prosessorerFortinet FortiASIC CP9/NP7
HarddiskSSD 480 GB x 2
Nettverkstilknytning
ProduktformfaktorRackmonterbar
LuftflytretningFront og side til bakside
OverføringsteknologiKablet
DatakjedeprotokollEthernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Nettverks-/transportprotokollTCP/IP, UDP/IP, IPSec, HTTP, HTTPs, IPv4, IPv6
Protokoll for fjernstyrt administrasjonHTTP, HTTPS
SkystyrtJa
YtelseIPS-gjennomløp (firmatraffikkblanding): 12 Gbps
NGFW-gjennomløp (bedriftstrafikkmiks): 10 Gbps
Trusselbeskyttelsesgjennomløp (bedriftstrafikkmiks): 9 Gbps
IPv4 bannmur-gjennomløp (1518-byte UDP): 79.5 Gbps
IPv4 bannmur-gjennomløp (512-byte UDP): 78.5 Gbps
IPv4 bannmur-gjennomløp (64-byte UDP): 70 Gbps
IPv6 bannmur-gjennomløp (1518-byte UDP): 79.5 Gbps
IPv6 bannmur-gjennomløp (512-byte UDP): 78.5 Gbps
IPv6 bannmur-gjennomløp (86-byte UDP): 70 Gbps
Brannvegglatens (64-byte UDP): 4.19 µs
Brannmur latenstid (64-byte UDP, ULL porter): 2.5 µs
Brannmurgjennomløp: 105 Mpps
VPN-gjennomstrømning (512-bit IPSec): 55 Gbps
VPN-gjennomløp (SSL): 3,6 Gbps
SSL inspeksjonsprosessering: 8 Gbps
Applikasjonskontroll-gjennomløp: 28 Gbps
CAPWAP-gjennomløp: 65 Gbps
KapasitetSamtidige TCP-økter: 7800000
Nye TCP-økter per sekund: 500000
Brannmurspolitikk: 10000
Gateway-til-gateway IPSec VPN-tunneller: 2000
Klient-til-gateway IPSec VPN-tunneller: 50000
Samtidige SSL VPN-brukere: 5000
SSL inspeksjons-CPS: 6000
SSL-inspeksjon av samtidige økter: 800000
Virtuelle domener: 10
Maksimum virtuelle domener: 10
Antall FortiSwitches: 72
Antall FortiAP-enheter: 512
Antal FortiAP-enheder (tunnel): 256
Antall FortiToken-enheter: 5000
StatusindikatorerStrøm, status, alarm, HA
EgenskaperVPN-støtte, Høy tilgjengelighet, Intrusion Prevention System (IPS), DDos-angrepsforebygging, anti-malware-beskyttelse, Trusted Platform Module (TPM), nullstillingsknapp, CAPWAP-støtte, Data Loss Prevention (DLP), SSL-kontroll, DNS-filtrering, støtte for SD-WAN, selvreparerende nettverk, URL-beskyttelse, Zero Trust Network Access (ZTNA), NGFW-apparat, AI/ML drevet, avansert sandkasse deteksjon
KrypteringsalgoritmeSSL, 256-bit AES, 256-bits SHA, TLS 1.3
Ekspansjon / Tilkoplinger
Grensesnitt1 x USB - Type A
1 x konsoll - RJ-45
1 x 1000Base-T (ledelse) - RJ-45
1 x 1000Base-T (HA) - RJ-45
16 x 1000Base-T - RJ-45
4 x 1000Base-X/10GBase-X - SFP+
4 x 10GBase-X (ultra-lav latens) - SFP+
8 x 1000Base-X - SFP
Diverse
Tilleggsutstyr inkludert2 x 1Gb Ethernet SX SFP sendemottaker
Tilpassede standarderUL, VCCI, cUL, CB, FCC Part 15 A, RCM, USGv6
Strømforsyning
StrømenhetIntern strømforsyning - hot-plug
Max støttet Ant2
StrømforsyningsredundansJa
Påkrevd nettspenningDC 48-60 V
80 PLUS-sertifisering80 PLUS
Programvare / Systemkrav
OS MedfølgerFortiOS
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur40 °C
Driftsfuktighet5 - 90 % (ikke-kondenserende)
