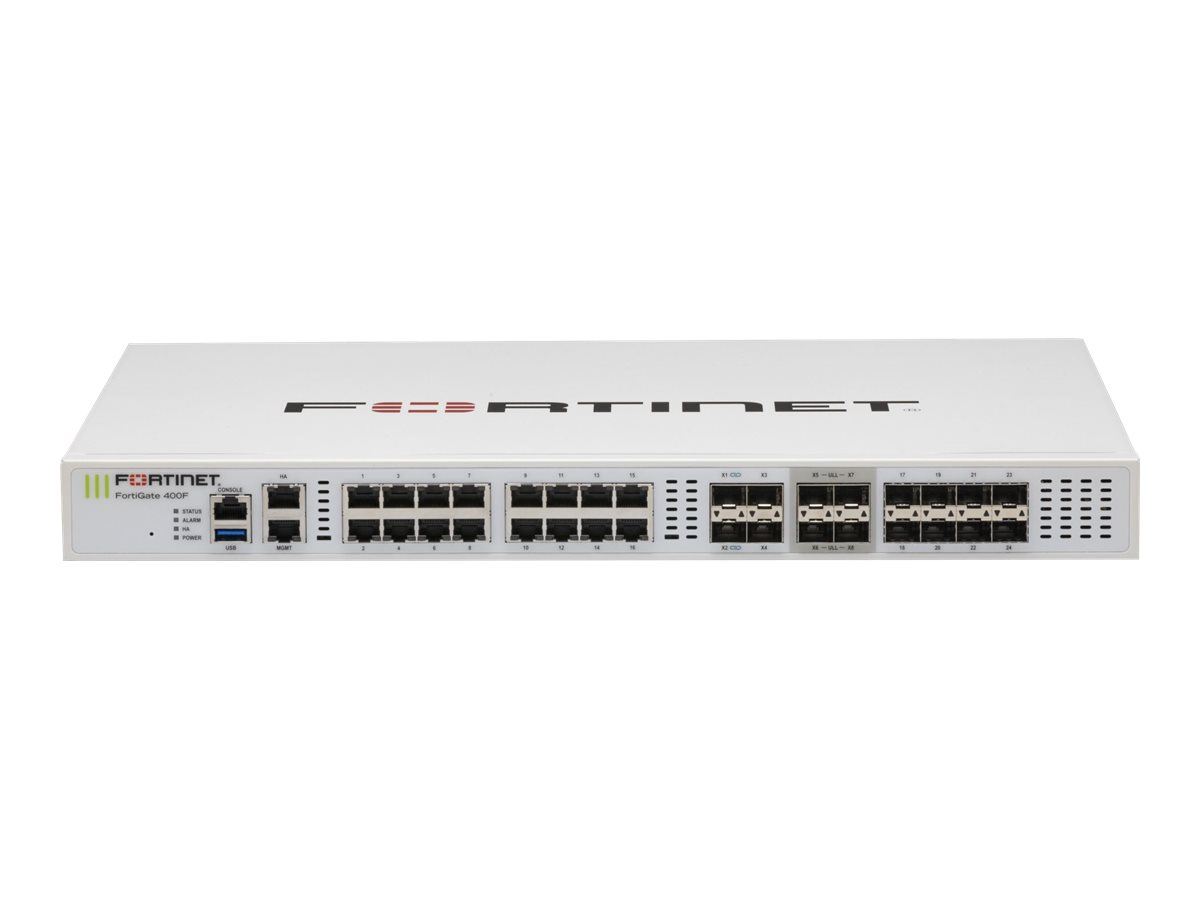

Fortinet FortiGate 400F-DC - Sikkerhetsapparat - 10GbE - front og side til bakside - 1U - skystyring - rackmonterbar

Tilgjengelighet: Ikke på lager
Sku: FG-400F-DC
148 988,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The Fortinet FortiGate 400F-DC is designed to deliver robust security solutions with performance. This firewall appliance supports up to 2000 firewall policies and can handle a large number of connections, ensuring that your network remains secure under heavy traffic. With throughput capacities, including a firewall throughput of 10 Gbps and SSL inspection throughput of 8 Gbps, this appliance efficiently manages both security and data flow. The hardware is rack-mountable and operates on a wide range of temperatures, making it suitable for various environments. Equipped with features such as Intrusion Prevention System (IPS), DDoS attack prevention, and SSL inspection, the FortiGate 400F-DC enhances network security while maintaining reliable performance. It supports a flexible number of VPN tunnels and simultaneous SSL VPN users, accommodating diverse user demands. Furthermore, the appliance incorporates AI/ML powered systems and includes critical features like Zero Trust Network Access (ZTNA) and advanced sandbox detection, ensuring comprehensive data protection for the organization.

Massive capacity

The FortiGate 400F-DC can handle a significant number of connections and users, boasting 10000 concurrent SSL VPN users and 6000 client to gateway IPSec VPN tunnels, making it ideal for high-demand environments.

High performance

With an IPv4 firewall throughput of 10 Gbps and a firewall latency of just 2.5 µs, this appliance ensures minimal delays and high-speed connections, essential for effective network security without compromising performance.

Versatile connectivity

Featuring a variety of interfaces including 1000Base-T and 10GBase-X connections, the FortiGate 400F-DC supports diverse connection types for flexible integration into existing network infrastructures.

Robust security features

This appliance includes comprehensive security protocols such as DDoS attack prevention, SSL inspection, and DNS filtering, providing multi-layered protection against a wide array of cyber threats.

Reliable operational stability

Designed with dual internal power supplies and hot-plug capabilities, the FortiGate 400F-DC ensures continuous operation and minimal downtime, even during maintenance or unexpected power outages.

Generelt
EnhetstypeSikkerhetsapparat
Høyde (Stativenheter)1U
Bredde43.2 cm
Dybde38 cm
Høyde4.445 cm
Vekt6.4 kg
Prosessor / Minne / Lager
Installerte prosessorerFortinet FortiASIC CP9/NP7
Nettverkstilknytning
ProduktformfaktorRackmonterbar
LuftflytretningFront og side til bakside
OverføringsteknologiKablet
DatakjedeprotokollEthernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Nettverks-/transportprotokollIPv4, IPv6, IPSec, UDP/IP, TCP/IP, HTTP, HTTPs
Protokoll for fjernstyrt administrasjonHTTP, HTTPS
SkystyrtJa
YtelseIPS-gjennomløp (firmatraffikkblanding): 12 Gbps
NGFW-gjennomløp (bedriftstrafikkmiks): 10 Gbps
Trusselbeskyttelsesgjennomløp (bedriftstrafikkmiks): 9 Gbps
IPv4 bannmur-gjennomløp (1518-byte UDP): 79.5 Gbps
IPv4 bannmur-gjennomløp (512-byte UDP): 78.5 Gbps
IPv4 bannmur-gjennomløp (64-byte UDP): 70 Gbps
IPv6 bannmur-gjennomløp (1518-byte UDP): 79.5 Gbps
IPv6 bannmur-gjennomløp (512-byte UDP): 78.5 Gbps
IPv6 bannmur-gjennomløp (86-byte UDP): 70 Gbps
Brannvegglatens (64-byte UDP): 4.19 µs
Brannmur latenstid (64-byte UDP, ULL porter): 2.5 µs
Brannmurgjennomløp: 105 Mpps
VPN-gjennomstrømning (512-bit IPSec): 55 Gbps
VPN-gjennomløp (SSL): 3,6 Gbps
SSL inspeksjonsprosessering: 8 Gbps
Applikasjonskontroll-gjennomløp: 28 Gbps
CAPWAP-gjennomløp: 65 Gbps
KapasitetSamtidige TCP-økter: 7800000
Nye TCP-økter per sekund: 500000
Brannmurspolitikk: 10000
Gateway-til-gateway IPSec VPN-tunneller: 2000
Klient-til-gateway IPSec VPN-tunneller: 50000
Samtidige SSL VPN-brukere: 5000
SSL inspeksjons-CPS: 6000
SSL-inspeksjon av samtidige økter: 800000
Virtuelle domener: 10
Maksimum virtuelle domener: 10
Antall FortiSwitches: 96
Antall FortiAP-enheter: 512
Antal FortiAP-enheder (tunnel): 256
Antall FortiToken-enheter: 5000
StatusindikatorerStatus, alarm, HA, strøm
EgenskaperTrusted Platform Module (TPM), Zero Trust Network Access (ZTNA), SSL-kontroll, VPN-støtte, støtte for SD-WAN, CAPWAP-støtte, Høy tilgjengelighet, NGFW-apparat, AI/ML drevet, selvreparerende nettverk, avansert sandkasse deteksjon, Intrusion Prevention System (IPS), anti-malware-beskyttelse, URL-beskyttelse, DNS-filtrering, Data Loss Prevention (DLP), nullstillingsknapp, DDos-angrepsforebygging
KrypteringsalgoritmeTLS 1.3, SSL, 256-bit AES, 256-bits SHA
Ekspansjon / Tilkoplinger
Grensesnitt1 x USB - Type A
1 x konsoll - RJ-45
1 x 1000Base-T (ledelse) - RJ-45
1 x 1000Base-T (HA) - RJ-45
16 x 1000Base-T - RJ-45
4 x 1000Base-X/10GBase-X - SFP+
4 x 10GBase-X (ultra-lav latens) - SFP+
8 x 1000Base-X - SFP
Diverse
Tilleggsutstyr inkludert2 x 1Gb Ethernet SX SFP sendemottaker
Tilpassede standarderFCC Part 15 A, RCM, VCCI, UL, cUL, CB, USGv6
Strømforsyning
StrømenhetIntern strømforsyning - hot-plug
Max støttet Ant2
StrømforsyningsredundansJa
Påkrevd nettspenningDC 48-60 V
80 PLUS-sertifisering80 PLUS
Programvare / Systemkrav
OS MedfølgerFortiOS
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur40 °C
Driftsfuktighet5 - 90 % (ikke-kondenserende)
