FortiGate-3000F-DC Hardware plus 3 Year Hardware plus FortiCare Premium and FortiGuard Enterprise Protection

Tilgjengelighet: Ikke på lager
Sku: FG-3000F-DC-BDL-809-36
3 901 416,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

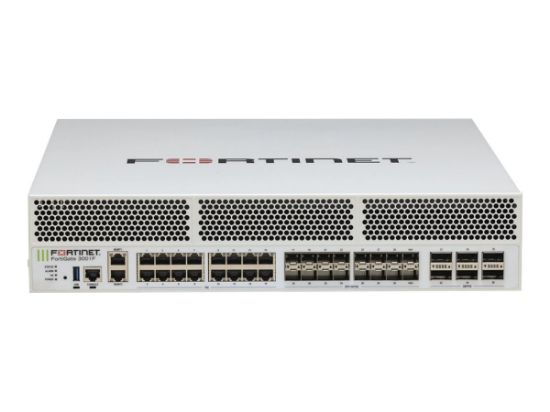

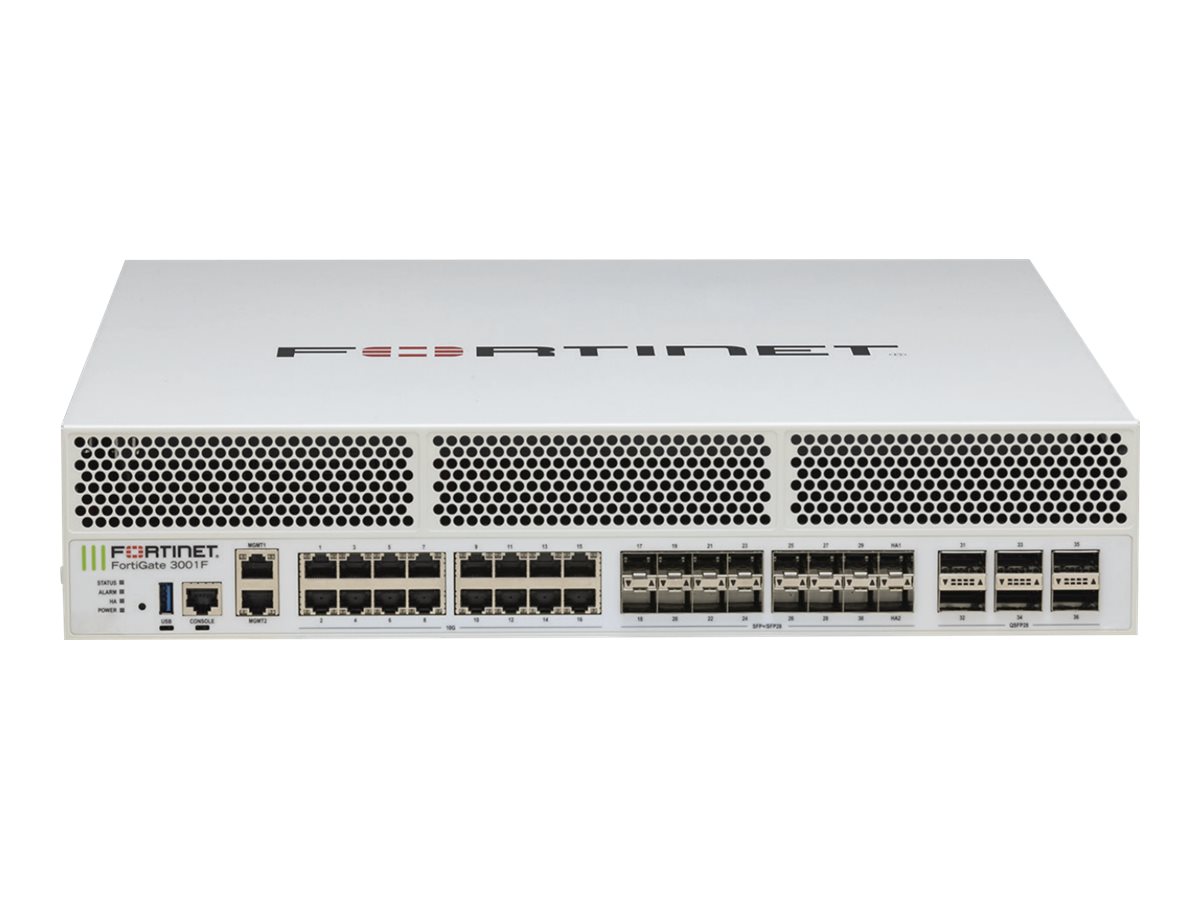

The Fortinet FortiGate 3000F-DC stands out as a formidable network security appliance, designed to meet the rigorous demands of modern enterprises. Its capacity to support up to 70 million concurrent TCP sessions and 870,000 new TCP sessions per second makes it a powerful tool for handling high volumes of traffic. With 34 Gbps of Next-Generation Firewall (NGFW) throughput, it ensures that data flows securely and swiftly, even under heavy load.

This device is not only about performance; it also offers a wide array of connectivity options and advanced networking features. From supporting a vast number of FortiAP devices to providing Zero Trust Network Access (ZTNA) and SD-WAN capabilities, it caters to a broad spectrum of networking requirements. The inclusion of 256-bit AES and TLS 1.3 encryption algorithms ensures that data remains secure, making the Fortinet FortiGate 3000F-DC an essential asset for any organization focused on maintaining high security and operational efficiency.

Robust security

Equipped with 256-bit AES and TLS 1.3 encryption algorithms, the Fortinet FortiGate 3000F-DC ensures high-level security for all data passing through, making it an ideal choice for organizations prioritizing data protection.

High performance

With an impressive IPv4 firewall throughput of 397 Gbps and IPS throughput of 36 Gbps, this security appliance is designed to handle high volumes of traffic without compromising on speed or security.

Versatile connectivity

Featuring a wide range of connectivity options including 40Gb Ethernet/100Gb Ethernet and 1/2.5/5/10GBase-T ports, the Fortinet FortiGate 3000F-DC offers flexible networking solutions to meet diverse infrastructure needs.

Advanced networking features

Supports SD-WAN for optimized network performance and Zero Trust Network Access (ZTNA) for secure remote access, alongside CAPWAP, High Availability, and SSL inspection capabilities.

Comprehensive management

Remote management protocols HTTP and HTTPS allow for efficient device management, while the inclusion of a Trusted Platform Module (TPM) enhances security further by providing hardware-based encryption keys.

Generelt
EnhetstypeSikkerhetsapparat
Tjenestebundter3 år FortiCare Premium Support + 3 år FortiGuard Enterprise Protection
Høyde (Stativenheter)2U
Bredde44.3 cm
Dybde55.6 cm
Høyde8.89 cm
Vekt16.9 kg
Prosessor / Minne / Lager
Installerte prosessorerFortinet FortiASIC CP9/NP7
Nettverkstilknytning
ProduktformfaktorRackmonterbar
LuftflytretningFront til bakside-luftflyt
OverføringsteknologiKablet
DatakjedeprotokollGigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, 25 Gigabit Ethernet
Nettverks-/transportprotokollTCP/IP, UDP/IP, IPSec, HTTP, HTTPs, IPv4, IPv6
Protokoll for fjernstyrt administrasjonHTTP, HTTPS
YtelseIPS-gjennomløp (firmatraffikkblanding): 36 Gbps
NGFW-gjennomløp (bedriftstrafikkmiks): 34 Gbps
Trusselbeskyttelsesgjennomløp (bedriftstrafikkmiks): 33 Gbps
IPv4 bannmur-gjennomløp (1518-byte UDP): 397 Gbps
IPv4 bannmur-gjennomløp (512-byte UDP): 389 Gbps
IPv4 bannmur-gjennomløp (64-byte UDP): 221 Gbps
IPv6 bannmur-gjennomløp (1518-byte UDP): 397 Gbps
IPv6 bannmur-gjennomløp (512-byte UDP): 389 Gbps
IPv6 bannmur-gjennomløp (86-byte UDP): 221 Gbps
Brannvegglatens (64-byte UDP): 3.92 µs
Brannmurgjennomløp: 331.5 Mpps
VPN-gjennomstrømning (512-bit IPSec): 105 Gbps
VPN-gjennomløp (SSL): 11 Gbps
SSL inspeksjonsprosessering: 29 Gbps
Applikasjonskontroll-gjennomløp: 115 Gbps
CAPWAP-gjennomløp: 65 Gbps
KapasitetSamtidige TCP-økter: 70000000
Nye TCP-økter per sekund: 870000
Brannmurspolitikk: 200000
Gateway-til-gateway IPSec VPN-tunneller: 40000
Klient-til-gateway IPSec VPN-tunneller: 200000
Samtidige SSL VPN-brukere: 30000
SSL inspeksjons-CPS: 29000
SSL-inspeksjon av samtidige økter: 7500000
Virtuelle domener: 10
Maksimum virtuelle domener: 500
Antall FortiSwitches: 300
Antall FortiAP-enheter: 4096
Antal FortiAP-enheder (tunnel): 2048
Maksimalt antall FortiTokens: 20000
StatusindikatorerStrøm, status, alarm, HA
EgenskaperVPN-støtte, Høy tilgjengelighet, Trusted Platform Module (TPM), CAPWAP-støtte, SSL-kontroll, støtte for SD-WAN, Zero Trust Network Access (ZTNA)
KrypteringsalgoritmeSSL, 256-bit AES, 256-bits SHA, TLS 1.3
Ekspansjon / Tilkoplinger
Grensesnitt6 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28
2 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet (High Availability) - SFP/SFP+/SFP28
14 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28
16 x 1/2.5/5/10GBase-T - RJ-45
2 x 1 Gigabit Ethernet/10 Gb Ethernet (administrasjon) - RJ-45
1 x USB 3.0
1 x konsoll - RJ-45
Diverse
Tilleggsutstyr inkludert2 x 10Gb Ethernet SR SFP+ transceiver
Tilpassede standarderUL, VCCI, cUL, CB, FCC Part 15 A, RCM
Strømforsyning
StrømenhetIntern strømforsyning - hot-plug
Installert antall2
Max støttet Ant2
StrømforsyningsredundansJa
Påkrevd nettspenningDC 48 - 60 V
Strømforbruk ved drift425 watt
80 PLUS-sertifisering80 PLUS
Programvare / Systemkrav
OS MedfølgerFortiOS
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur40 °C
Driftsfuktighet5 - 90 % (ikke-kondenserende)
