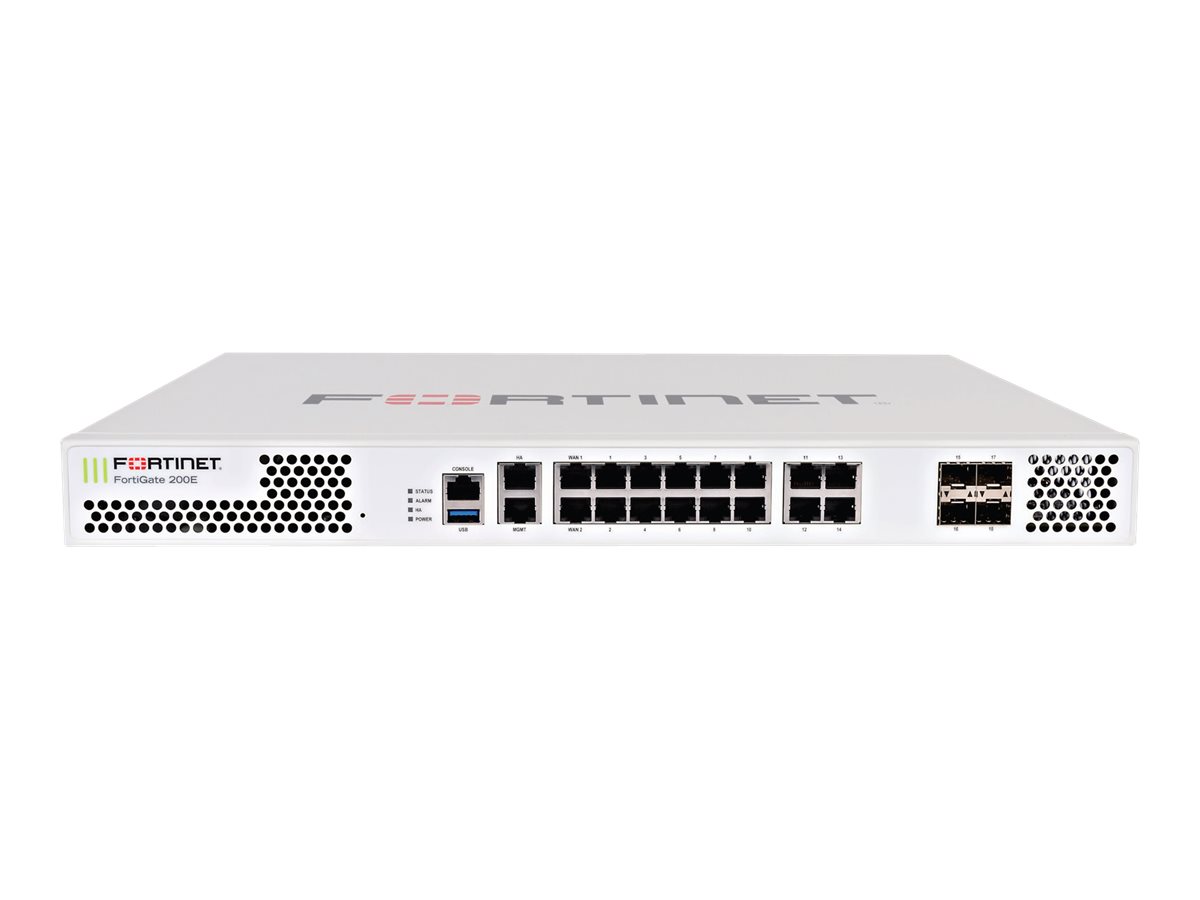

FortiGate-200E-LENC 18 x GE RJ45 (including 2 x WAN ports, 1 x MGMT port, 1 X HA port, 14 x switch ports), 4 x GE SFP slots. SPU NP6Lite and CP9 hardware accelerated

Tilgjengelighet: Ikke på lager
Sku: FG-200E-LENC
31 888,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass - for the industry's best protection against the most advanced security threats and targeted attacks.

Efficient performance

With a firewall throughput of 1.8 Gbps, the Fortinet FortiGate 200E ensures efficient handling of high-volume network traffic, minimizing bottlenecks and maintaining strong security protocols.

Robust VPN support

This model facilitates the establishment of 135,000 client-to-gateway IPSec VPN tunnels, allowing secure remote access while maintaining a high level of security across the network.

Flexible configuration

The capability to manage up to 128 virtual domains makes the FortiGate 200E adaptable for various network environments, catering to specific security needs.

Low latency

The FortiGate 200E achieves firewall latency of just 3 microseconds, ensuring that security processes do not impede network performance.

Vast connectivity options

Equipped with multiple interfaces, including four 1000Base-T ports, this model provides connectivity solutions to meet diverse networking requirements.

Generelt
EnhetstypeSikkerhetsapparat
Høyde (Stativenheter)1U
Innebygde enheterLED-panel
Bredde43.2 cm
Dybde30.1 cm
Høyde4.4 cm
Vekt5.4 kg
Prosessor / Minne / Lager
Installerte prosessorerFortinet FortiASIC CP9/NP6Lite
Nettverkstilknytning
ProduktformfaktorRackmonterbar
OverføringsteknologiKablet
DatakjedeprotokollEthernet, Fast Ethernet, Gigabit Ethernet
Nettverks-/transportprotokollTCP/IP, UDP/IP, IPSec
Protokoll for fjernstyrt administrasjonHTTP
YtelseBrannveggjennomløp (1518-byte UDP): 20 Gbps
Brannveggjennomløp (512-byte UDP): 20 Gbps
Brannveggjennomløp (64-byte UDP): 9 Gbps
Brannvegglatens (64-byte UDP): 3 µs
Brannmurgjennomløp: 13,5 Mpps
VPN-gjennomstrømning (512-bit IPSec): 9 Gbps
VPN-gjennomløp (SSL): 900 Mbps
IPS-gjennomløp (HTTP): 6 Gbps
IPS-gjennomløp: 2,2 Gbps
SSL inspeksjonsprosessering: 1 Gbps
Applikasjonskontroll-gjennomløp (AVC): 3,5 Gbps
Trusselvernsgjennomløp: 1,2 Gbps
CAPWAP-gjennomløp: 1,5 Gbps
NGFW throughput: 1,8 Gbps
KapasitetSamtidige TCP-økter: 2000000
Nye TCP-økter per sekund: 135000
Brannmurspolitikk: 10000
Gateway-til-gateway IPSec VPN-tunneller: 2000
Klient-til-gateway IPSec VPN-tunneller: 10000
Samtidige SSL VPN-brukere: 300
Antall FortiAP-enheter: 128
Antall FortiClient-enheter: 600
Virtuelle domener: 10
Antall FortiToken-enheter: 1000
StatusindikatorerPortoverføringshastighet, strøm, status, alarm, lenke/aktivitet, HA
EgenskaperBrannveggbeskyttelse, VPN-støtte, trafikktilpasning, kan administreres, Høy tilgjengelighet, Intrusion Prevention System (IPS), URL-filtrering, anti-malware-beskyttelse, IPSec-gjennomløp, CAPWAP-støtte, sjekksumavlastingsstøtte, antivirusbeskyttelse
KrypteringsalgoritmeSSL, 256-bit AES, 256-bits SHA, TLS 1.2
Ekspansjon / Tilkoplinger
Grensesnitt2 x 1000Base-T - RJ-45 (WAN)
14 x 1000Base-T - RJ-45
1 x konsoll - RJ-45
1 x USB 2.0 - Type A
4 x 1000Base-X - SFP (mini-GBIC)
2 x 1000Base-T (ledelse) - RJ-45
Diverse
Tilpassede standarderUL, VCCI, BSMI, ICSA IPSec-godkjent, ICSA Firewall-godkjent, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, ICSA Network IPS, RCM, ICSA SSL-VPN
Strømforsyning
StrømenhetIntern strømforsyning
StrømforsyningsredundansValgfritt (opsjon)
Påkrevd nettspenningAC 120/230 V (50/60 Hz)
Strømforbruk ved drift70.98 watt
Programvare / Systemkrav
OS MedfølgerFortiOS
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur40 °C
Driftsfuktighet10 - 90% (ikke-kondenserende)
