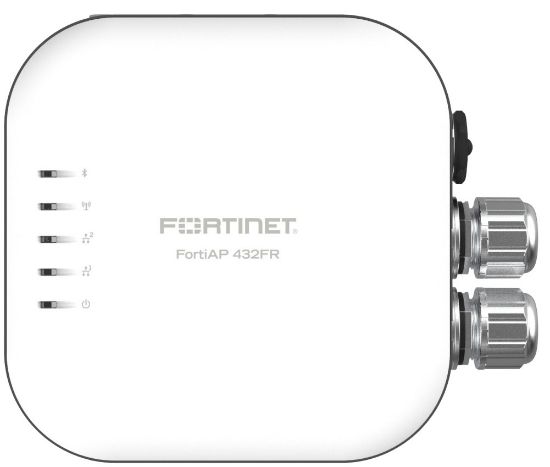

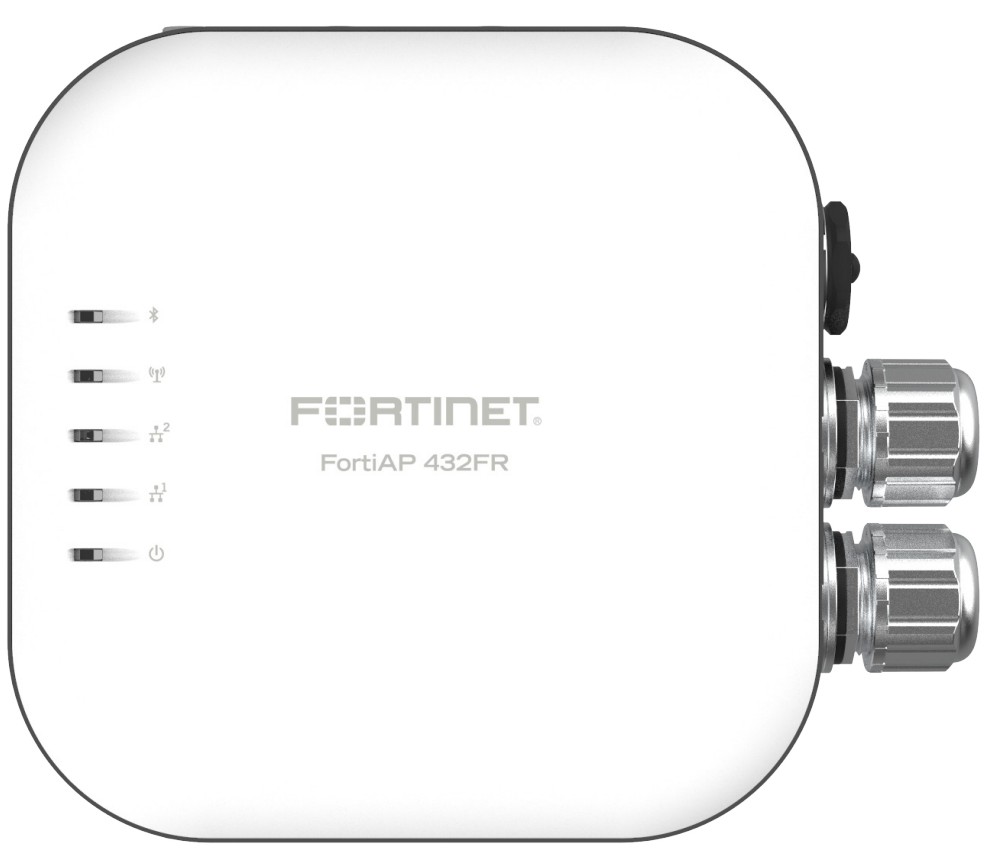

FortiAP-432FR UL Class 1, Division 2 .Outdoor Wireless FortiAP - Tri radio (1x 802.11b/g/n/ax 4x4 radio, 1 x 802.11a/n/ac/ax 4x4 Radio and 1x 802.11 a/b/g/n/ac Wave 2, 2x2), 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, BT/BLE + Zigbee, Console Port (RJ45). External Dual Band N-Type Omni Directional antennas, Integrated mounting bracket for Antenna included + Wall/Pole Mount mounti

Tilgjengelighet: Ikke på lager
Sku: FAP-432FR-E
23 624,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

FortiAP access points are managed centrally by the integrated WLAN controller of any FortiGate security appliance or through the FortiLAN Cloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments. Fortinet's Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.

This enterprise-class 802.11ax ruggedized indoor/outdoor/industrial AP provides three radios and four spacial streams. As a top-of-the-line Wi-Fi 6 access point it provides OFDMA, a 2.5 Gigabit Ethernet port, plus an additional 1 Gbps Ethernet port with PoE out. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 GHz and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications. FAP-432FR is ideal for hazardous environments such as oil rigs, industrial manufacturing, and transportation sites.

  • Unified management console simplifies operations, ensuring consistency in effective policy enforcement and compliance
  • Built-in foundation for zero-trust network access (ZTNA) and secure access service edge (SASE), allowing you the flexibility to easily deploy microbranches with the security you need at the edge of your network
  • Wireless LAN security done right: integrated Firewall, IPS, Application Control, and Web Filter protect the wireless LAN from the latest security threats
  • Protects the network from advanced wireless threats and satisfies industry compliance such as PCI DSS
Generelt
EnhetstypeTrådløst tilgangspunkt
Robust designUtendørs, innendørs
Bredde20.9 cm
Dybde20.9 cm
Høyde6.05 cm
Vekt2.325 kg
Nettverkstilknytning
ProduktformfaktorVegg/stang-monterbar
OverføringsteknologiTrådløs
Linjekodingsformat64 QAM, 256 QAM, BPSK, QPSK, 1024 QAM, OFDMA
DatakjedeprotokollEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, 2.5 Gigabit Ethernet, IEEE 802.11ac Wave 2, Bluetooth LE, IEEE 802.11ax (Wi-Fi 6)
SpredespektrummetodeOFDMA
Frekvensbånd2.4 GHz, 5 GHz
YtelseMaksimal gjennomstrømming (2,4 GHz): 1147 Mbps
Maksimal gjennomstrømming (5 GHz): 2402 Mbps
KapasitetMaks. antall konfigurerte SSID-er: 16
Trådløsklienter per Wi-Fi-radio: opptil 512
EgenskaperDFS-støtte, overspenningsvern, Wireless Intrusion Detection System (WIDS), LACP-støtte, detektering av urettmessig tilgangspunkt, Wireless Intrusion Prevention System (WIPS), 802.1x-verifisering, Advanced Cellular Coexistence (ACC), Power Sourcing Equipment (PSE), iBeacon-teknologi, LED avmodus, spektrumanalyse, Packet Sniffer Mode, 4x4 MIMO-teknologi, Media Dependent Interface (MDI), BSS Coloring, Automatic Media-Dependent Interface Crossover (MDIX), Target Wake Time (TWT)
KrypteringsalgoritmePEAP, WPA, WPA2, WEP, EAP-SIM, EAP-AKA, WPA3, EAP-FAST, EAP-TLS, EAP-TTLS, MSCHAPv2, EAP-GTC
Autentifikasjons MetodeRadio Service Set ID (SSID), MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-AKA, EAP-GTC, EAP-TLS, EAP-TTLS
Tilpassede standarderIEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11j, IEEE 802.3az, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Antenne
AntenneEkstern
Antall antenner6
AntenneforsterkningRundtstrålende
Internet of Things (IoT)
Kompatibel med Internet of Things (IoT)Ja
KommunikasjonsteknologiBluetooth Low Energy (LE), Zigbee
Ekspansjon / Tilkoplinger
Grensesnitt1 x 100/1000/2500Base-T - RJ-45
1 x 1000Base-T (PoE-utgang) - RJ-45
1 x management (RS-232) - RJ-45
1 x USB - Type A
6 x antenne - N connector
Diverse
Tilleggsutstyr inkludertStang/vegg-monteringssett
MTBF>10 år
Tilpassede standarderIC, FCC, RoHS, IP67, AS/NZS, EN 62311, EN 50385, CID2, IEC 60529, ISED, IEC/EN/UL 62368-1, RED 2014/53/EU, UKCA, C1D2, CFCC
Strømforsyning
Power Over Ethernet (PoE)-støttePoE
Strømforbruk ved drift37.9 watt
Størrelser og vekt (forsendelse)
Fraktvekt5.7 kg
Fabrikantgaranti
Service og støtteBegrenset garanti - levetid
Miljøparametere
Min. driftstemperatur-40 °C
Maks. Driftstemperatur60 °C
Driftsfuktighet10 - 90% (ikke-kondenserende)
