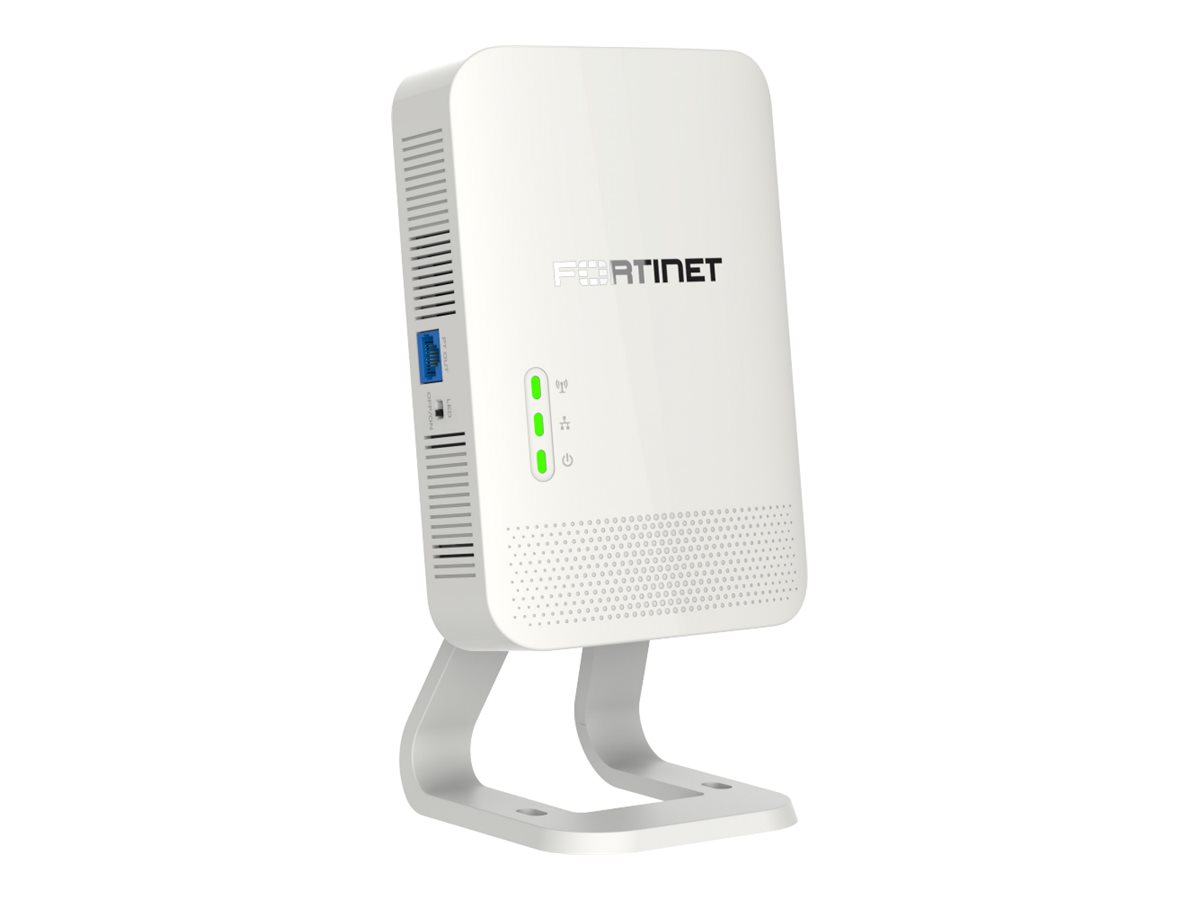

Fortinet FortiAP 23JK - Trådløst tilgangspunkt - Wi-Fi 7 - Wi-Fi 7, Bluetooth, ZigBee - 2.4 GHz, 5 GHz, 6 GHz desktop / wall mountable

Tilgjengelighet: Ikke på lager
Sku: FAP-23JK-H
6 792,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

The Fortinet FortiAP 23JK is engineered to deliver reliable and robust wireless connectivity for both business and personal environments. With a ruggedized design suitable for indoor use, this wireless access point supports up to 512 configured SSIDs and can handle up to 24 wireless clients per Wi-Fi radio. Its features incorporate 2x2 MU-MIMO technology, which maximizes connectivity efficiency and performance for multiple users simultaneously. Compatible with communication technologies including Bluetooth Low Energy and Zigbee, this model is well-suited for IoT applications and environments requiring versatile connectivity options. It operates efficiently within a temperature range from 0°C to 45°C, ensuring stability and performance across varying conditions. Equipped with enhanced security features like Wireless Intrusion Detection System (WIDS) and Wireless Intrusion Prevention System (WIPS), the FortiAP 23JK prioritizes network safety and resilience against potential threats.

Robust connectivity options

The FortiAP 23JK provides support for multiple wireless protocols including IEEE 802.11a/b/g/n/ac/ax/be, ensuring compatibility with various devices while allowing maximum throughput of 5.76 Gbps on the 5 GHz band and 2.88 Gbps on the 6 GHz band.

Enhanced security capabilities

This access point includes features like Captive Portal, MAC black/whitelist functionality, and multiple encryption algorithms such as WPA3 and WPA2 for secure user authentication and data protection.

Efficient environmental operation

Designed to operate within a temperature range from 0°C to 45°C and humidity levels from 5% to 90%, the FortiAP 23JK ensures reliable performance in various indoor conditions.

Integrated IoT support

With compatibility for IoT through Bluetooth Low Energy and Zigbee, the FortiAP 23JK is well-prepared for smart technology implementations, enhancing connectivity across devices.

Flexible deployment options

Its desktop or wall-mountable form factor allows for versatile installation scenarios, accommodating different spatial configurations to meet specific network needs.

Generelt
EnhetstypeTrådløst tilgangspunkt
Robust designInnendørs
Bredde12 cm
Dybde18 cm
Høyde4 cm
Vekt520 g
LokaliseringAustralia, Fiji, Hong Kong, New Zealand, Christmas Island, Malawi, Vanuatu
Prosessor / Minne / Lager
Installerte prosessorerARM8 Cortex-A53 1.5 GHz
RAM2 GB
Nettverkstilknytning
ProduktformfaktorDesktop / wall mountable
OverføringsteknologiTrådløs
LinjekodingsformatBPSK, QPSK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM, 4096 QAM, OFDMA
DatakjedeprotokollIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.2 LE, ZigBee
SpredespektrummetodeOFDMA
Frekvensbånd2.4 GHz, 5 GHz, 6 GHz
YtelseMaksimal gjennomstrømming (2,4 GHz): 688 Mbps
Maksimal gjennomstrømming (5 GHz): 2.88 Gbps
Maksimal gjennomstrømning (6 GHz): 5.76 Gbps
KapasitetMaks. antall konfigurerte SSID-er: opptil 24
Spatiale strømmer: 2
Trådløsklienter per Wi-Fi-radio: opptil 512
StatusindikatorerWi-Fi, WAN, strøm
Egenskaper2x2 MU-MIMO-teknologi, iBeacon-teknologi, 802.1x-verifisering, Captive Portal, MAC svart/hvit-liste, sikkerhetsspor (kompatibel med Kensington-sikkerhetslås), Cellular Coexistence Filter (CCF), LED avmodus, BSS Coloring, MU-MIMO opplink/nedlink, Target Wake Time (TWT), detektering av urettmessig tilgangspunkt, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), Packet Sniffer Mode, spektrumanalyse
KrypteringsalgoritmeWPA, WPA2, WPA3, WEP, TLS, TTLS
Autentifikasjons MetodeEAP-TLS, EAP-TTLS, MS-CHAP v.2, PEAPv0, PEAPv1, EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST, Radio Service Set ID (SSID), Extensible Authentication Protocol (EAP)
Tilpassede standarderIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.1x, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 7
Antenne
AntenneIntern
Antall antenner4
Internet of Things (IoT)
Kompatibel med Internet of Things (IoT)Ja
KommunikasjonsteknologiBluetooth Low Energy (LE), Zigbee
Ekspansjon / Tilkoplinger
Grensesnitt1 x 10Gb Ethernet - RJ-45 (WAN)
2 x 10/100/1000Base-T - RJ-45
1 x nettverk / strømforsyning - RJ-45
1 x 10/100/1000Base-T (gjennomgang, inngang) - RJ-45
1 x 10/100/1000Base-T (gjennomgang, utgang) - RJ-45
1 x RS-232 - RJ-45
Diverse
Tilleggsutstyr inkludertVeggmonteringssett
MTBF>10 år
Tilpassede standarderEU Low Voltage Directive, RoHS, UL 2043, FCC, N
Strømforsyning
Power Over Ethernet (PoE)-støttePoE
StrømenhetEkstern strømadapter / strøminjektor (ikke inkludert)
Størrelser og vekt (forsendelse)
Fraktvekt840 g
Fabrikantgaranti
Service og støtteBegrenset garanti - levetid
Miljøparametere
Min. driftstemperatur0 °C
Maks. Driftstemperatur45 °C
Driftsfuktighet5 - 90 % (ikke-kondenserende)
