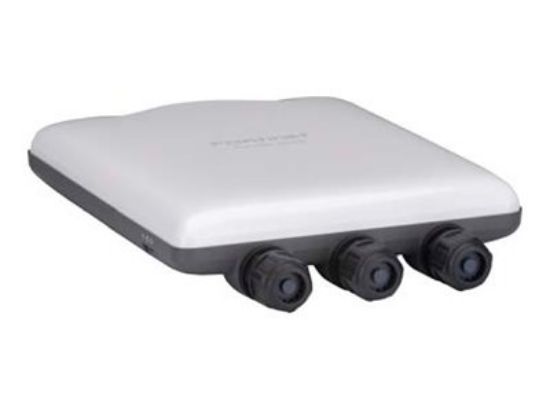

FortiAP-234G Outdoor Wireless AP - Tri radio (Wi-Fi-6E IEEE 802.11ax Tri-band 2.4/5/6GHz and dual 5G operation 2+2+2 2 streams 3 radios) [Note: 6GHz band not available in all regulatory domains], internal antennas, 2x 100/1000/2500 Base-T RJ45, BT/BLE, 1x Type A USB, Console Port (RJ45). Pole/wall mount kit included Region Code EO

Tilgjengelighet: Ikke på lager
Sku: FAP-234G-EO
14 104,00 kr eksl mva
Send til
*
*
Fraktmetode
Navn
Estimert leveringsdato
Pris
Ingen fraktalternativer
Beskrivelse

FortiAP access points are managed centrally by the integrated WLAN controller of any FortiGate security appliance or through the FortiLAN Cloud provisioning and management portal. With the integration of the wireless controller functionality into the FortiGate appliance, these APs are perfect for campus and branch deployments. Fortinet's Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from security threats.

Robust connectivity

Equipped with Bluetooth Low Energy (LE), Zigbee, and a wide range of Wi-Fi bands including 2.4 GHz, 5 GHz, and 6 GHz, this wireless access point ensures comprehensive coverage and compatibility with a multitude of devices and networks.

Enhanced security

Featuring advanced encryption algorithms such as WEP, WPA, WPA2, and WPA3, alongside multiple authentication methods including EAP-TLS, EAP-FAST, and more, the Fortinet FortiAP 234G provides a secure and reliable network environment.

High performance

With maximum throughput capabilities of 574 Mbps on the 2.4 GHz band, 1201 Mbps on the 5 GHz band, and support for Wi-Fi 6 technology, this device offers high speed and efficiency for handling high-bandwidth applications.

Innovative features

This model boasts unique features such as 2x2 MU-MIMO technology, BSS Coloring, and Target Wake Time (TWT), enhancing network efficiency, reducing interference, and improving power management for connected devices.

Durable design

Designed for both indoor and outdoor use, the Fortinet FortiAP 234G is built to withstand a variety of environmental conditions, ensuring reliable operation and longevity.

Generelt
EnhetstypeTrådløst tilgangspunkt
Robust designInnendørs, utendørs
Bredde21.6 cm
Dybde25.8 cm
Høyde5.73 cm
Vekt1.38 kg
Nettverkstilknytning
ProduktformfaktorVegg/stang-monterbar
OverføringsteknologiTrådløs
LinjekodingsformatOFDMA, BPSK, QPSK, 64 QAM, 256 QAM, 1024 QAM
DatakjedeprotokollEthernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth LE, ZigBee
SpredespektrummetodeOFDMA
Frekvensbånd2.4 GHz, 5 GHz, 6 GHz
YtelseMaksimal gjennomstrømming (2,4 GHz): 574 Mbps
Maksimal gjennomstrømming (5 GHz): 1201 Mbps
Maksimal gjennomstrømning (6 GHz): 2401 Mbps
KapasitetMaks. antall konfigurerte SSID-er: 24
Trådløsklienter per Wi-Fi-radio: opptil 512
Spatiale strømmer: 2
StatusindikatorerBluetooth Low Energy (BLE), Wi-Fi, LAN, strøm
Egenskaper2x2 MU-MIMO-teknologi, auto-uplink (auto MDI/MDI-X), 802.1x-verifisering, Captive Portal, MAC svart/hvit-liste, sikkerhetsspor (kompatibel med Kensington-sikkerhetslås), Cellular Coexistence Filter (CCF), LED avmodus, BSS Coloring, Target Wake Time (TWT), svindler AP-deteksjon, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), Packet Sniffer Mode, spektrumanalyse, MU-MIMO opplink/nedlink, iBeacon-teknologi, nullstillingsknapp, Hit-less PoE Failover
KrypteringsalgoritmeWPA, WPA2, WPA3, WEP
Autentifikasjons MetodeEAP-TLS, EAP-TTLS, MS-CHAP v.2, Extensible Authentication Protocol (EAP), PEAPv1, EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST, Radio Service Set ID (SSID)
Tilpassede standarderWi-Fi CERTIFIED 6E, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.3bt, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz
Antenne
AntenneIntern
Antall antenner10
AntenneforsterkningRundtstrålende
Internet of Things (IoT)
Kompatibel med Internet of Things (IoT)Ja
KommunikasjonsteknologiBluetooth Low Energy (LE), Zigbee
Ekspansjon / Tilkoplinger
Grensesnitt1 x 100/1000/2500Base-T (PoE++) - RJ-45
1 x 10/100/1000Base-T (PoE ++) - RJ-45
1 x konsoll - RJ-45
1 x USB - Type A
Diverse
Tilleggsutstyr inkludertStang/vegg-monteringssett
MTBF>10 år
Tilpassede standarderEU Low Voltage Directive, RoHS, UL 2043, FCC, IP67
Strømforsyning
Power Over Ethernet (PoE)-støttePoE++
StrømenhetStrøminjektor
Påkrevd nettspenningAC 100-240 V
Størrelser og vekt (forsendelse)
Fraktvekt3.7 kg
Fabrikantgaranti
Service og støtteBegrenset garanti - levetid
Miljøparametere
Min. driftstemperatur-40 °C
Maks. Driftstemperatur60 °C
Driftsfuktighet5 - 90 % (ikke-kondenserende)
